GST90A19-P1M

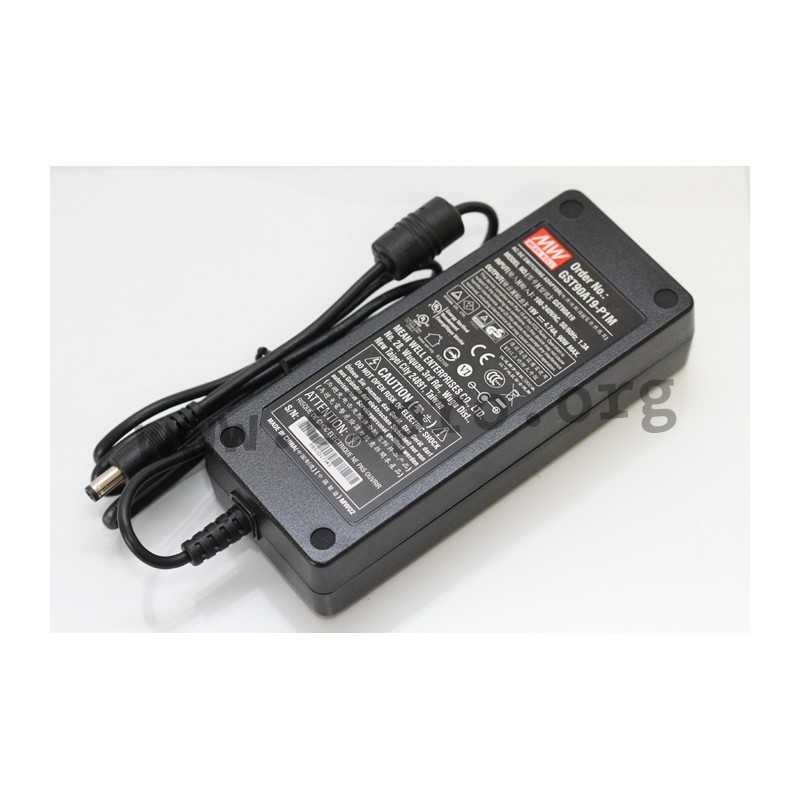

Mean Well desktop power supply series GST90A

Desktop switching power supplies in a plastic housing with 90W, a universal input, energy efficiency Level VI, insulation class I and a low no-load power. These devices have a built-in active PFC function and are protected against overload, short circuit, overtemperature as well as overvoltage. They have an LED indicator for power on and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GST90A12-P1M, GST90A15-P1M, GST90A19-P1M, GST90A24-P1M and GST90A48-P1M.

  • single output
  • output: 80 to 90W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • no-load power: <0,15W
  • input plug: C14 (EN60320-1)

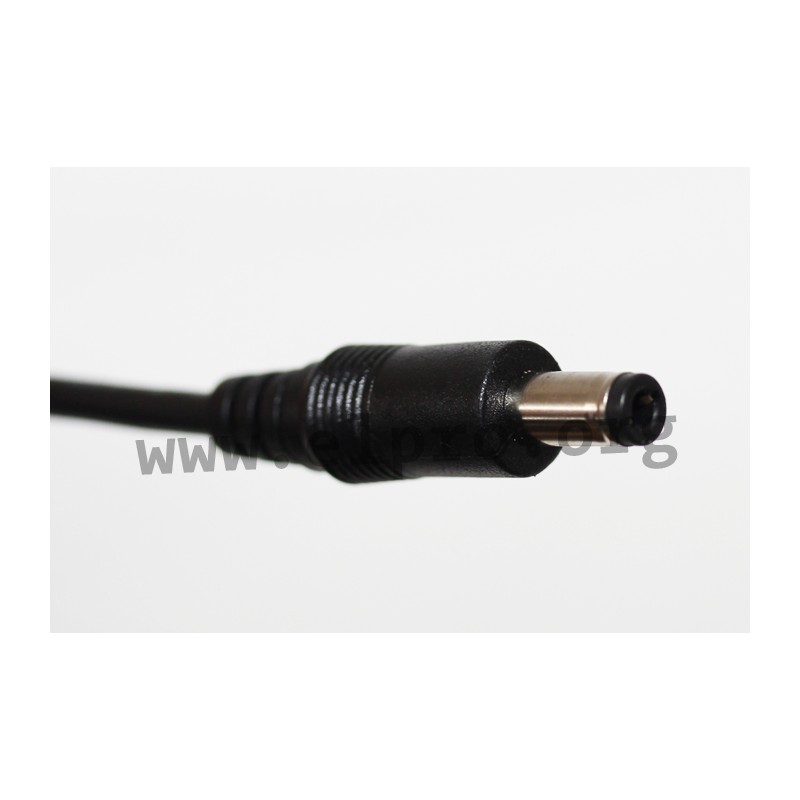

  • output plug: 2,5x5,5mm
  • operating temperature: -30 to +70°C
  • weight: 450g

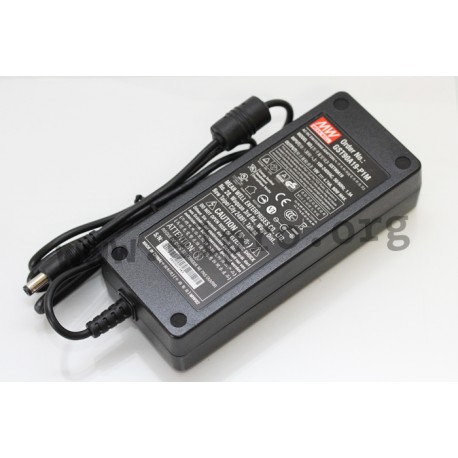

Mean Well GST90A series

GST90A19-P1M

104426 GST90A19-P1M GST90A19-P1M 4711287429229 Mean Well desktop power supply series&nbsp;GST90A. Desktop switching power supplies in a plastic&nbsp;housing with 90W, a universal input,&nbsp;energy efficiency Level VI,&nbsp;insulation class I and a low no-load power. These devices have a&nbsp;built-in active PFC function and are&nbsp;protected against overload, short circuit, overtemperature as well as&nbsp;overvoltage. They have an LED indicator for power on and&nbsp;comply with&nbsp;EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GST90A12-P1M, GST90A15-P1M, GST90A19-P1M, GST90A24-P1M and GST90A48-P1M. single output output: 80 to 90W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A no-load power: &lt;0,15W input plug: C14 (EN60320-1) output plug: 2,5x5,5mm operating temperature: -30 to +70&deg;C weight: 450g

Specifications

manufacturer
Manufacturer's name GST90A19-P1M
GTIN 4711287429229
Output voltage [V] 19
Efficiency [%] 90
Output current range [A] 0...4,74
Output voltage tolerance: [%] 4
Output power [W] 90
Ripple [mVp-p] 180
Data Sheet

Unit price

22,49 €

Volume discounts

Quantity Unit price
50 + 21,09 €

Stock: 152
Next incoming goods:
CW 12/2025
540 units

Further delivery:
CW 16/2025
