GST40A12-P1J

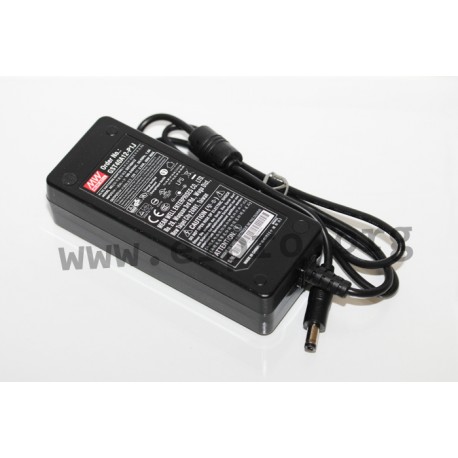

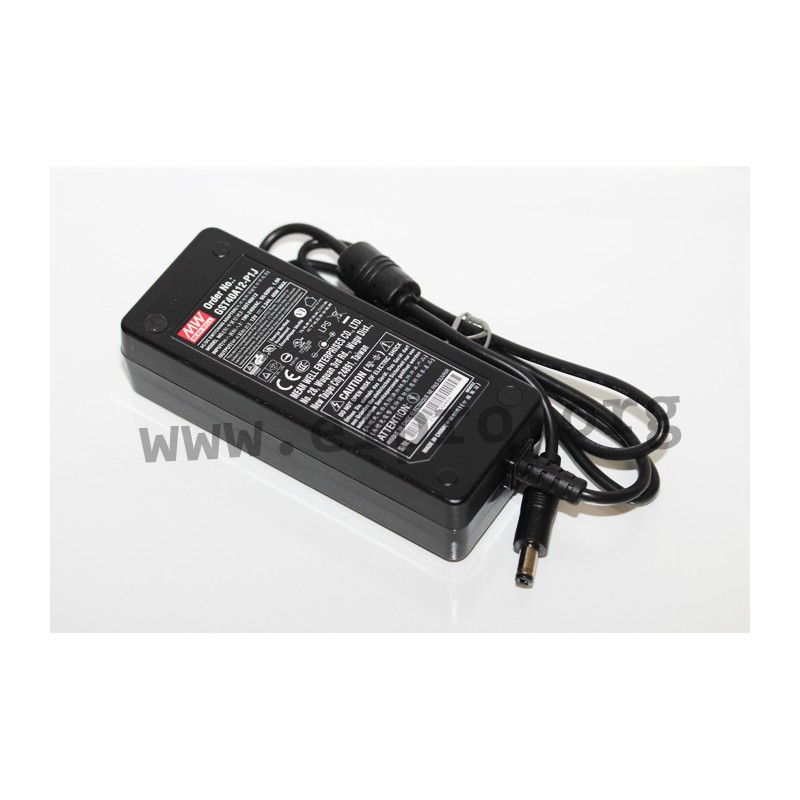

Mean Well desktop power supply series GST40A

Desktop switching power supplies with 40W, a universal input, insulation class I, energy efficiency Level VI and a low no-load power. These devices are protected against overload, short circuit as well as overvoltage and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST40A05-P1J, GST40A07-P1J, GST40A09-P1J, GST40A12-P1J, GST40A15-P1J, GST40A18-P1J, GST40A24-P1J and GST40A48-P1J.

  • single output
  • output: 25 to 40W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 65A
  • no-load power: <0,075W
  • input plug: C14 (EN60320-1)
  • output plug: 2,1x5,5
  • operating temperature: -30 to +70°C
  • weight: 280g
GST40A12-P1J

GST40A12-P1J

104411 GST40A12-P1J GST40A12-P1J 4711287429076 Mean Well desktop power supply series GST40A. Desktop switching power supplies with 40W, a universal input, insulation class I, energy efficiency Level VI and a low no-load power. These devices are&nbsp;protected against overload, short circuit as well as overvoltage and comply with&nbsp;EN62368-1 as well as EN55032 class&nbsp;B. We offer the following types of this Mean Well series:&nbsp;GST40A05-P1J, GST40A07-P1J, GST40A09-P1J, GST40A12-P1J, GST40A15-P1J, GST40A18-P1J, GST40A24-P1J and GST40A48-P1J. single output output: 25 to 40W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 65A no-load power: &lt;0,075W input plug: C14 (EN60320-1) output plug: 2,1x5,5 operating temperature: -30 to +70&deg;C weight: 280g

Specifications

manufacturer
Manufacturer's name GST40A12-P1J
GTIN 4711287429076
Output voltage [V] 12
Efficiency [%] 89,5
Output current range [A] 0...3,34
Output voltage tolerance: [%] 3
Output power [W] 40
Ripple [mVp-p] 150
Data Sheet

Unit price

13,29 €

Volume discounts

Quantity Unit price
50 + 12,39 €

Stock: 1911
Next incoming goods:
CW 12/2025
1000 units

Further delivery:
CW 16/2025
