GST36B24-P1J

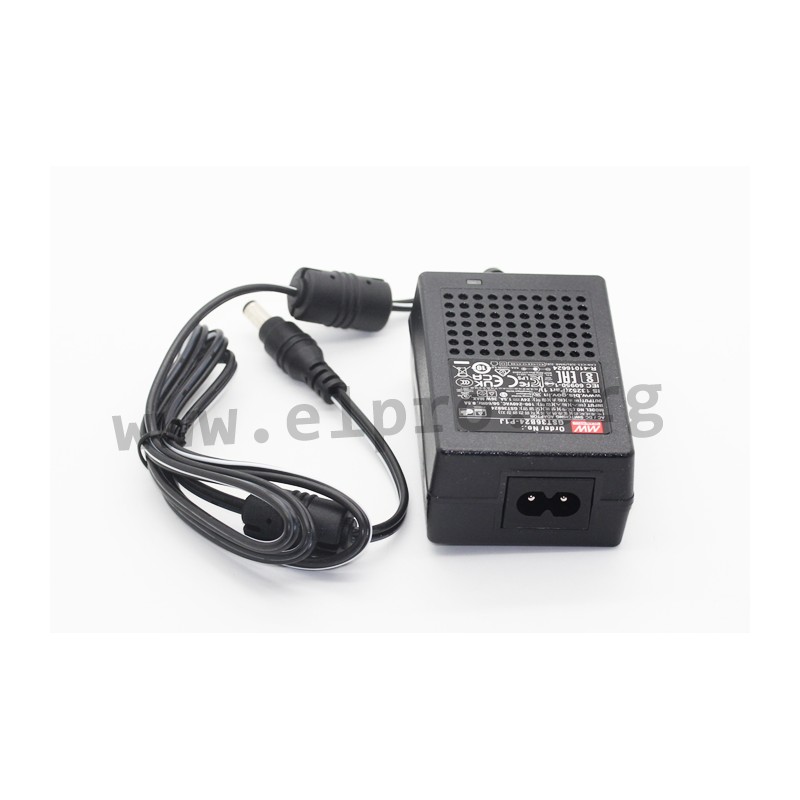

Mean Well desktop power supply series GST36B

Desktop switching power supplies with 36W, a universal input, a low no-load power consumption and protection class II. These devices are LPS certified and protected against overload, short circuit as well as overvoltage. They comply with UL62368-1, EN62368-1, IEC62368-1, EN55032 class B as well as energy efficiency Level VI. We offer the following types of this Mean Well series: GST36B05-P1J, GST36B09-P1J, GST36B12-P1J, GST36B24-P1J and GST36B48-P1J.

  • single output
  • output: 21,5 to 36W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • input current: 0,45A
  • ínput plug: C8
  • output plug: 2,1x5,5mm
  • cable length: 100cm
  • withstand voltage I/P-O/P: 4242V AC
  • operating temperature: -30 to +70°C
  • dimensions: 79x54x33mm
  • weight: 203g
GST36B24-P1J, Mean Well desktop switching power supplies, 36W, energy efficiency Level VI, GST36B series

GST36B24-P1J

237660 GST36B24-P1J GST36B24-P1J 4711287429687 Mean Well desktop power supply series GST36B. Desktop switching power supplies with 36W, a universal input, a low no-load power consumption and protection class II. These devices are LPS certified and protected against overload, short circuit as well as overvoltage. They comply with UL62368-1, EN62368-1, IEC62368-1, EN55032 class B as well as energy efficiency Level VI. We offer the following types of this Mean Well series: GST36B05-P1J, GST36B09-P1J, GST36B12-P1J, GST36B24-P1J and GST36B48-P1J. single output output: 21,5 to 36W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 70A input current: 0,45A ínput plug: C8 output plug: 2,1x5,5mm cable length: 100cm withstand voltage I/P-O/P: 4242V AC operating temperature: -30 to +70°C dimensions: 79x54x33mm weight: 203g

Specifications

manufacturer
Manufacturer's name GST36B24-P1J
GTIN 4711287429687
Output voltage [V] 24
Efficiency [%] 88,5
Output current [A] 1,5
Output voltage tolerance: [%] ±2
Output power [W] 36
Ripple [mVp-p] 150
Data Sheet

Unit price

12,59 €

Volume discounts

Quantity Unit price
50 + 11,69 €

Stock: 101
Further delivery:
CW 16/2025
