GST360B48-C6P

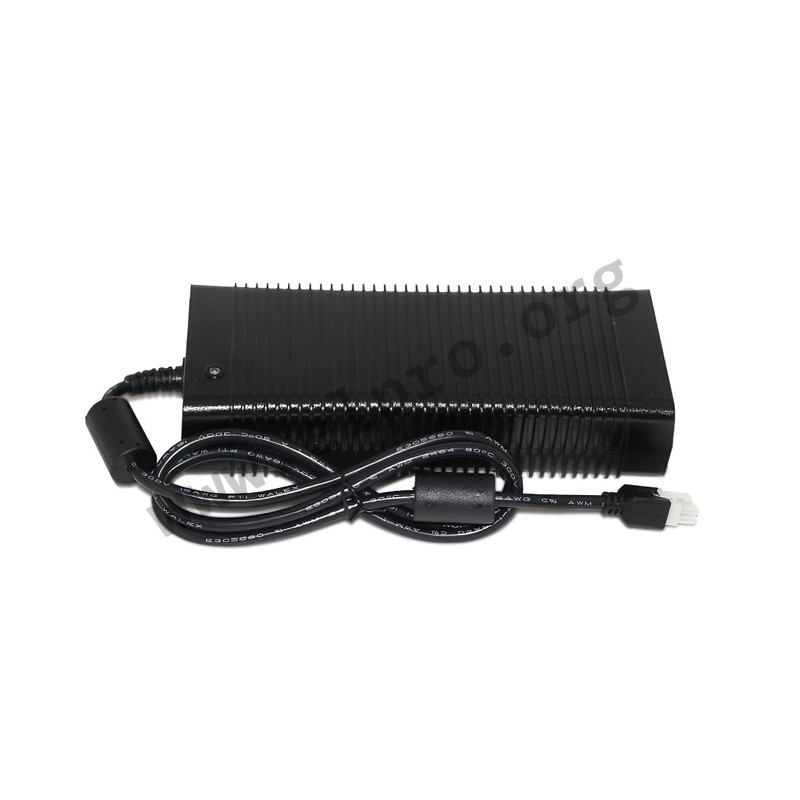

Mean Well desktop power supply series GST360B

Desktop switching power supplies in a plastic housing with 360W, protection class II, a unversal input and energy efficiency Level VI. These devices have a built-in active PFC function and are protected against overload, overtemperature as well as overvoltage. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: GST360B12-C8P, GST360B15-C8P, GST360B24-C6P, GST360B36-C6P, GST360B48-C6P and GST360B55-C6P.

  • single output
  • output: 330 to 360W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 120A
  • no-load power: <0,5W
  • cable length: 100cm
  • input plug: IEC-320 C18
  • output plug: 6- (GST360B_-C6P) or 8-pole (GST360B_-C8P) connector
  • operating temperature: -30 to +70°C
  • weight: 1400g
GST360B48-C6P, Mean Well external switching power supplies, 360W

GST360B48-C6P

241257 GST360B48-C6P GST360B48-C6P 4711287484815 Mean Well desktop power supply series GST360B. Desktop switching power supplies in a plastic housing with 360W, protection class II, a unversal input and energy efficiency Level VI. These devices have a built-in active PFC function and are protected against overload, overtemperature as well as overvoltage. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: GST360B12-C8P, GST360B15-C8P, GST360B24-C6P, GST360B36-C6P, GST360B48-C6P and GST360B55-C6P. single output output: 330 to 360W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 120A no-load power: &lt;0,5W cable length: 100cm input plug: IEC-320 C18 output plug: 6- (GST360B_-C6P) or 8-pole (GST360B_-C8P) connector operating temperature: -30 to +70°C weight: 1400g

Specifications

manufacturer
Manufacturer's name GST360B48-C6P
GTIN 4711287484815
Output voltage [V] 48
Efficiency [%] 95
Output current range [A] 0...7,5
Output voltage tolerance: [%] 2
Output power [W] 360
Ripple [mVp-p] 200
Data Sheet

Unit price

84,89 €

Volume discounts

Quantity Unit price
50 + 82,09 €

Stock: 42
Further delivery:
CW 12/2025
