GST360A36-C6P

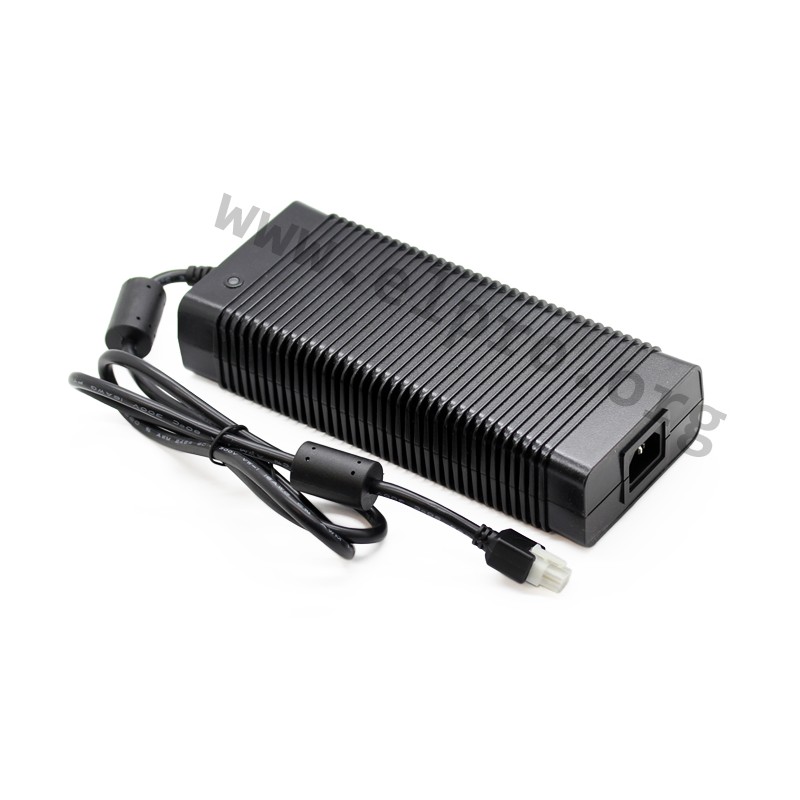

Mean Well desktop power supply series GST360A

Desktop switching power supplies in a plastic housing with 360W, protection class I, energy efficiency Level VI and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: GST360A12-C8P, GST360A15-C8P, GST360A24-C6P, GST360A36-C6P, GST360A48-C6P and GST360A55-C6P.

  • single output
  • output: 330 to 360W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 120A
  • no-load power: <0,5W
  • cable length: 100cm
  • input plug: IEC-320 C14
  • output plug: 6- (GST360A_-C6P) or 8-pole (GST360A_-C8P) connector
  • operating temperature: -30 to +70°C
  • weight: 1400g

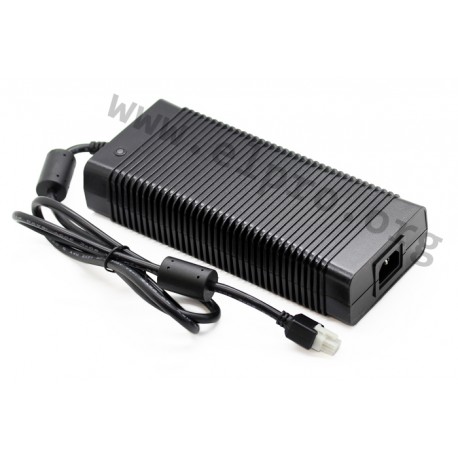

GST360A36-C6P, Mean Well external switching power supplies, 360W, energy efficiency Level VI, GST360A series

GST360A36-C6P

241250 GST360A36-C6P GST360A36-C6P 4711287448022 Mean Well desktop power supply series GST360A. Desktop switching power supplies in a plastic housing with 360W, protection class I, energy efficiency Level VI and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: GST360A12-C8P, GST360A15-C8P, GST360A24-C6P, GST360A36-C6P, GST360A48-C6P and GST360A55-C6P. single output output: 330 to 360W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 120A no-load power: &lt;0,5W cable length: 100cm input plug: IEC-320 C14 output plug: 6- (GST360A_-C6P) or 8-pole (GST360A_-C8P) connector operating temperature: -30 to +70°C weight: 1400g

Specifications

manufacturer
Manufacturer's name GST360A36-C6P
GTIN 4711287448022
Output voltage [V] 36
Efficiency [%] 94
Output current range [A] 0...10
Output voltage tolerance: [%] 2
Output power [W] 360
Ripple [mVp-p] 200
Data Sheet

Unit price

88,79 €

Volume discounts

Quantity Unit price
50 + 86,89 €

Stock: 19
Further delivery:
CW 12/2025
