GST280A15-C6P

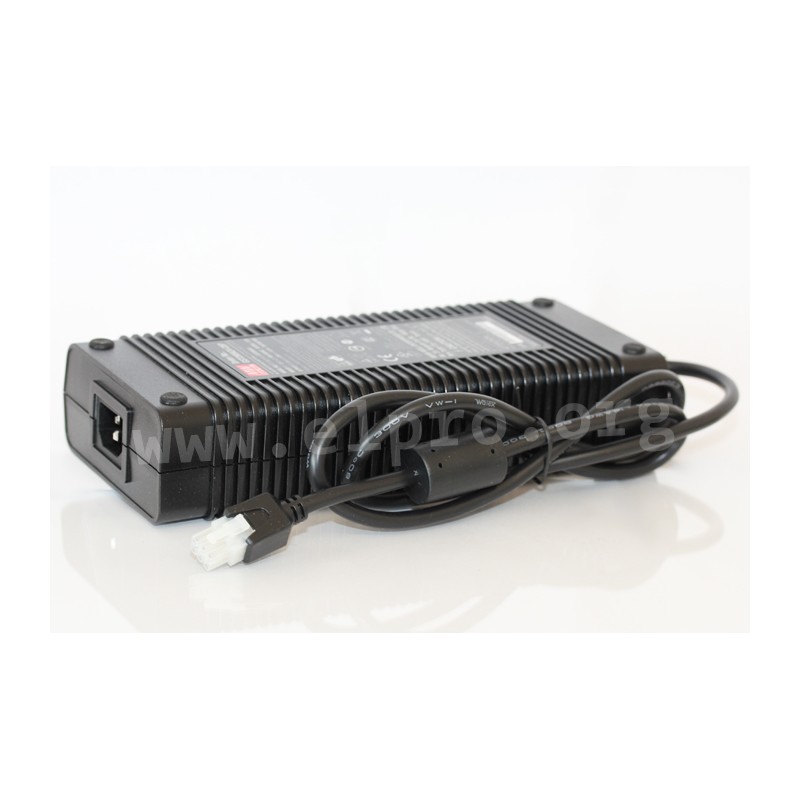

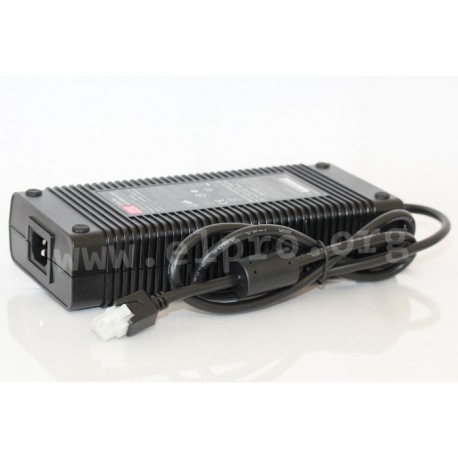

Mean Well desktop power supply series GST280A

Desktop switching power supplies in a plastic housing with 280W, a universal input, insulation class I, energy efficiency Level VI, an LED indicator for power on and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a high reliability and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GST280A12-C6P, GST280A15-C6P, GST280A20-C6P, GST280A24-C6P and GST280A48-C6P.

  • single output
  • output: 252 to 280,32W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 120A
  • no-load power: <0,5W
  • cable length: 1m
  • input plug: C14 (EN60320-1)
  • output plug: C6P 6-pole
  • operating temperature: -30 to +70°C
  • weight: 1250g
Mean Well GST280A series

GST280A15-C6P

104445 GST280A15-C6P GST280A15-C6P 4711287429434 Mean Well desktop power supply series GST280A. Desktop switching power&nbsp;supplies in a plastic housing with 280W, a universal input, insulation class I, energy efficiency Level VI, an LED indicator for power on and a low no-load power (&lt;0,5W). These devices have a&nbsp;built-in active PFC function and are protected against overload, overtemperature, short circuit as well as&nbsp;overvoltage. They have a high&nbsp;reliability and comply with&nbsp;EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3.&nbsp;We offer the following types of this Mean Well series:&nbsp;GST280A12-C6P, GST280A15-C6P, GST280A20-C6P, GST280A24-C6P and GST280A48-C6P. single output output: 252 to 280,32W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 120A no-load power: &lt;0,5W cable length: 1m input plug: C14 (EN60320-1) output plug: C6P 6-pole operating temperature: -30 to +70&deg;C weight: 1250g

Specifications

manufacturer
Manufacturer's name GST280A15-C6P
GTIN 4711287429434
Output voltage [V] 15
Efficiency [%] 90
Output current range [A] 0...17
Output voltage tolerance: [%] 5
Output power [W] 255
Ripple [mVp-p] 120
Data Sheet

Unit price

74,09 €

Volume discounts

Quantity Unit price
50 + 72,49 €

Stock: 7
Further delivery:
CW 16/2025
