GST220A12-R7B

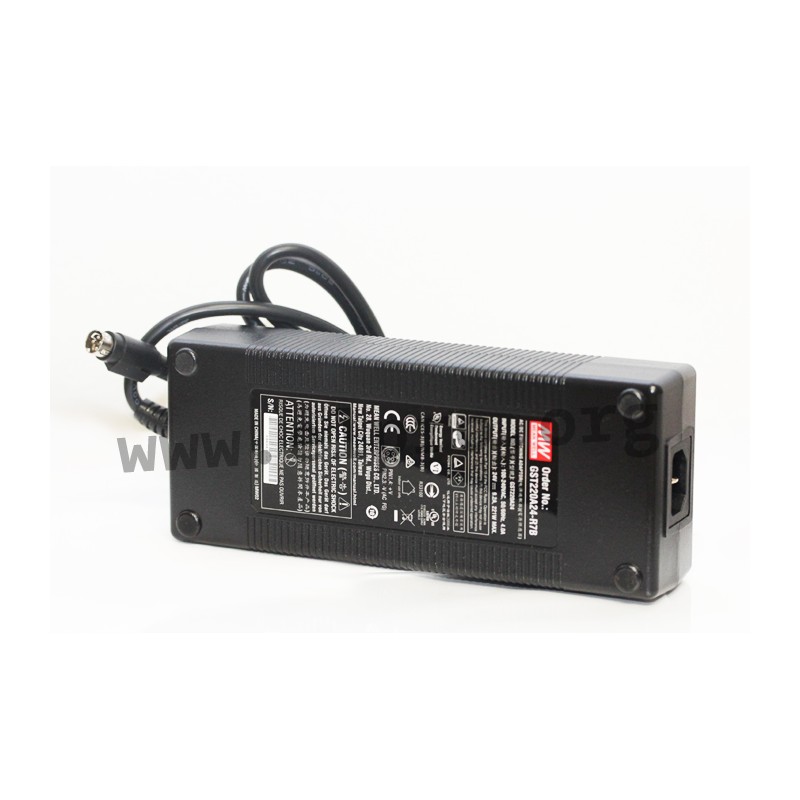

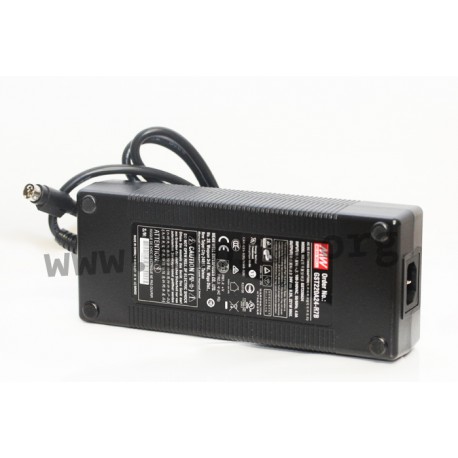

Mean Well desktop power supply series GST220A

Switching power supplies with 220W, a universal input and insulation class I. These devices have a very low no load power consumption and are protected against short circuit, overload and overvoltage. They comply with Energy Efficiency Level VI (DOE) as well as EN62368-1 and EN55032 class B. We offer the following types of this Mean Well series: GST220A12-R7B, GST220A15-R7B, GST220A20-R7B, GST220A24-R7B, GST220A36-R7B and GST220A48-R7B.

  • single output
  • output: 180 to 221W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 120A
  • maximal no-load power consumption: <0,15W
  • operating temperature: -30 bis +70°C
  • cable length: 1m
  • input plug: C14 (EN60320-1)
  • outut plug: R7B 4-pole
  • weight: 1100g
Mean Well GST220A series

GST220A12-R7B

104439 GST220A12-R7B GST220A12-R7B 4711287429366 Mean Well desktop power supply series GST220A. Switching power supplies with 220W, a universal input and insulation class I. These devices have a very low no load power consumption and are protected against short circuit, overload and overvoltage. They comply with Energy Efficiency Level VI (DOE) as well as EN62368-1 and EN55032 class B. We offer the following types of this Mean Well series:&nbsp;GST220A12-R7B,&nbsp;GST220A15-R7B,&nbsp;GST220A20-R7B,&nbsp;GST220A24-R7B,&nbsp;GST220A36-R7B and&nbsp;GST220A48-R7B. single output output: 180 to 221W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 120A maximal no-load power consumption: &lt;0,15W operating temperature: -30 bis +70&deg;C cable length: 1m input plug: C14 (EN60320-1) outut plug: R7B 4-pole weight: 1100g

Specifications

manufacturer
Manufacturer's name GST220A12-R7B
GTIN 4711287429366
Output voltage [V] 12
Efficiency [%] 90
Output current range [A] 0...15
Output voltage tolerance: [%] 5
Output power [W] 180
Ripple [mVp-p] 80
Data Sheet

Unit price

53,39 €

Volume discounts

Quantity Unit price
50 + 51,99 €

Stock: 384
Further delivery:
CW 12/2025
