GST18B24-P1J

Mean Well desktop power supply series GST18B

Desktop switching power supplies in a plastic case (UL94V-0) with 18W, a universal input, protection class II, energy efficiency Level VI and an LED status display. These devices have a low no-load power consumption (<0,075W) as well as an LPS certification. They comply with UL62368-1, EN62368-1, EN61000-3-3, EN55032 class B as well as EN61000-3-2 class A and are protected against short circuit, overvoltage as well as overload. We offer the following tpyes of this Mean Well series: GST18B05-P1J, GST18B07-P1J, GST18B09-P1J, GST18B12-P1J, GST18B15-P1J, GST18B18-P1J, GST18B24-P1J, GST18B28-P1J and GST18B48-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • no-load power consumption: <0,075W
  • leakage current: 0,25mA
  • inlet: IEC320-C8
  • withstand voltage I/P-O/P: 4242V DC
  • operating temperature: -30 to +70°C
  • weight: 191,5g
  • dimensions: 79x54x33mm

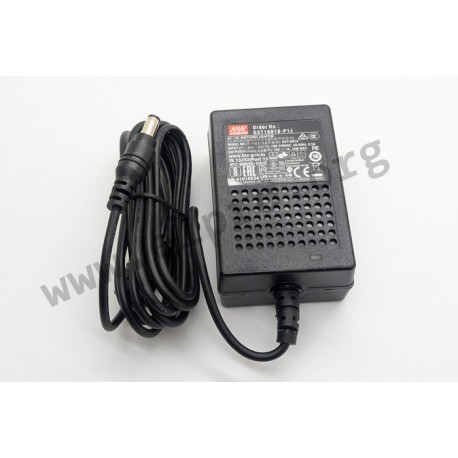

GST18B24-P1J, Mean Well external switching power supplies, 18W, energy efficiency Level VI, GST18B series

GST18B24-P1J

237656 GST18B24-P1J GST18B24-P1J 4711287429533 Mean Well desktop power supply series GST18B. Desktop switching power supplies in a plastic case (UL94V-0) with 18W, a universal input, protection class II, energy efficiency Level VI and an LED status display. These devices have a low no-load power consumption (&lt;0,075W) as well as an LPS certification. They comply with UL62368-1, EN62368-1, EN61000-3-3, EN55032 class B as well as EN61000-3-2 class A and are protected against short circuit, overvoltage as well as overload. We offer the following tpyes of this Mean Well series: GST18B05-P1J, GST18B07-P1J, GST18B09-P1J, GST18B12-P1J, GST18B15-P1J, GST18B18-P1J, GST18B24-P1J, GST18B28-P1J and GST18B48-P1J. single output output: 15 to 18W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 65A no-load power consumption: &lt;0,075W leakage current: 0,25mA inlet: IEC320-C8 withstand voltage I/P-O/P: 4242V DC operating temperature: -30 to +70°C weight: 191,5g dimensions: 79x54x33mm

Specifications

manufacturer
Manufacturer's name GST18B24-P1J
GTIN 4711287429533
Output voltage [V] 24
Efficiency [%] 85
Output current [A] 0,75
Output voltage tolerance: [%] ±2
Output power [W] 18
Ripple [mVp-p] 150
Data Sheet

Unit price

12,09 €

Volume discounts

Quantity Unit price
50 + 11,39 €

Stock: 20
Further delivery:
CW 16/2025
