GST18A18-P1J

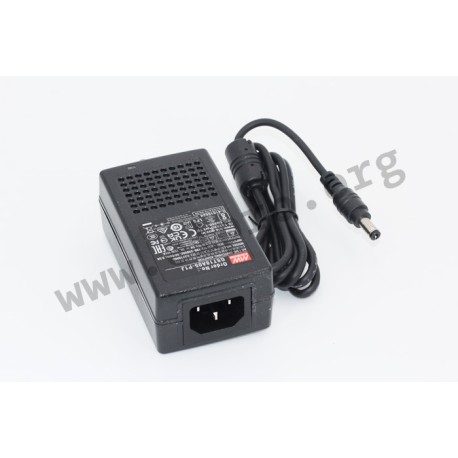

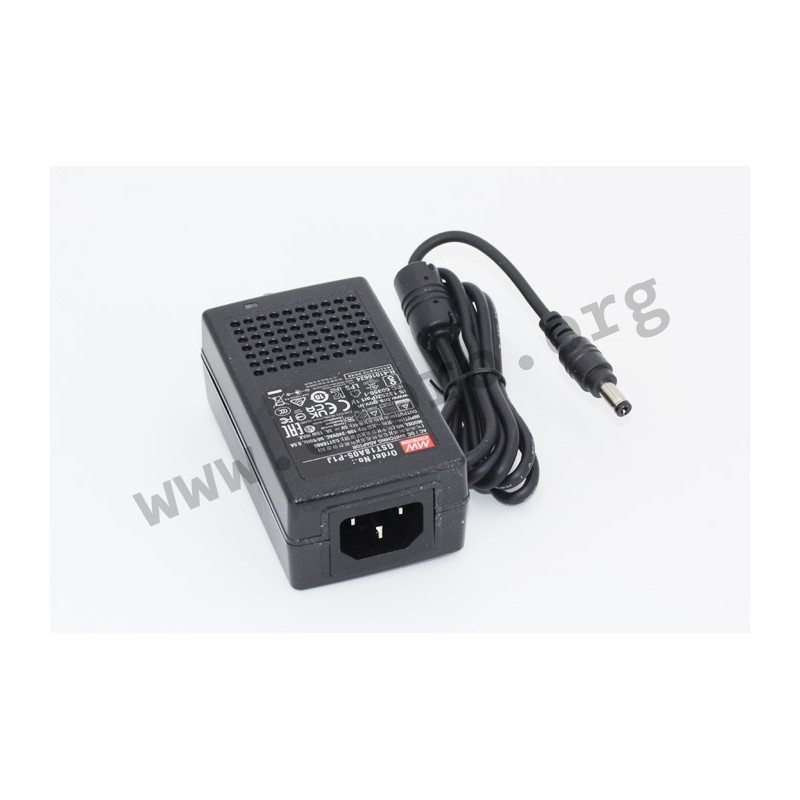

Mean Well desktop power supply series GST18A

External switching power supplies in a plastic housing (UL94V-0) with 18W, a universal input, a 3 pole AC inlet in compliance with IEC320-C14, protection class I and a low no-load power (<0,075W). These devices have an LPS certification and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST18A05-P1J, GST18A07-P1J, GST18A09-P1J, GST18A12-P1J, GST18A15-P1J, GST18A18-P1J, GST18A24-P1J, GST18A28-P1J and GST18A48-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • operating temperature: -30 to +70°C
  • dimensions: 93x54x36mm
  • weight: 209g
GST18A18-P1J, Mean Well external switching power supplies, 18W, energy efficiency Level VI, GST18A series

GST18A18-P1J

246192 GST18A18-P1J GST18A18-P1J 4711287428918 Mean Well desktop power supply series GST18A. External switching power supplies in a plastic housing (UL94V-0) with 18W, a universal input, a 3 pole AC inlet in compliance with IEC320-C14, protection class I and a low no-load power (&lt;0,075W). These devices have an LPS certification and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST18A05-P1J, GST18A07-P1J, GST18A09-P1J, GST18A12-P1J, GST18A15-P1J, GST18A18-P1J, GST18A24-P1J, GST18A28-P1J and GST18A48-P1J. single output output: 15 to 18W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 65A leakage current: &lt;0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 4242V DC withstand voltage I/P-FG: 2121V DC operating temperature: -30 to +70°C dimensions: 93x54x36mm weight: 209g

Specifications

manufacturer
Manufacturer's name GST18A18-P1J
GTIN 4711287428918
Output voltage [V] 18
Efficiency [%] 88
Output current [A] 1
Output voltage tolerance: [%] ±3
Output power [W] 18
Ripple [mVp-p] 150
Data Sheet

Unit price

12,19 €

Stock: 0
Further delivery:
CW 12/2025
