GST120A48-R7B

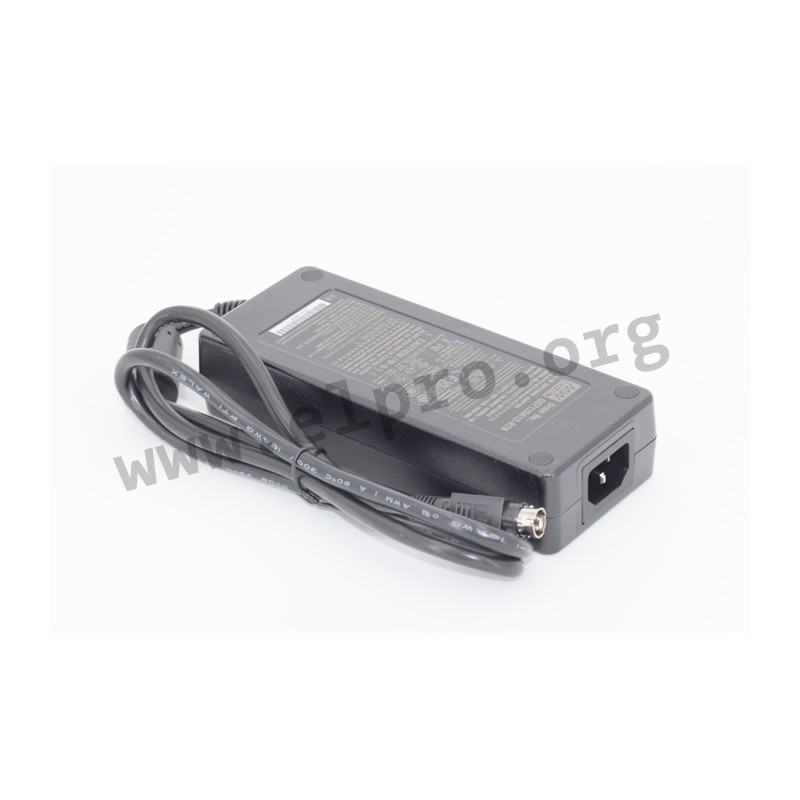

Mean Well desktop power supply series GST120A

Desktop switching power supplies in a plastic housing with 120W, a universal input, an LED indicator for power on, insulation class I, energy efficiency Level VI and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have an efficiency of up to 91% and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GST120A12-R7B, GST120A15-R7B, GST120A20-R7B, GST120A20-P1M, GST120A24-P1M, GST120A48-R7B and GST120A48-P1M.

  • single output
  • output: 102 to 120W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • no-load power: <0,15W
  • input plug: C14 (EN60320-1)
  • output plug GST120_-P1M: 2,5x5,5mm connector
  • output plug GST120_-R7B: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 620g

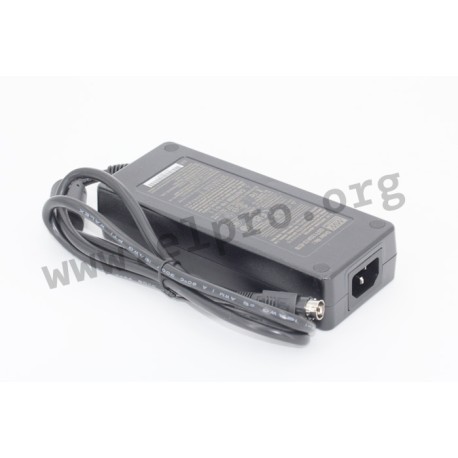

GST120A48-R7B, Mean Well external switching power supplies, 120W, Energy Efficiency Level VI, GST120A series

GST120A48-R7B

123974 GST120A48-R7B GST120A48-R7B 4711287429298 Mean Well desktop power supply series GST120A. Desktop switching power supplies in a plastic housing with 120W, a universal input, an LED indicator for power on, insulation class I, energy efficiency Level VI and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have an efficiency of up to 91% and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GST120A12-R7B, GST120A15-R7B, GST120A20-R7B, GST120A20-P1M, GST120A24-P1M, GST120A48-R7B and GST120A48-P1M. single output output: 102 to 120W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A no-load power: &lt;0,15W input plug: C14 (EN60320-1) output plug GST120_-P1M: 2,5x5,5mm connector output plug GST120_-R7B: R7B 4-pole operating temperature: -30 to +70°C weight: 620g

Specifications

manufacturer
Manufacturer's name GST120A48-R7B
GTIN 4711287429298
Output voltage [V] 48
Efficiency [%] 91
Output current range [A] 0...2,5
Output voltage tolerance: [%] 2,5
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet

Unit price

35,59 €

Volume discounts

Quantity Unit price
50 + 34,39 €

Stock: 40
Further delivery:
CW 12/2025
