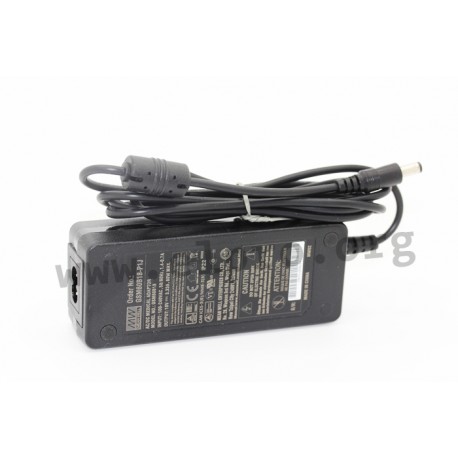

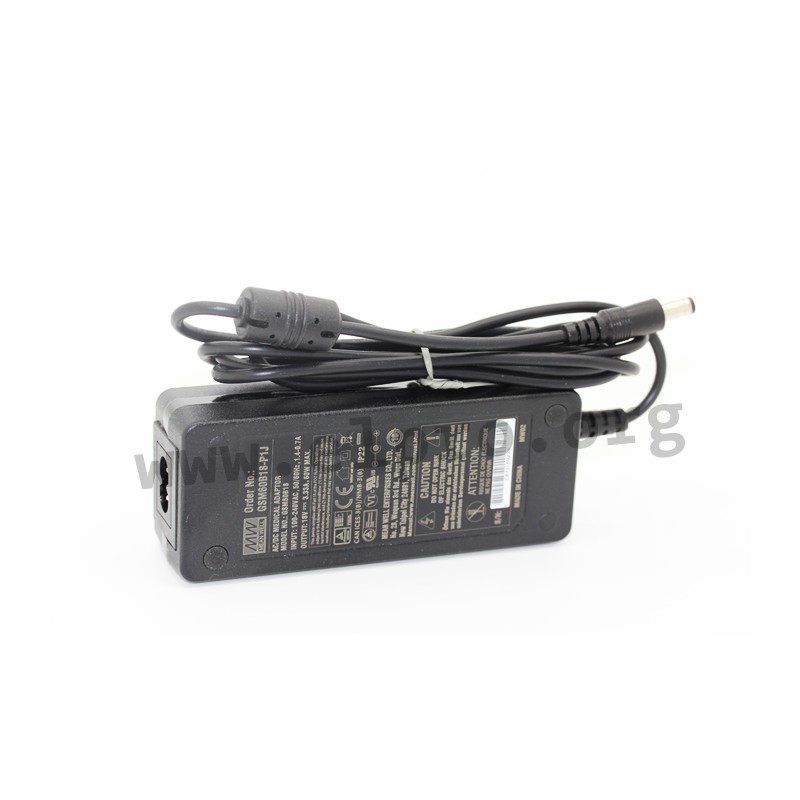

GSM60B18-P1J

Mean Well desktop power supply series GSM60B

Desktop switching power supplies with 60W, insulation class II, energy efficiency Level V/VI, an LED indicator for power on, a low no-load power (<0,1W) and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 95.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM60B05-P1J, GSM60B07-P1J, GSM60B09-P1J, GSM60B12-P1J, GSM60B15-P1J, GSM60B18-P1J, GSM60B24-P1J and GSM60B48-P1J.

  • single output
  • output: 30 to 60W
  • input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 65A
  • input plug: C8 (IEC320-C8)
  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +60°C
  • weight: 320g
GSM60B18-P1J

GSM60B18-P1J

108670 GSM60B18-P1J GSM60B18-P1J 4711287431147 Mean Well desktop power supply series GSM60B. Desktop switching power supplies with 60W, insulation class II, energy efficiency Level V/VI, an LED indicator for power on, a low no-load power (&lt;0,1W) and a universal input. These devices are suitable for medical&nbsp;technology applications (2xMOPP) and are&nbsp;protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 95.000 hours and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B,&nbsp;EN61000-3-2 as well as EN61000-3-3. We offer the&nbsp;following types of this Mean Well series:&nbsp;GSM60B05-P1J, GSM60B07-P1J, GSM60B09-P1J, GSM60B12-P1J, GSM60B15-P1J, GSM60B18-P1J, GSM60B24-P1J and GSM60B48-P1J. single output output: 30 to 60W input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 65A input plug: C8 (IEC320-C8) output plug: 2,1x5,5mm operating temperature: -30 to +60&deg;C weight: 320g

Specifications

manufacturer
Manufacturer's name GSM60B18-P1J
GTIN 4711287431147
Output voltage [V] 18
Efficiency [%] 89
Output current range [A] 0...3,33
Output voltage tolerance: [%] 3
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

19,99 €

Volume discounts

Quantity Unit price
50 + 18,59 €

Stock: 73
Further delivery:
CW 18/2025
