GSM60A07-P1J

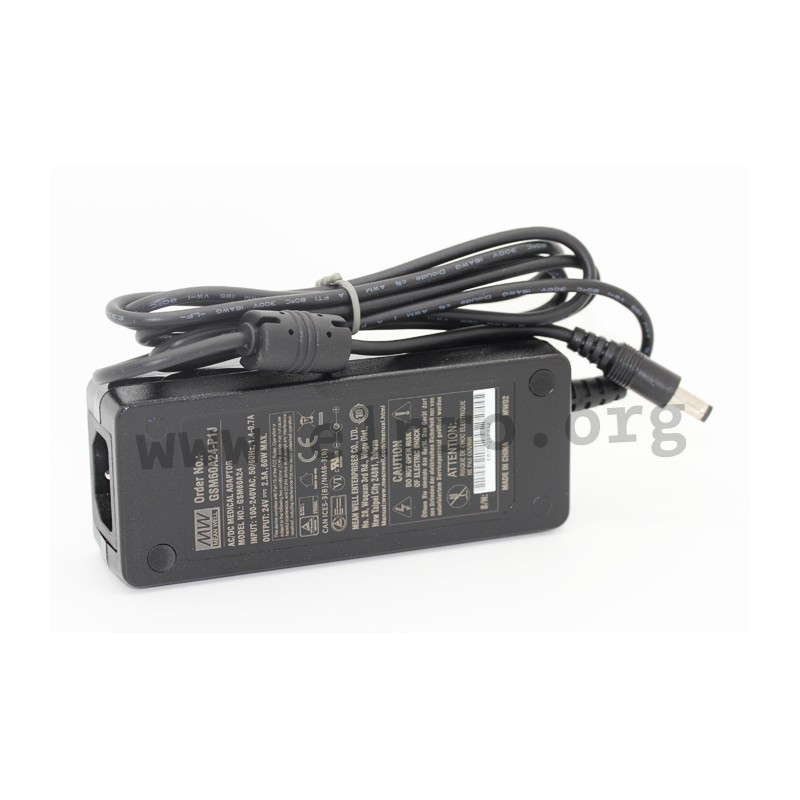

Mean Well desktop power supply series GSM60A

Desktop switching power supplies with 60W, a universal input, insulation class I, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 105.000h and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM60A05-P1J, GSM60A07-P1J, GSM60A09-P1J, GSM60A12-P1J, GSM60A15-P1J, GSM60A18-P1J, GSM60A24-P1J and GSM60A48-P1J.

  • single output
  • output: 30 to 60W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • input plug: C14 (EN60320-1)
  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +70°C
  • weight: 320g

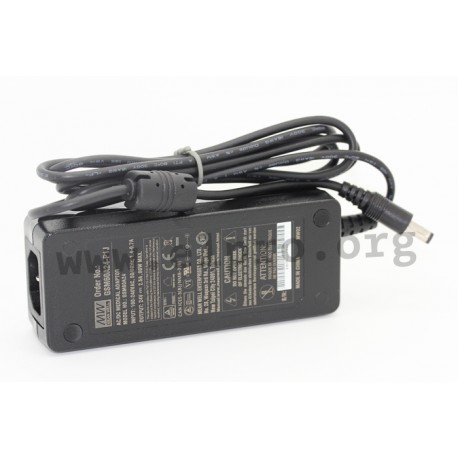

Meanwell GSM60A series

GSM60A07-P1J

42775 GSM60A07-P1J GSM60A07-P1J 4711287430553 Mean Well desktop power supply series GSM60A. Desktop switching power supplies with 60W, a universal input, insulation class I, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 105.000h and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM60A05-P1J, GSM60A07-P1J, GSM60A09-P1J, GSM60A12-P1J, GSM60A15-P1J, GSM60A18-P1J, GSM60A24-P1J and GSM60A48-P1J. single output output: 30 to 60W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A input plug: C14 (EN60320-1) output plug: 2,1x5,5mm operating temperature: -30 to +70°C weight: 320g

Specifications

manufacturer
Manufacturer's name GSM60A07-P1J
GTIN 4711287430553
Output voltage [V] 7,5
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0,1...6
Output voltage tolerance: [%] 5
Output power [W] 45
Ripple [mVp-p] 100
Data Sheet

Unit price

20,79 €

Volume discounts

Quantity Unit price
50 + 19,59 €

Stock: 10
Further delivery:
CW 22/2025
