GSM40B24-P1J

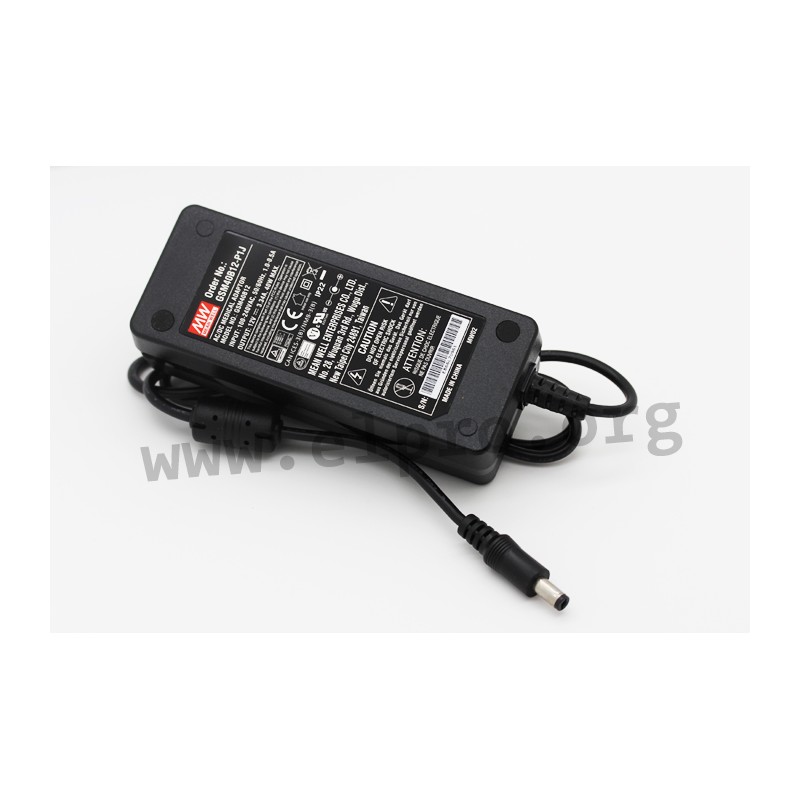

Mean Well desktop power supply series GSM40B

Desktop switching power supplies with 40W, a universal input, insulation class II and energy efficiency Level V (GSM40B12-P1J/GSM40B15-P1J/GSM40B18-P1J/GSM40B24-P1J/GSM40B48-P1J) / energy efficiency Level VI (GSM40B05-P1J/GSM40B07-P1J/GSM40B09-P1J). These devices are suitable for medical technology applications, are protected against overload, overvoltage as well as short circuit and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM40B05-P1J, GSM40B07-P1J, GSM40B09-P1J, GSM40B12-P1J, GSM40B15-P1J, GSM40B18-P1J, GSM40B24-P1J and GSM40B48-P1J.

  • single output
  • output: 25 to 40W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 65A
  • input plug: C8 (IEC320-C8)
  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +60°C
  • weight: 290g

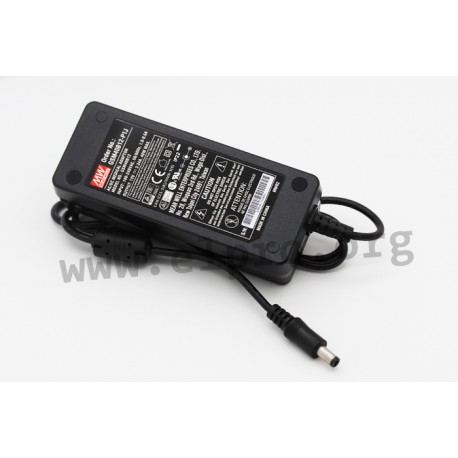

Mean Well GSM40B series

GSM40B24-P1J

108663 GSM40B24-P1J GSM40B24-P1J 4711287431079 Mean Well desktop power supply series GSM40B. Desktop switching power supplies with 40W, a universal input, insulation class II and energy efficiency Level V (GSM40B12-P1J/GSM40B15-P1J/GSM40B18-P1J/GSM40B24-P1J/GSM40B48-P1J) / energy efficiency Level VI (GSM40B05-P1J/GSM40B07-P1J/GSM40B09-P1J). These devices are suitable for medical technology applications, are protected against overload, overvoltage as well as short circuit and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM40B05-P1J, GSM40B07-P1J, GSM40B09-P1J, GSM40B12-P1J, GSM40B15-P1J, GSM40B18-P1J, GSM40B24-P1J and GSM40B48-P1J. single output output: 25 to 40W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 65A input plug: C8 (IEC320-C8) output plug: 2,1x5,5mm operating temperature: -30 to +60°C weight: 290g

Specifications

manufacturer
Manufacturer's name GSM40B24-P1J
GTIN 4711287431079
Output voltage [V] 24
Efficiency [%] 90
Output current range [A] 0...1,67
Output voltage tolerance: [%] 2,5
Output power [W] 40
Ripple [mVp-p] 180
Data Sheet

Unit price

17,99 €

Volume discounts

Quantity Unit price
50 + 16,79 €

Stock: 110
Further delivery:
CW 18/2025
