GSM40A24-P1J

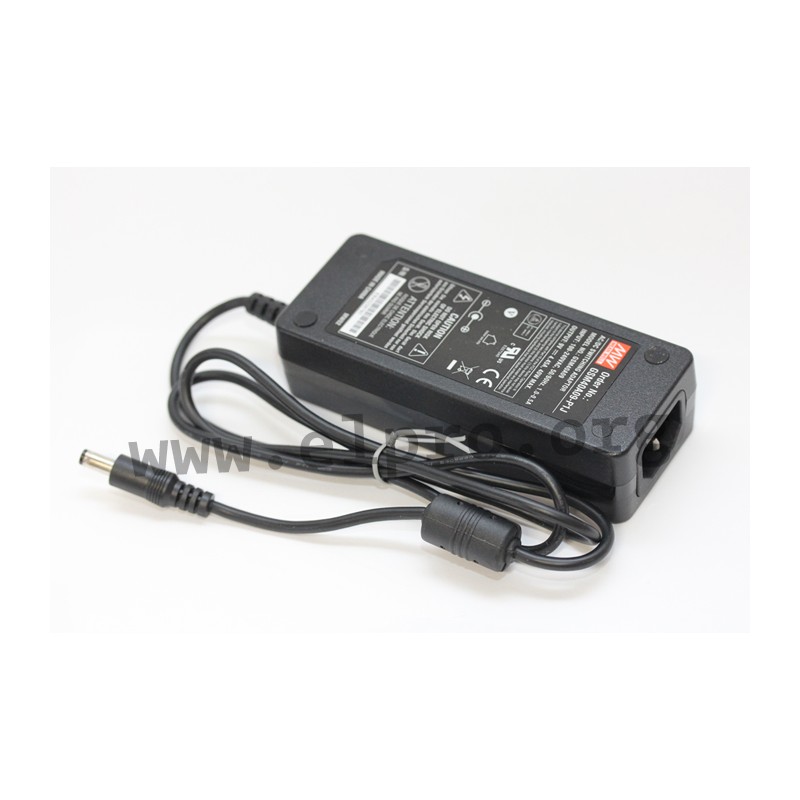

Mean Well desktop power supply series GSM40A

Desktop switching power supplies with 40W, insulation class I, energy efficiency Level V/VI and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM40A05-P1J, GSM40A07-P1J, GSM40A09-P1J, GSM40A12-P1J, GSM40A15-P1J, GSM40A18-P1J, GSM40A24-P1J and GSM40A48-P1J.

  • single output
  • output: 25 to 40W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • input plug: C14 (EN60320-1)
  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +60°C
  • weight: 290g

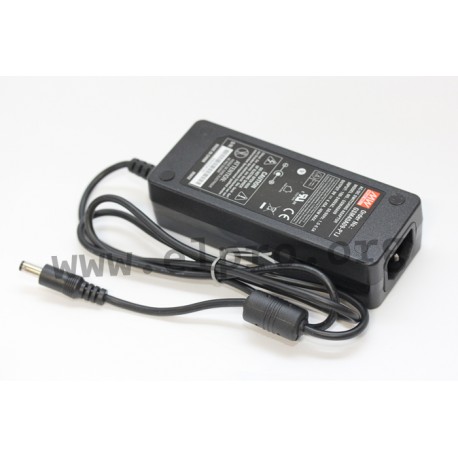

Meanwell GSM40A series

GSM40A24-P1J

42747 GSM40A24-P1J GSM40A24-P1J 4711287430522 Mean Well desktop power supply series GSM40A. Desktop switching power supplies with 40W, insulation class I, energy efficiency Level V/VI and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM40A05-P1J, GSM40A07-P1J, GSM40A09-P1J, GSM40A12-P1J, GSM40A15-P1J, GSM40A18-P1J, GSM40A24-P1J and GSM40A48-P1J. single output output: 25 to 40W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A input plug: C14 (EN60320-1) output plug: 2,1x5,5mm operating temperature: -30 to +60°C weight: 290g

Specifications

manufacturer
Manufacturer's name GSM40A24-P1J
GTIN 4711287430522
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 90
Output current range [A] 0,1...1,67
Output voltage tolerance: [%] 2,5
Output power [W] 40
Ripple [mVp-p] 180
Data Sheet

Unit price

15,99 €

Volume discounts

Quantity Unit price
50 + 14,99 €

Stock: 556
Next incoming goods:
CW 51/2024
320 units

Further delivery:
CW 18/2025
