GSM25B24-P1J

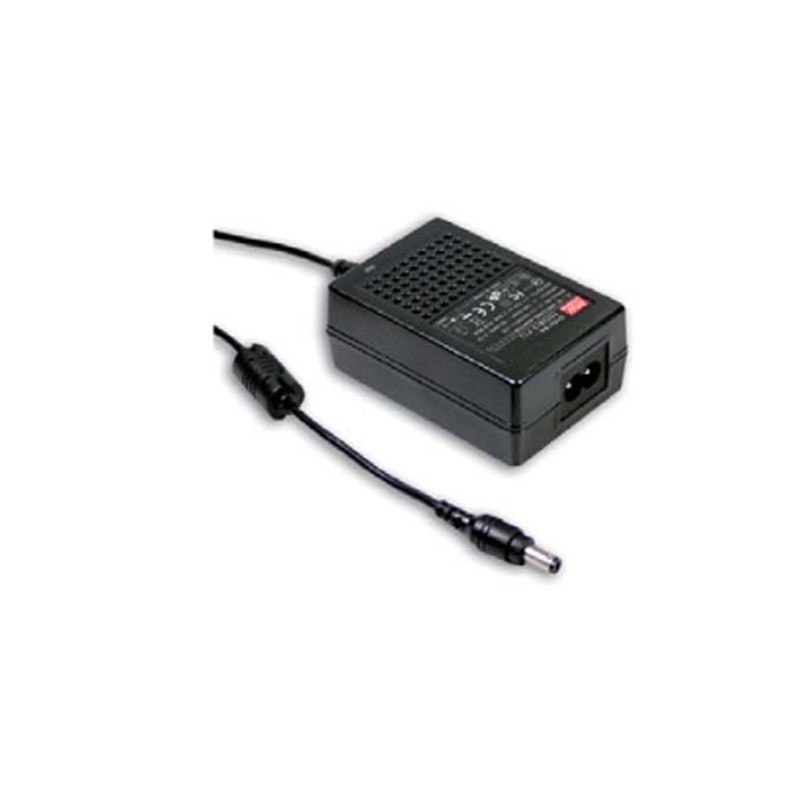

Mean Well desktop power supply series GSM25B

External switching power supplies in a plastic housing (UL94V-0) with 25W, a 2-pole AC inlet (IEC320-C8), protection class II, energy efficiency Level VI and a low no-load power (<0,1W). These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-11, EN62368-1 as well as EN55011 class B. They have an LED indicator for power on and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series:  GSM25B05-P1J, GSM25B07-P1J, GSM25B09-P1J, GSM25B12-P1J, GSM25B15-P1J, GSM25B18-P1J, GSM25B24-P1J, and GSM25B48-P1J.

  • single output
  • output: 25W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <50µA
  • overload protection: 105 to 170%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -25 to +60°C
  • dimensions: 79x54x33mm
  • weight: 235g

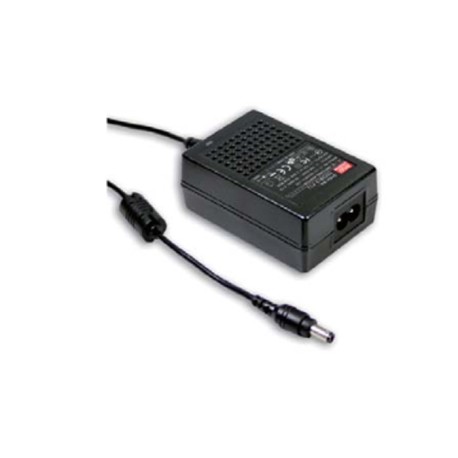

GSM25B24-P1J, Mean Well external switching power supplies, 25W, for medical technology, energy efficiency Level VI, GSM25B serie

GSM25B24-P1J

245845 GSM25B24-P1J GSM25B24-P1J 4711287430911 Mean Well desktop power supply series GSM25B. External switching power supplies in a plastic housing (UL94V-0) with 25W, a 2-pole AC inlet (IEC320-C8), protection class II, energy efficiency Level VI and a low no-load power (&lt;0,1W). These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-11, EN62368-1 as well as EN55011 class B. They have an LED indicator for power on and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series:  GSM25B05-P1J, GSM25B07-P1J, GSM25B09-P1J, GSM25B12-P1J, GSM25B15-P1J, GSM25B18-P1J, GSM25B24-P1J, and GSM25B48-P1J. single output output: 25W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 55A leakage current: &lt;50µA overload protection: 105 to 170% withstand voltage I/P-O/P: 4000V AC operating temperature: -25 to +60°C dimensions: 79x54x33mm weight: 235g

Specifications

manufacturer
Manufacturer's name GSM25B24-P1J
GTIN 4711287430911
Output voltage [V] 24
Efficiency [%] 87
Output current [A] 1,04
Output voltage tolerance: [%] 2
Output power [W] 25
Ripple [mVp-p] 180
Data Sheet

Unit price

14,09 €

Volume discounts

Quantity Unit price
50 + 13,29 €

Stock: 8
Further delivery:
CW 16/2025
