GSM220B15-R7B

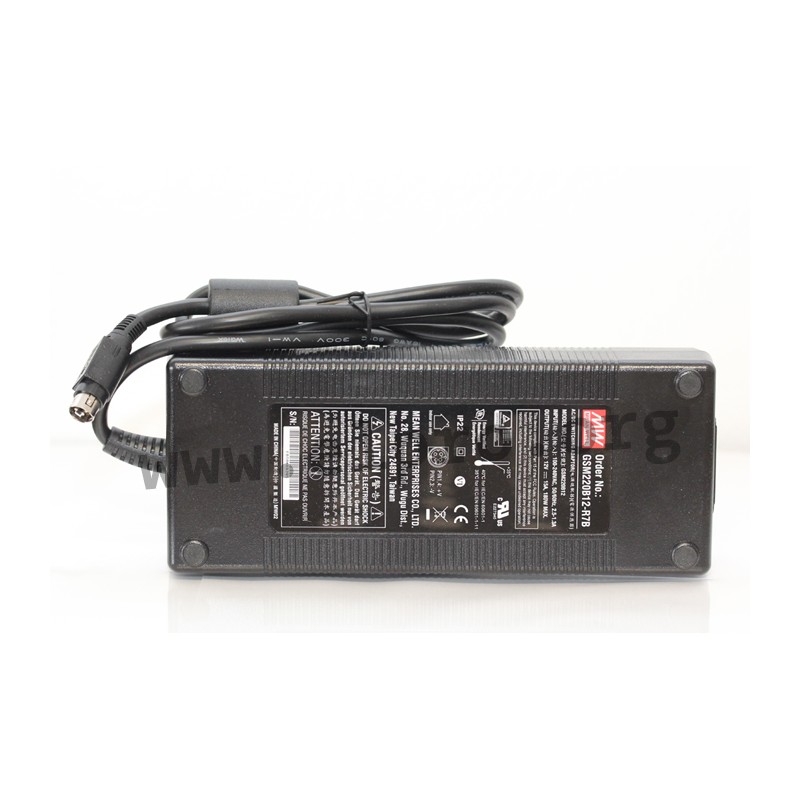

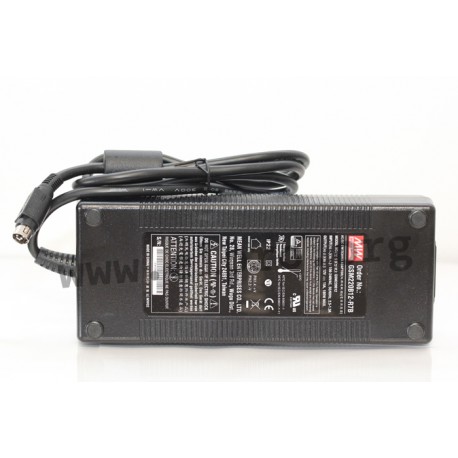

Mean Well desktop power supply series GSM220B

Desktop switching power supplies with 220W, insulation class II, a universal input, energy efficiency Level VI, an LED indicator for power on and a low no-load power (<0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 70.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM220B12-R7B, GSM220B15-R7B, GSM220B20-R7B, GSM220B24-R7B and GSM220B48-R7B.

  • single output
  • output: 180 to 221W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 110A
  • cable length: 1m
  • input plug: C8 (IEC320-C8)
  • output plug: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 1100g
Mean Well GSM220B series

GSM220B15-R7B

104890 GSM220B15-R7B GSM220B15-R7B 4711287431338 Mean Well desktop power supply series GSM220B. Desktop switching power supplies with 220W, insulation class II, a universal input, energy efficiency Level VI, an LED indicator for power on and a low no-load power (&lt;0,15W). These devices are&nbsp;suitable for medical technology&nbsp;applications (2xMOPP) and are protected against&nbsp;overload, overtemperature, overvoltage as well as short&nbsp;circuit. They have a service life of more than 70.000 hours and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GSM220B12-R7B, GSM220B15-R7B, GSM220B20-R7B, GSM220B24-R7B and GSM220B48-R7B. single output output: 180 to 221W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 110A cable length: 1m input plug: C8 (IEC320-C8) output plug: R7B 4-pole operating temperature: -30 to +70&deg;C weight: 1100g

Specifications

manufacturer
Manufacturer's name GSM220B15-R7B
GTIN 4711287431338
Output voltage [V] 15
Efficiency [%] 90
Output current [A] 0...13,4
Output voltage tolerance: [%] 5
Output power [W] 201
Ripple [mVp-p] 100
Data Sheet

Unit price

69,99 €

Volume discounts

Quantity Unit price
50 + 68,49 €

Stock: 8
Further delivery:
CW 18/2025
