GSM18E24-P1J

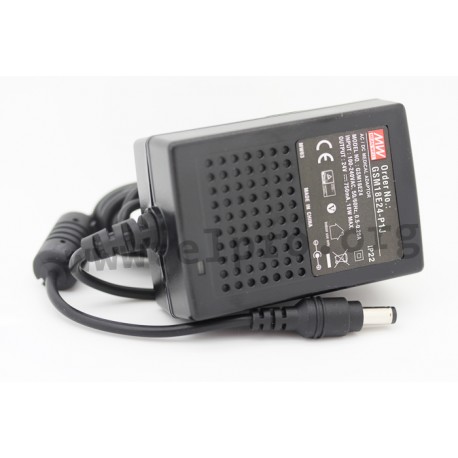

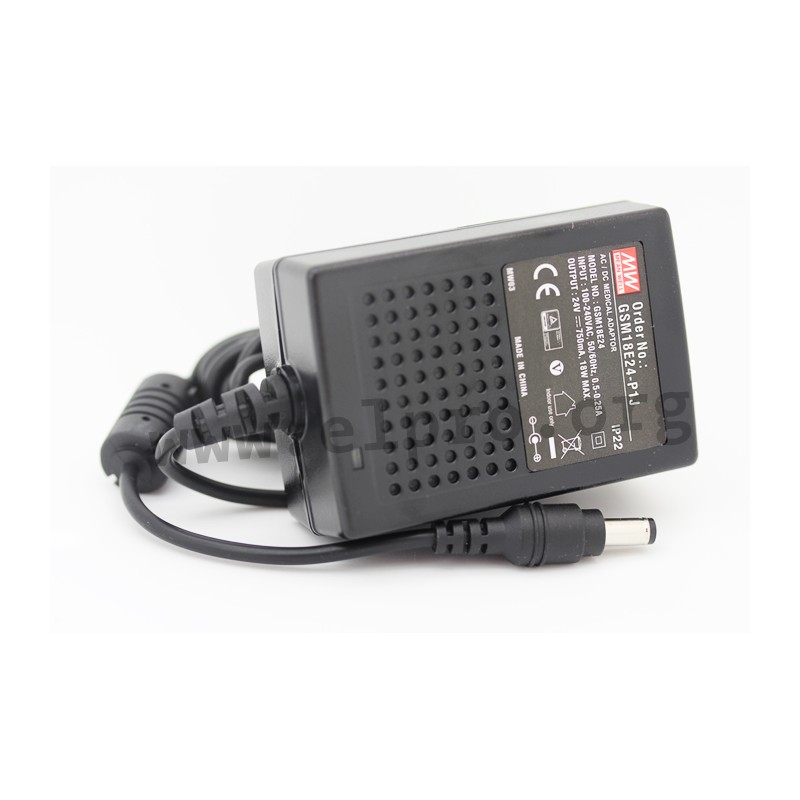

Mean Well plug-in power supply series GSM18E

Plug-in switching power supplies in a plastic housing (UL94V-0) with 18W, a europlug, a universal input, insulation class II, energy efficiency Level V/VI, an LED indicator for power on and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. They have a very high reliability and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: GSM18E05-P1J, GSM18E07-P1J, GSM18E09-P1J, GSM18E12-P1J, GSM18E15-P1J, GSM18E18-P1J, GSM18E24-P1J and GSM18E48-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 50A
  • no-load power: <0,1W
  • input plug: Euro
  • output plug: 2,1x5,5mm coaxial
  • operating temperature: -25 to +60°C
  • weight: 200g
GSM18E24-P1J

GSM18E24-P1J

108647 GSM18E24-P1J GSM18E24-P1J 4711287431673 Mean Well plug-in power supply series&nbsp;GSM18E. Plug-in switching power supplies in a plastic housing (UL94V-0) with 18W, a europlug, a universal input,&nbsp;insulation class II, energy efficiency Level V/VI, an LED indicator for&nbsp;power on and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. They have a very high reliability and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series:&nbsp;GSM18E05-P1J, GSM18E07-P1J, GSM18E09-P1J, GSM18E12-P1J, GSM18E15-P1J, GSM18E18-P1J, GSM18E24-P1J and GSM18E48-P1J. single output output: 15 to 18W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 50A no-load power: &lt;0,1W input plug: Euro output plug: 2,1x5,5mm&nbsp;coaxial operating temperature: -25 to +60&deg;C weight: 200g

Specifications

manufacturer
Manufacturer's name GSM18E24-P1J
GTIN 4711287431673
Output voltage [V] 24
Efficiency [%] 87
Output current range [A] 0...0,75
Output voltage tolerance: [%] 2
Output power [W] 18
Ripple [mVp-p] 180
Data Sheet

Unit price

13,29 €

Volume discounts

Quantity Unit price
50 + 12,39 €

Stock: 106
Next incoming goods:
CW 18/2025
120 units

Further delivery:
CW 22/2025
