GSM18B12-P1J

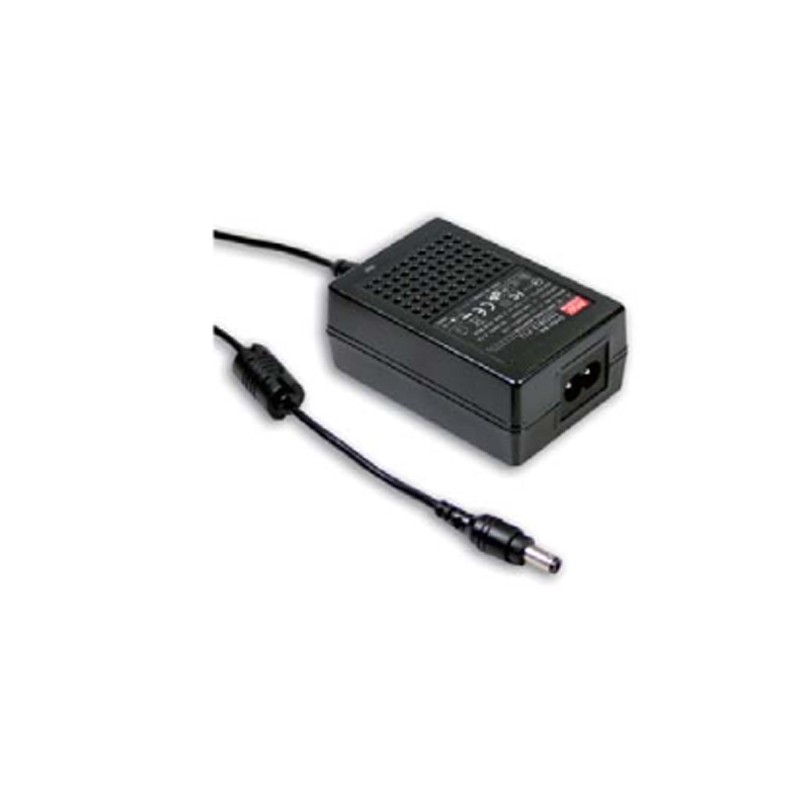

Mean Well desktop power supply series GSM18B

External switching power supplies in a plastic housing (UL94V-0) with 18W, protection class II, a low no-load power (<0,1W) and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on, a 2-pole AC inlet (IEC320-C8) and comply with EN62368-1, EN60601-1, EN60601-11 as well as EN55011 class B. We offer the following types of this Mean Well series: GSM18B05-P1J, GSM18B07-P1J, GSM18B09-P1J, GSM18B12-P1J, GSM18B15-P1J, GSM18B18-P1J, GSM18B24-P1J, and GSM18B48-P1J.

  • single output
  • output: 18W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <50µA
  • overload protection: 105 to 170%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -25 to +60°C
  • dimensions: 79x54x33mm
  • weight: 205g

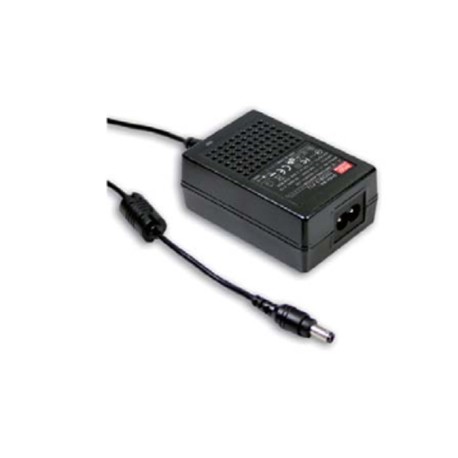

GSM18B12-P1J, Mean Well external switching power supplies, 18W, for medical technology, energy efficiency Level VI, GSM18B serie

GSM18B12-P1J

245842 GSM18B12-P1J GSM18B12-P1J 4711287430805 Mean Well desktop power supply series GSM18B. External switching power supplies in a plastic housing (UL94V-0) with 18W, protection class II, a low no-load power (&lt;0,1W) and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on, a 2-pole AC inlet (IEC320-C8) and comply with EN62368-1, EN60601-1, EN60601-11 as well as EN55011 class B. We offer the following types of this Mean Well series: GSM18B05-P1J, GSM18B07-P1J, GSM18B09-P1J, GSM18B12-P1J, GSM18B15-P1J, GSM18B18-P1J, GSM18B24-P1J, and GSM18B48-P1J. single output output: 18W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 55A leakage current: &lt;50µA overload protection: 105 to 170% withstand voltage I/P-O/P: 4000V AC operating temperature: -25 to +60°C dimensions: 79x54x33mm weight: 205g

Specifications

manufacturer
Manufacturer's name GSM18B12-P1J
GTIN 4711287430805
Output voltage [V] 12
Efficiency [%] 85
Output current [A] 1,5
Output voltage tolerance: [%] 3
Output power [W] 18
Ripple [mVp-p] 120
Data Sheet

Unit price

13,89 €

Volume discounts

Quantity Unit price
50 + 13,09 €

Stock: 3
Next incoming goods:
CW 03/2025
20 units

Further delivery:
CW 12/2025
