GSM160B15-R7B

Mean Well desktop power supply series GSM160B

Desktop switching power supplies with 160W, insulation class II, a universal input, energy efficiency Level VI, an LED indicator for power on and a low no-load power (<0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 110.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM160B12-R7B, GSM160B15-R7B, GSM160B20-R7B, GSM160B24-R7B and GSM160B48-R7B.

  • single output
  • output: 138 to 160W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 110A
  • no-load power: <0,15W
  • input plug: C8 (IEC320-C8)
  • output plug: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 660g

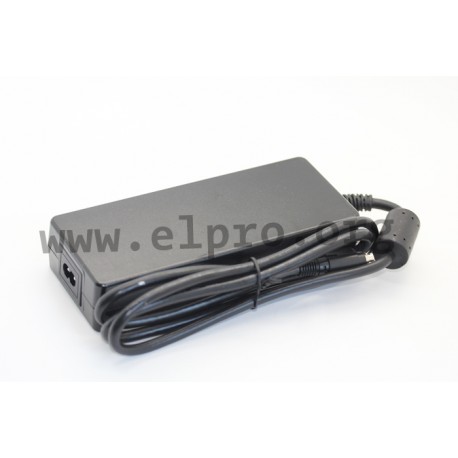

GSM160B15-R7B, Mean Well desktop switching power supplies, 160W, for medical technology, GSM160B series

GSM160B15-R7B

104885 GSM160B15-R7B GSM160B15-R7B 4711287431284 Mean Well desktop power supply series GSM160B. Desktop switching power supplies with 160W, insulation class II, a universal input, energy efficiency Level VI, an LED indicator for power on and a low no-load power (&lt;0,15W). These devices are suitable for&nbsp;medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 110.000 hours and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GSM160B12-R7B, GSM160B15-R7B, GSM160B20-R7B, GSM160B24-R7B and GSM160B48-R7B. single output output: 138 to 160W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 110A no-load power: &lt;0,15W input plug: C8 (IEC320-C8) output plug: R7B 4-pole operating temperature: -30 to +70&deg;C weight: 660g

Specifications

manufacturer
Manufacturer's name GSM160B15-R7B
GTIN 4711287431284
Output [V] 15
Efficiency [%] 91
Output current [A] 0...9,6
Output voltage tolerance: [%] 5
Output power [W] 144
Ripple [mVp-p] 100
Data Sheet
