GSM160A48-R7B

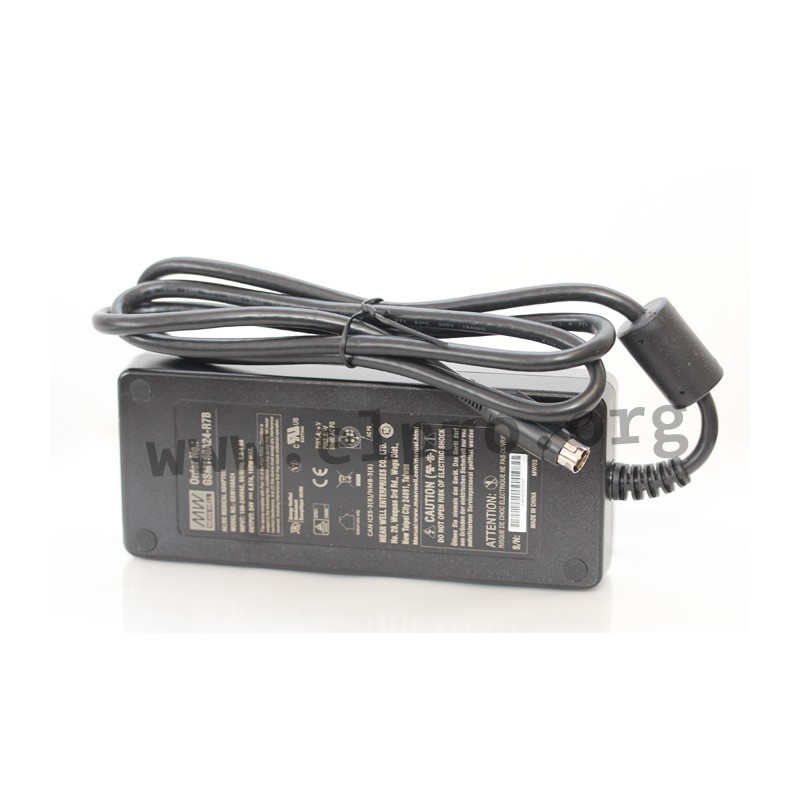

Mean Well desktop power supply series GSM160A

Desktop switching power supplies with 160W, a universal input, an LED indicator for power on, insulation class I and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a low no-load power (<0,15W) and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM160A12-R7B, GSM160A15-R7B, GSM160A20-R7B, GSM160A24-R7B and GSM160A48-R7B.

  • single output
  • output: 138 to 160W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 120A
  • cable length: 1,2m
  • operating temperature: -30 to +70°C
  • input plug: C14 (IEC320-C14)
  • output plug: R7B 4-pole
  • weight: 660g

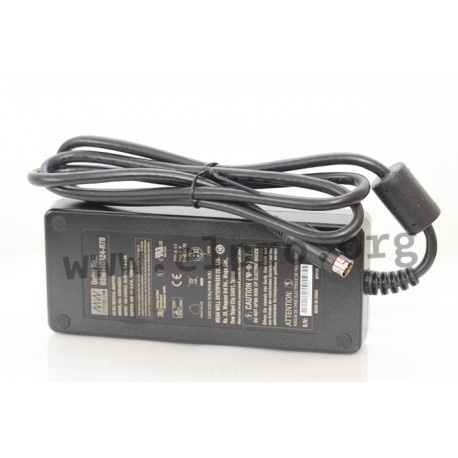

GSM160A series by Meanwell

GSM160A48-R7B

108395 GSM160A48-R7B GSM160A48-R7B 4711287430768 Mean Well desktop power supply series GSM160A. Desktop switching power supplies with 160W, a universal input, an LED&nbsp;indicator for power on, insulation class I and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a low no-load power (&lt;0,15W) and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GSM160A12-R7B, GSM160A15-R7B, GSM160A20-R7B, GSM160A24-R7B and GSM160A48-R7B. single output output: 138 to 160W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 120A cable length: 1,2m operating temperature: -30 to +70&deg;C input plug: C14 (IEC320-C14) output plug: R7B 4-pole weight: 660g

Specifications

manufacturer
Manufacturer's name GSM160A48-R7B
GTIN 4711287430768
Output voltage [V] 48
Efficiency [%] 94
Output current range [A] 0...3,34
Output voltage tolerance: [%] 3
Output power [W] 160
Ripple [mVp-p] 240
Data Sheet

Unit price

50,19 €

Volume discounts

Quantity Unit price
50 + 49,09 €

Stock: 10
Next incoming goods:
CW 05/2025
50 units

Further delivery:
CW 22/2025
