GSM120B24-R7B

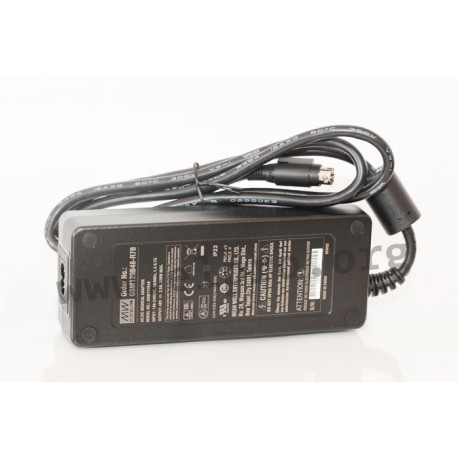

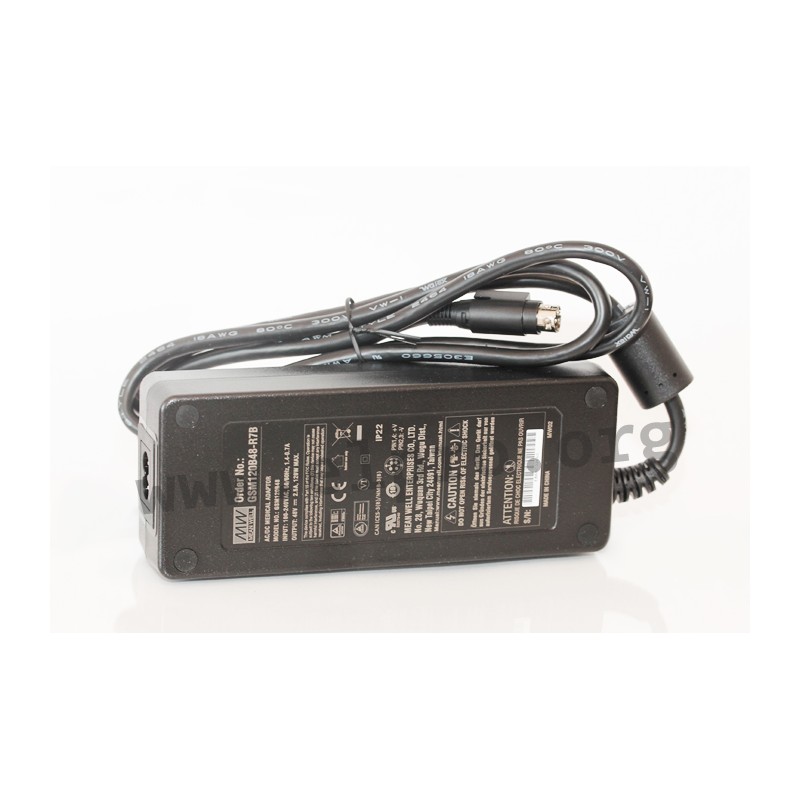

Mean Well desktop power supply series GSM120B

Desktop switching power supplies with 120W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power (<0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have an LED indicator for power on and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM120B12-R7B, GSM120B15-R7B, GSM120B20-R7B, GSM120B24-R7B and GSM120B48-R7B.

  • single output
  • output: 102 to 120W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 70A
  • input plug: C8 (IEC320-C8)
  • output plug: R7B 4-polig
  • operating temperature: -30 to +70°C
  • weight: 600g
GSM120B series

GSM120B24-R7B

104882 GSM120B24-R7B GSM120B24-R7B 4711287431260 Mean Well desktop power supply series&nbsp;GSM120B. Desktop switching power supplies with 120W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power (&lt;0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as&nbsp;overvoltage. They have an LED&nbsp;indicator for power on and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GSM120B12-R7B, GSM120B15-R7B, GSM120B20-R7B, GSM120B24-R7B and GSM120B48-R7B. single output output: 102 to 120W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 70A input plug: C8 (IEC320-C8) output plug: R7B 4-polig operating temperature: -30 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name GSM120B24-R7B
GTIN 4711287431260
Output voltage [V] 24
Efficiency [%] 90
Output current [A] 0...5
Output voltage tolerance: [%] 3
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet

Unit price

40,89 €

Volume discounts

Quantity Unit price
50 + 39,49 €

Stock: 206
Further delivery:
CW 18/2025
