GSM120A24-R7B

Mean Well desktop power supply series GSM120A

Desktop switching power supplies with 120W, an LED indicator for power on, a low no-load power, a universal input, insulation class I and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 95.000 hours and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM120A12-R7B, GSM120A15-R7B, GSM120A20-R7B, GSM120A24-R7B and GSM120A48-R7B.

  • single output
  • output: 102 to 120W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • no-load power: <0,15W
  • input plug: C14 (IEC320-C14)
  • output plug: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 600g

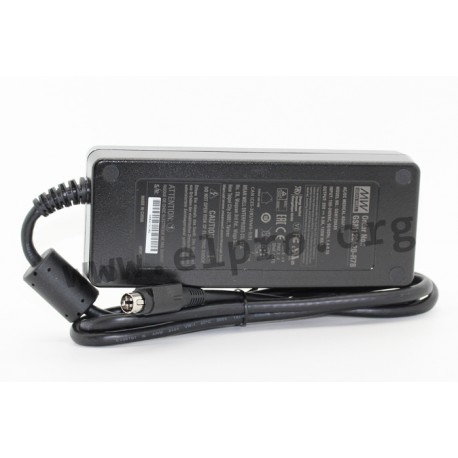

GSM120A24-R7B, output 120 W, isolation class I, for medical usage

GSM120A24-R7B

108389 GSM120A24-R7B GSM120A24-R7B 4711287430706 Mean Well desktop power supply series GSM120A. Desktop switching power supplies with 120W, an LED indicator for power on, a low no-load power, a&nbsp;universal input, insulation class I and energy efficiency Level VI. These devices are&nbsp;suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 95.000&nbsp;hours and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well&nbsp;series:&nbsp;GSM120A12-R7B, GSM120A15-R7B, GSM120A20-R7B, GSM120A24-R7B and GSM120A48-R7B. single output output: 102 to 120W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 70A no-load power: &lt;0,15W input plug: C14 (IEC320-C14) output plug: R7B 4-pole operating temperature: -30 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name GSM120A24-R7B
GTIN 4711287430706
Output voltage [V] 24
Efficiency [%] 90
Output current range [A] 0...5
Output voltage tolerance: [%] 3
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet

Unit price

37,89 €

Volume discounts

Quantity Unit price
50 + 36,89 €

Stock: 114
Next incoming goods:
CW 05/2025
200 units

Further delivery:
CW 18/2025
