GSM120A12-R7B

Mean Well desktop power supply series GSM120A

Desktop switching power supplies with 120W, an LED indicator for power on, a low no-load power, a universal input, insulation class I and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 95.000 hours and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM120A12-R7B, GSM120A15-R7B, GSM120A20-R7B, GSM120A24-R7B and GSM120A48-R7B.

  • single output
  • output: 102 to 120W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • no-load power: <0,15W
  • input plug: C14 (IEC320-C14)
  • output plug: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 600g

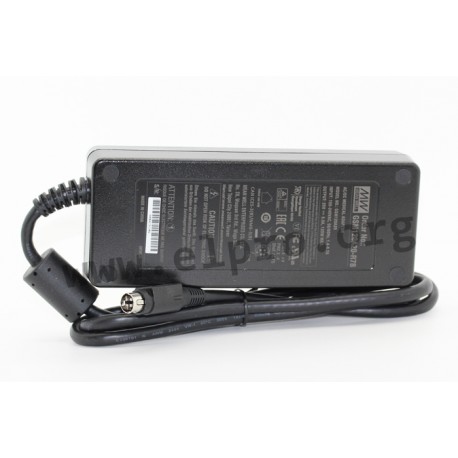

GSM120A12-R7B, output 120 W, isolation class I, for medical usage

GSM120A12-R7B

108386 GSM120A12-R7B GSM120A12-R7B 4711287430676 Mean Well desktop power supply series GSM120A. Desktop switching power supplies with 120W, an LED indicator for power on, a low no-load power, a&nbsp;universal input, insulation class I and energy efficiency Level VI. These devices are&nbsp;suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 95.000&nbsp;hours and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well&nbsp;series:&nbsp;GSM120A12-R7B, GSM120A15-R7B, GSM120A20-R7B, GSM120A24-R7B and GSM120A48-R7B. single output output: 102 to 120W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 70A no-load power: &lt;0,15W input plug: C14 (IEC320-C14) output plug: R7B 4-pole operating temperature: -30 to +70&deg;C weight: 600g

Specifications

manufacturer
Manufacturer's name GSM120A12-R7B
GTIN 4711287430676
Output voltage [V] 12
Efficiency [%] 88
Output current range [A] 0...8,5
Output voltage tolerance: [%] 5
Output power [W] 102
Ripple [mVp-p] 120
Data Sheet
