GS40A12-P1J

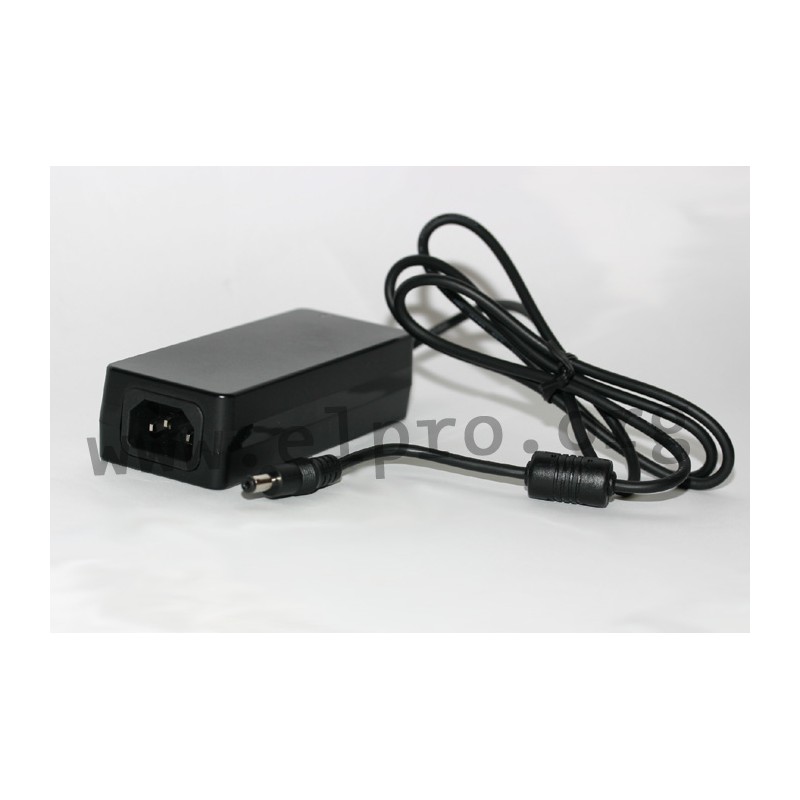

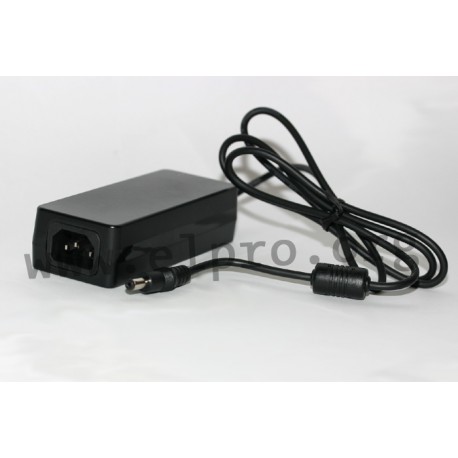

Mean Well desktop power supply series GS40A

Desktop switching power supplies in a plastic housing with 40W, a universal input, a low no-load power (<0,3W), an LED indicator for power on, energy efficiency Level V and insulation class I. These devices are LPS certified, are protected against overload, overvoltage as well as short circuit and comply with UL/EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS40A07-P1J and GS40A12-P1J.

  • single output
  • output: 40W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +60°C
  • dimensions: 125x50x31,5mm
  • weight: 280g

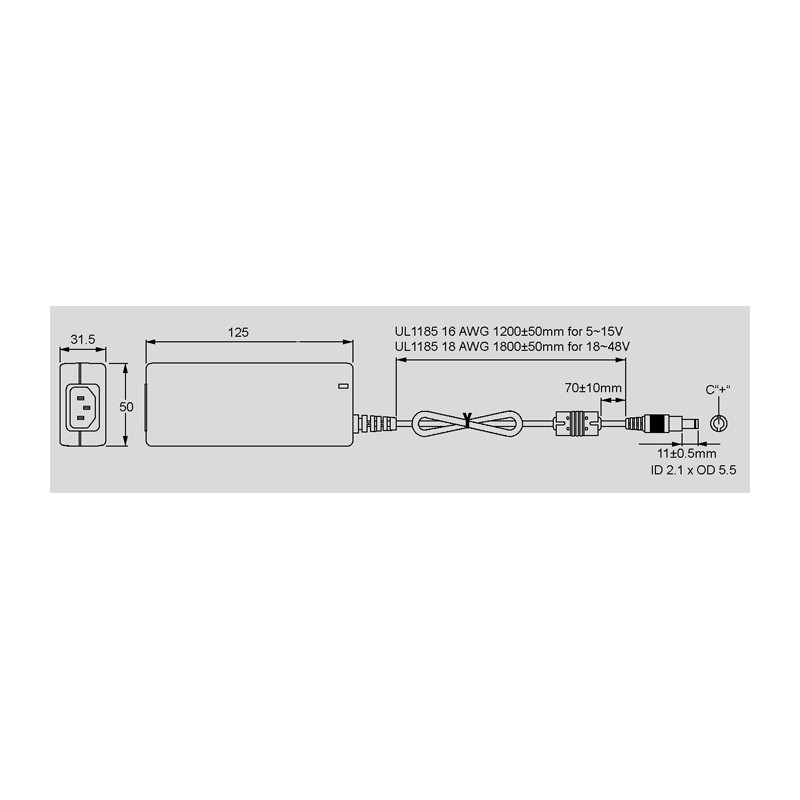

dimensions

GS40A12-P1J

32382 GS40A12-P1J GS40A12-P1J Mean Well desktop power supply series GS40A. Desktop switching power supplies in a plastic housing with 40W, a universal input, a low no-load power (&lt;0,3W), an LED indicator for power on, energy efficiency Level V and insulation class I. These devices are LPS certified, are protected against overload, overvoltage as well as short circuit and comply with UL/EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS40A07-P1J and GS40A12-P1J. single output output: 40W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 65A leakage current: &lt;0,75mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +60°C dimensions: 125x50x31,5mm weight: 280g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name GS40A12-P1J
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 89
Output current range [A] 0...3,34
Output voltage tolerance: [%] 3
Output power [W] 40
Ripple [mV] 100
Data Sheet

Unit price

14,90 €

Stock: 1
