GP25B14E-R1B

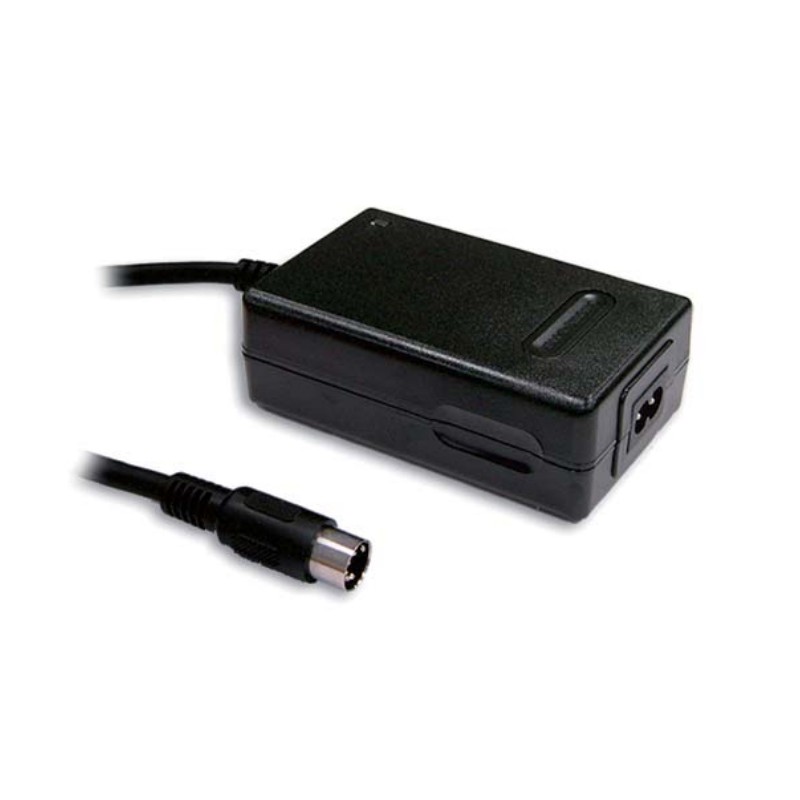

Mean Well external power supply series GP25A and GP25B

External switching power supplies in a plastic housing with 25W, insulation class I (GP25A_) resp. II (GP25B_), a low no-load power and a universal input. These devices have three output channels and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EISA 2007/DoE, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GP25A13A-R1B, GP25A13D-R1B, GP25A14E-R1B, GP25B13A-R1B, GP25B13D-R1B and GP25B14E-R1B.

  • triple output
  • output: 28 to 29W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,3W
  • cable length: 1,53m
  • input plug: C14 (GP25A_) resp. C8 (GP25B_)
  • output plug: R1B 5-pole
  • weight: 300g

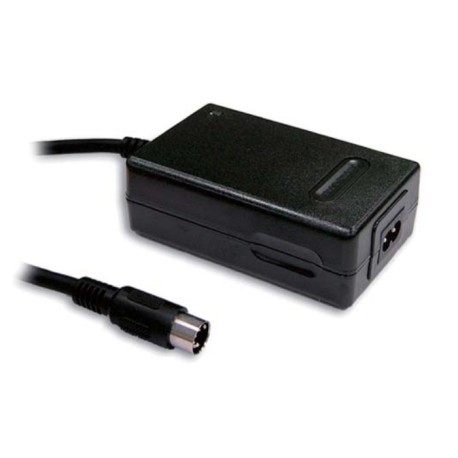

GP25B14E-R1B, Mean Well external switching power supplies, 25W, triple output, GP25A and GP25B series

GP25B14E-R1B

245009 GP25B14E-R1B GP25B14E-R1B 4711287468686 Mean Well external power supply series GP25A and GP25B. External switching power supplies in a plastic housing with 25W, insulation class I (GP25A_) resp. II (GP25B_), a low no-load power and a universal input. These devices have three output channels and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EISA 2007/DoE, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GP25A13A-R1B, GP25A13D-R1B, GP25A14E-R1B, GP25B13A-R1B, GP25B13D-R1B and GP25B14E-R1B. triple output output: 28 to 29W input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC maximal input inrush current: 60A no-load power: &lt;0,3W cable length: 1,53m input plug: C14 (GP25A_) resp. C8 (GP25B_) output plug: R1B 5-pole weight: 300g

Specifications

manufacturer
Manufacturer's name GP25B14E-R1B
GTIN 4711287468686
Output voltage [V] 5/15/-15
Efficiency [%] 80,5
Output current [A] 0,5...2,5/0,...
Output voltage tolerance: [%] 5/-5,+15/3
Output power [W] 29
Ripple [mVp-p] 100/150/50
Data Sheet

Unit price

31,39 €

Stock: 0
Further delivery:
CW 18/2025
