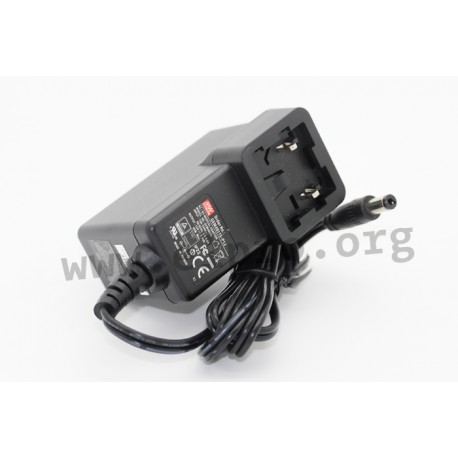

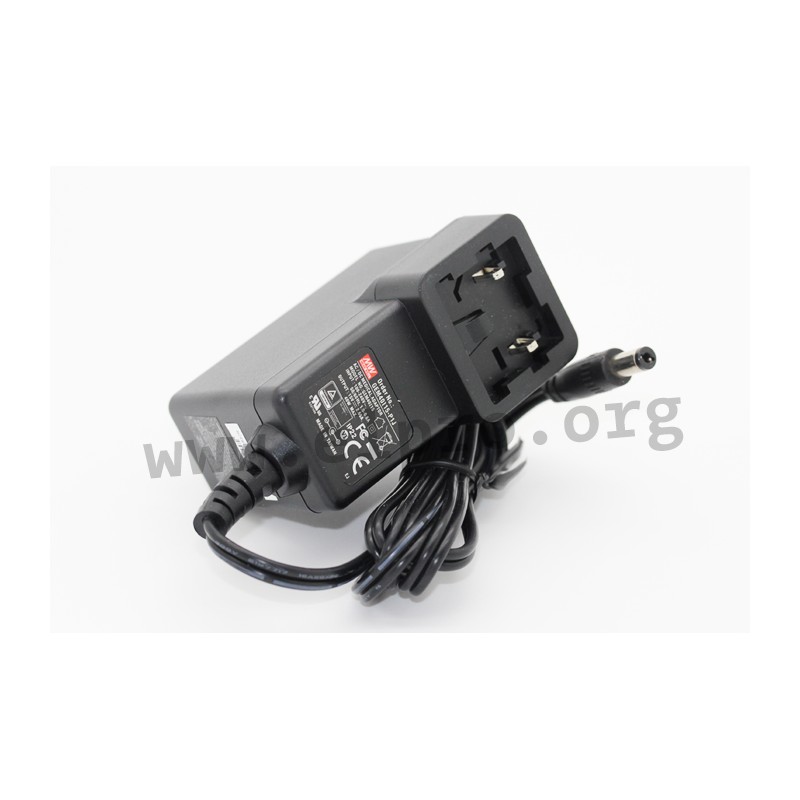

GEM40I15-P1J

Mean Well plug-in power supply series GEM40I

Plug-in switching power supplies in a plastic housing (UL94V-0) with 40W, a universal input, energy efficiency Level VI, a low no-load power and insulation class II. These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. They have interchangeable AC plugs (must be ordered separately) and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: GEM40I05-P1J, GEM40I09-P1J, GEM40I12-P1J, GEM40I15-P1J, GEM40I18-P1J, GEM40I24-P1J and GEM40I48-P1J.

  • single output
  • output: 25 to 40W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 65A
  • no-load power: <0,1W
  • leakage current: <100µA
  • output plug: 2,1x5,5mm coaxial
  • operating temperature: -25 to +70°C
  • weight: 200g

Matching input plugs

GEM40I15-P1J

GEM40I15-P1J

108377 GEM40I15-P1J GEM40I15-P1J 4711287473703 Mean Well plug-in power supply series&nbsp;GEM40I. Plug-in switching power supplies in a plastic housing (UL94V-0) with 40W, a universal input,&nbsp;energy efficiency Level VI, a low no-load&nbsp;power and insulation class II. These devices are suitable for medical technology applications (2xMOPP) and comply with&nbsp;EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. They have interchangeable AC plugs (must be ordered separately) and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series:&nbsp;GEM40I05-P1J,&nbsp;GEM40I09-P1J,&nbsp;GEM40I12-P1J,&nbsp;GEM40I15-P1J,&nbsp;GEM40I18-P1J,&nbsp;GEM40I24-P1J and&nbsp;GEM40I48-P1J. single output output: 25 to 40W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 65A no-load power: &lt;0,1W leakage current: &lt;100&micro;A output plug: 2,1x5,5mm&nbsp;coaxial operating temperature: -25 to +70&deg;C weight: 200g Matching input plugs

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name GEM40I15-P1J
GTIN 4711287473703
Output voltage [V] 15
Efficiency [%] 88
Output current range [A] 0...2,66
Output voltage tolerance: [%] 3
Output power [W] 40
Ripple [mVp-p] 120
Data Sheet

Unit price

25,79 €

Volume discounts

Quantity Unit price
50 + 24,09 €

Stock: 145
