GD2-151509

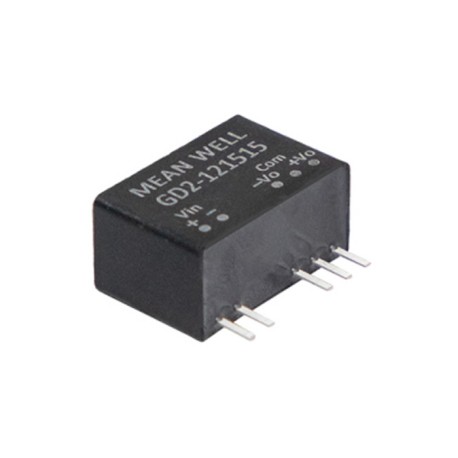

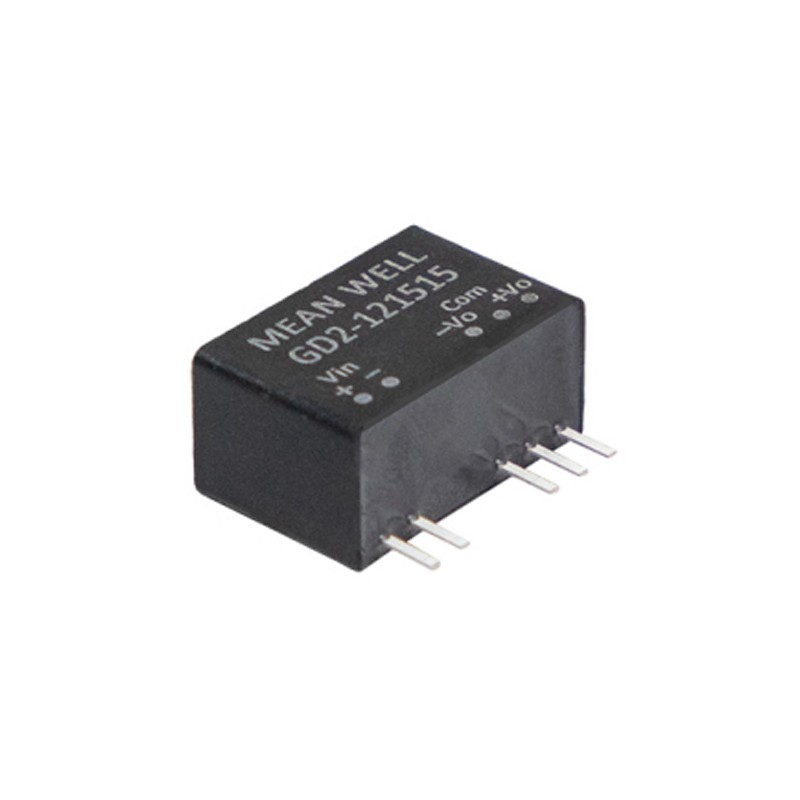

Mean Well DC/DC converters series GD2

Isolated and unregulated DC/DC converter modules, with 2W, and in a SIP7 housing. These devices are equipped with international standard pins and a high efficiency of up to 82%. They have diverse input and output voltages, a low leakage current, and a high isolation voltage. We offer various types of this Mean Well series.

  • dual output
  • input voltage: 12V/15V/24V+ 10%
  • operating temperature: -40 to +90°C
GD2-151509, Mean Well DC/DC converters, 2W, SIP7 housings, GD2 series

GD2-151509

249234 GD2-151509 GD2-151509 Mean Well DC/DC converters series GD2. Isolated and unregulated DC/DC converter modules, with 2W, and in a SIP7 housing. These devices are equipped with international standard pins and a high efficiency of up to 82%. They have diverse input and output voltages, a low leakage current, and a high isolation voltage. We offer various types of this Mean Well series. dual output input voltage: 12V/15V/24V+ 10% operating temperature: -40 to +90°C

Specifications

manufacturer
Manufacturer's name GD2-151509
Input voltage range [V] 15
Data Sheet

Unit price

8,39 €

Stock: 0
Next incoming goods:
CW 18/2025
25 units

Further delivery:
CW 22/2025
