GC330A36-C4P

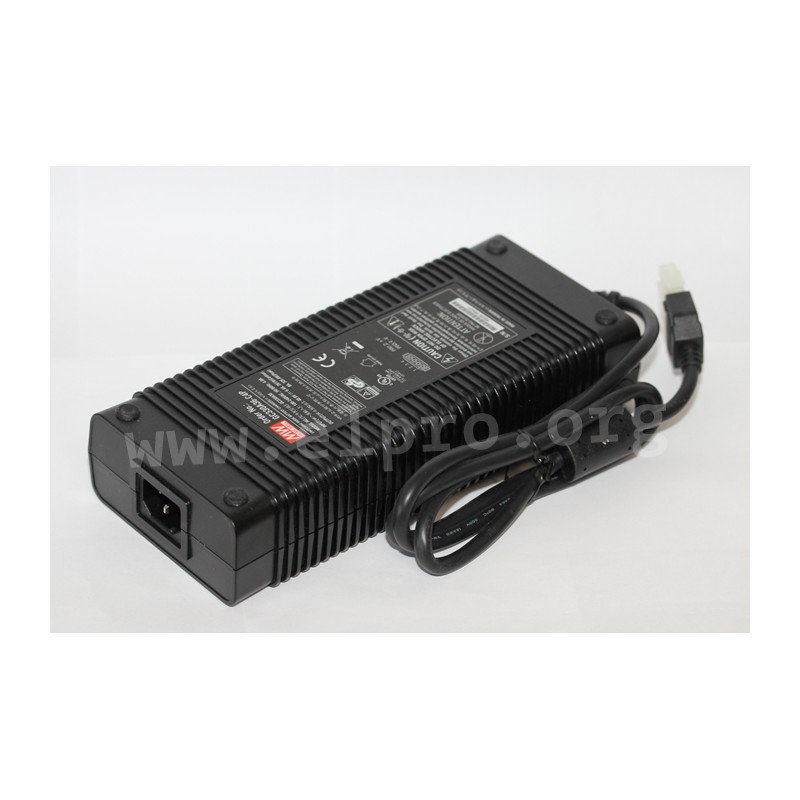

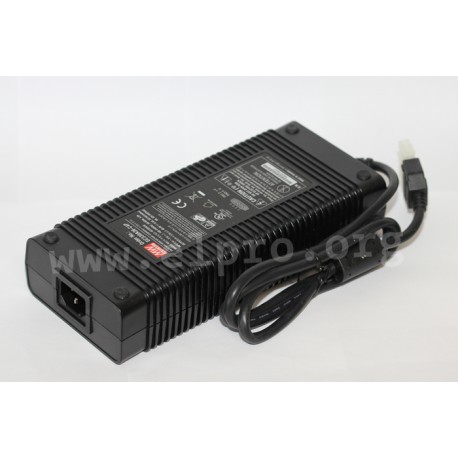

Mean Well charger series GC330

Battery chargers in a plastic housing with 330W, a universal input, a 2 stage charging curve, a 3-pole AC inlet, a two-colored LED indicator, protection class I and a low no-load power (<1W). These devices are suitable for Li-ion as well as lead-acid batteries and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, reverse current, short circuit as well as overvoltage. We offer the following types of this Mean Well series: GC330A36-C4P and GC330A36-C4P.

  • single output
  • output: 261,1 to 326,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 120A
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +60°C

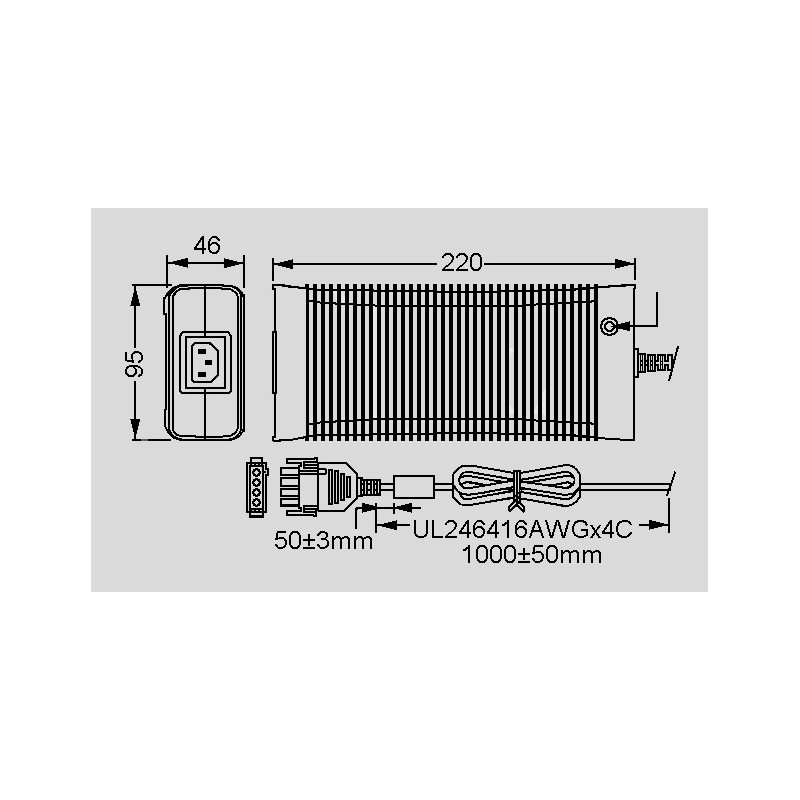

  • dimensions: 220x95x46mm
  • weight: 1250g
Serie GC330 von Meanwell

GC330A36-C4P

40120 GC330A36-C4P GC330A36-C4P 4711287420233 Mean Well charger series GC330. Battery chargers in a plastic housing with 330W, a universal input, a 2 stage charging curve, a 3-pole AC inlet, a two-colored LED indicator, protection class I and a low no-load power (&lt;1W). These devices are suitable for Li-ion as well as lead-acid batteries and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, reverse current, short circuit as well as overvoltage. We offer the following types of this Mean Well series: GC330A36-C4P and GC330A36-C4P. single output output: 261,1 to 326,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 120A overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +60°C dimensions: 220x95x46mm weight: 1250g

Specifications

manufacturer
Manufacturer's name GC330A36-C4P
GTIN 4711287420233
Output voltage [V] 40,8
Phase 2 phase
Recommended accu capacity [Ah] 20...65
Efficiency [%] 93,5
Output current range [A] 6,4...8
Output power [W] 261,1...326,4
Data Sheet

Unit price

74,79 €

Volume discounts

Quantity Unit price
50 + 73,19 €

Stock: 24
Further delivery:
CW 17/2025
