GC30B-11P1J

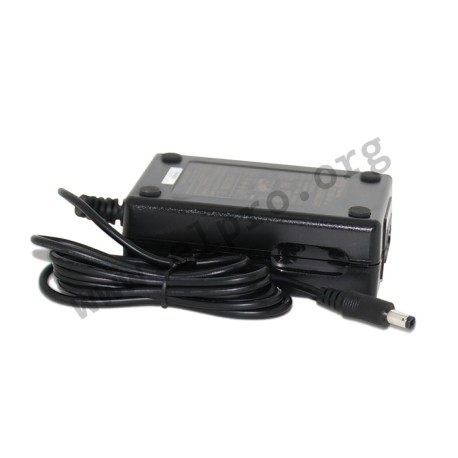

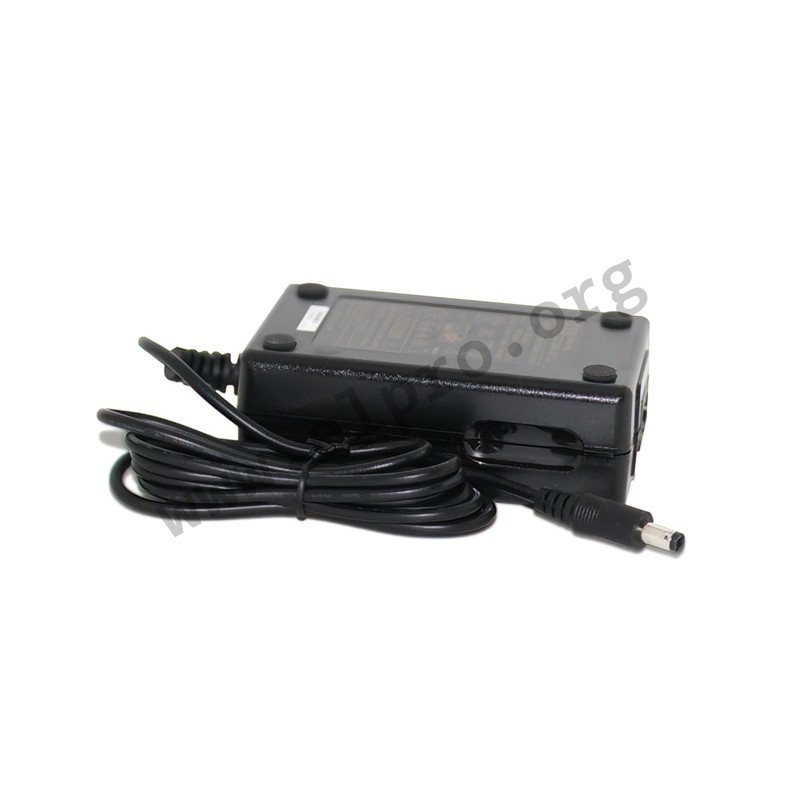

Mean Well desktop battery charger series GC30B

2-stage desktop charger with 30W, protection class II and a universal input. These devices are suitable for both lead-acid and li-ion batteries and comply with UL60950-1, EN60950-1 as well as EN55014-1 class B. They have a low no-load power consumption (<1W) and are protected against short circuit, overload as well as overvoltage. We offer the following types of this Mean Well series: GC30B-0P1J, GC30B-2P1J, GC30B-4P1J, GC30B-5P1J, GC30B-6P1J and GC30B-11P1J.

  • output: 16,8 to 30W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 0,25mA
  • operating temperature: 0 to +50°C
  • weight: 309g
GC30B-11P1J, Mean Well external battery chargers, 30W, for lead-acid and Li-ion batteries, GC30B series

GC30B-11P1J

245017 GC30B-11P1J GC30B-11P1J 4711232769714 Mean Well desktop battery charger series GC30B. 2-stage desktop charger with 30W, protection class II and a universal input. These devices are suitable for both lead-acid and li-ion batteries and comply with UL60950-1, EN60950-1 as well as EN55014-1 class B. They have a low no-load power consumption (&lt;1W) and are protected against short circuit, overload as well as overvoltage. We offer the following types of this Mean Well series: GC30B-0P1J, GC30B-2P1J, GC30B-4P1J, GC30B-5P1J, GC30B-6P1J and GC30B-11P1J. output: 16,8 to 30W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A maximal leakage current: 0,25mA operating temperature: 0 to +50°C weight: 309g

Specifications

manufacturer
Manufacturer's name GC30B-11P1J
GTIN 4711232769714
Output voltage [V] 7,2
Efficiency [%] 74
Output current range [A] 0...3
Output power [W] 21,6
Ripple [mVp-p] 80
Data Sheet

Unit price

29,69 €

Stock: 0
Further delivery:
CW 18/2025
