GC120A24-R7B

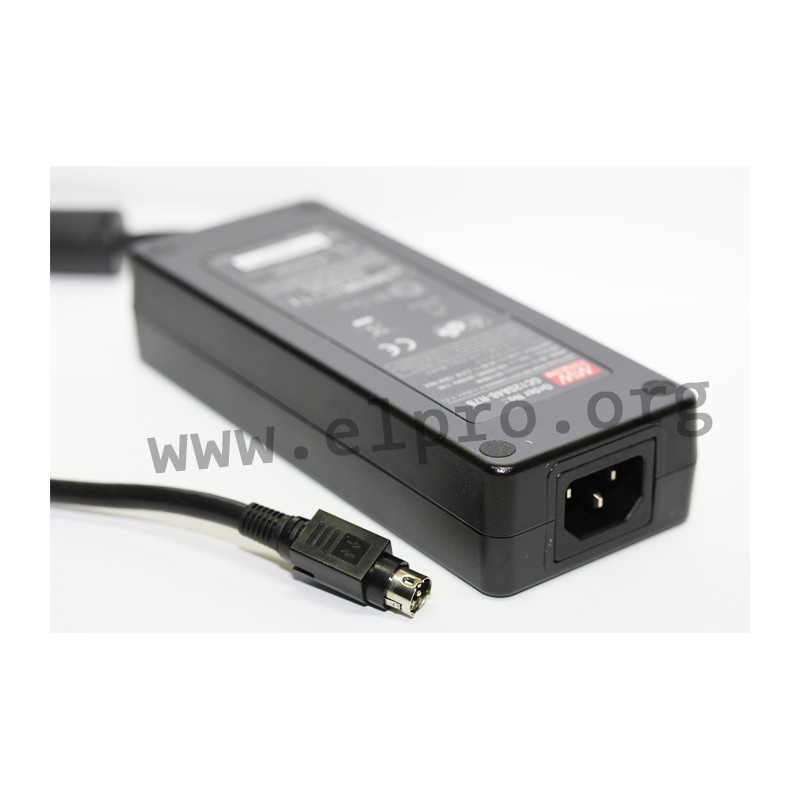

Mean Well battery charger series GC120A

2 stage battery chargers in a plastic housing with 120W, a universal input, a 2 color LED indicator and a low no-load power. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload (auto recovery), overtemperature, short circuit, overvoltage as well as reverse current. They have a built-in active PFC function and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GC120A12-R7B, GC120A12-R7B and GC120A48-R7B.

  • single output
  • output: 102 to 120,2W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 70A
  • AC current: 0,7A
  • overload protection: 90 to 110%
  • withstand voltage I/P-O/P: 3000V AC
  • insulation resistance I/P-O/P: 100MΩ
  • operating temperature: -30 to +70°C

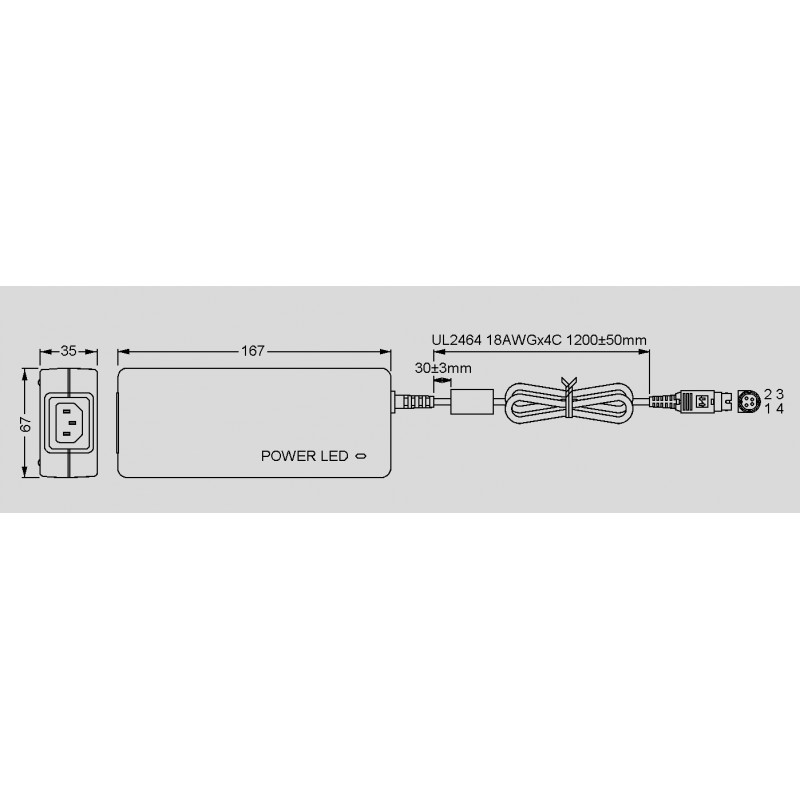

  • dimensions: 167x67x35mm
  • weight: 0,62kg

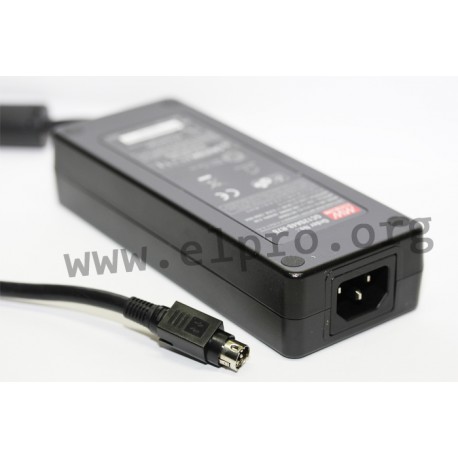

Meanwell GC120A series

GC120A24-R7B

37657 GC120A24-R7B GC120A24-R7B 4711287420158 Mean Well battery charger series GC120A. 2 stage battery chargers in a plastic housing with 120W, a universal input, a 2 color LED indicator and a low no-load power. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload (auto recovery), overtemperature, short circuit, overvoltage as well as reverse current. They have a built-in active PFC function and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GC120A12-R7B, GC120A12-R7B and GC120A48-R7B. single output output: 102 to 120,2W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 70A AC current: 0,7A overload protection: 90 to 110% withstand voltage I/P-O/P: 3000V AC insulation resistance I/P-O/P: 100MΩ operating temperature: -30 to +70°C dimensions: 167x67x35mm weight: 0,62kg

Specifications

manufacturer
Manufacturer's name GC120A24-R7B
GTIN 4711287420158
Output voltage [V] 27,2
Phase 2 phase
Recommended battery capacity [Ah] 20...65
Efficiency [%] 90
Output current range [A] 4,42
Output power [W] 120,2
Data Sheet

Unit price

35,69 €

Volume discounts

Quantity Unit price
50 + 34,99 €

Stock: 36
Further delivery:
CW 17/2025
