> Power supplies>Power supplies>Switching power supplies, open frame>Mean Well switching power supplies, 65W, 3"x2", open frame (PCB), EPS-65S series>EPS-65S-7.5

Manufacturers

EPS-65S-7.5

Mean Well power supply series EPS-65S

Switching power supplies in a compact 3"x2" housing (open frame) with 65W, a universal input and a low no-load power. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: EPS-65S-3.3, EPS-65S-5, EPS-65S-7.5, EPS-65S-12, EPS-65S-15, EPS-65S-24 and EPS-65S-48.

  • single output
  • output: 33 to 65,3W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • leakage current: <0,25mA
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 110g

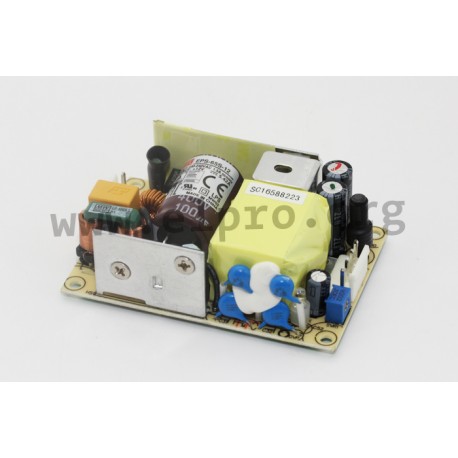

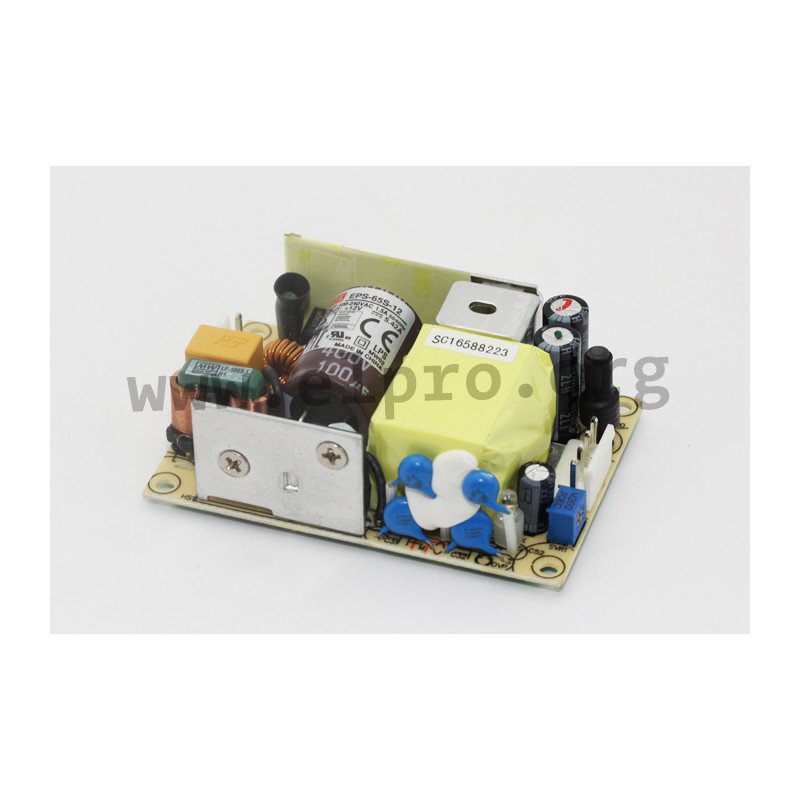

EPS-65S-7.5, Mean Well switching power supplies, 65W, 3"x2", open frame (PCB), EPS-65S series

EPS-65S-7.5

108321 EPS-65S-7.5 EPS-65S-7.5 4711287424675 Mean Well power supply series EPS-65S. Switching power supplies in a compact 3"x2" housing (open frame) with 65W, a universal input and a low no-load power. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well&nbsp;series:&nbsp;EPS-65S-3.3, EPS-65S-5, EPS-65S-7.5, EPS-65S-12, EPS-65S-15, EPS-65S-24 and EPS-65S-48. single output output: 33 to 65,3W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 50A leakage current: &lt;0,25mA overload protection: 115 to 150% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70&deg;C weight: 110g

Specifications

manufacturer
Manufacturer's name EPS-65S-7.5
GTIN 4711287424675
Output voltage [V] 7,5
Efficiency [%] 85
Output current range [A] 0...8
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mVp-p] 80
Data Sheet

Unit price

12,49 €

Volume discounts

Quantity Unit price
50 + 11,69 €

Stock: 29
Further delivery:
CW 09/2025
