EPS-65-7.5

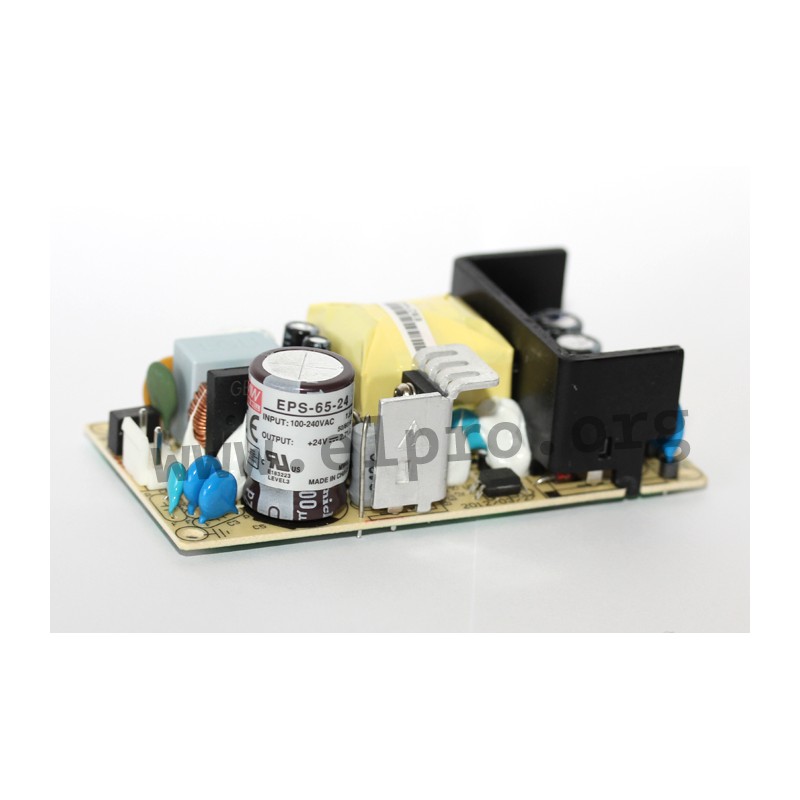

Mean Well power supply series EPS-65

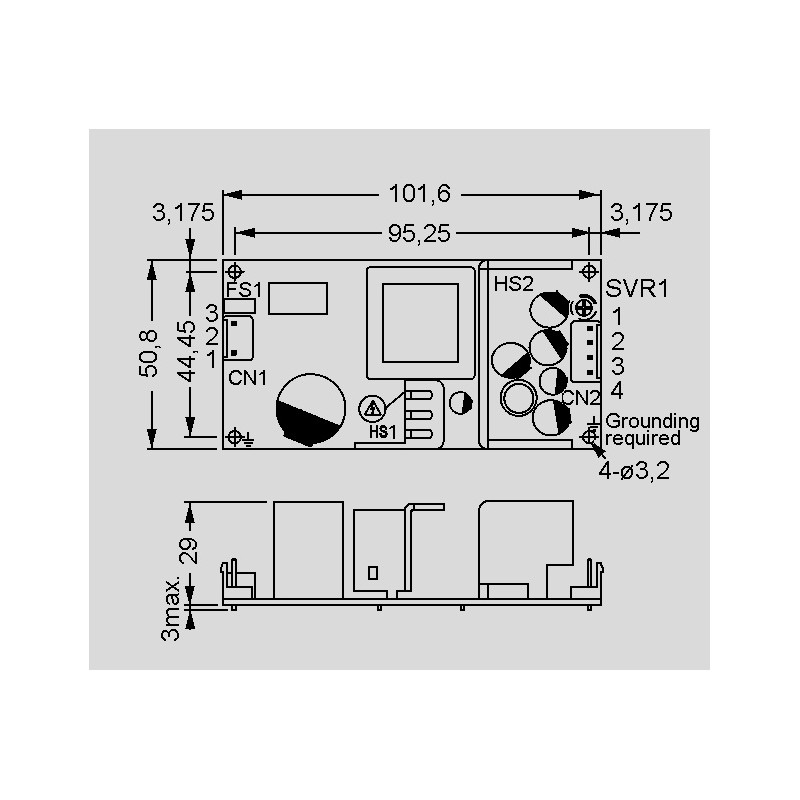

Switching power supplies in a compact 4"x2" housing (open frame) with 65W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: EPS-65-3.3, EPS-65-5, EPS-65-7.5, EPS-65-12, EPS-65-15, EPS-65-24, EPS-65-36 and EPS-65-48.

  • single output
  • output: 36,3 to 65,28W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 150g

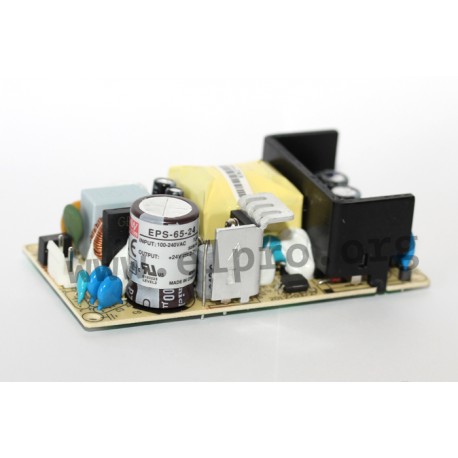

Meanwell EPS-65 series

EPS-65-7.5

37768 EPS-65-7.5 EPS-65-7.5 4711287424965 Mean Well power supply series EPS-65. Switching power supplies in a compact 4"x2" housing (open frame) with 65W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: EPS-65-3.3, EPS-65-5, EPS-65-7.5, EPS-65-12, EPS-65-15, EPS-65-24, EPS-65-36 and EPS-65-48. single output output: 36,3 to 65,28W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;2mA overload protection: 115 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 150g

Specifications

manufacturer
Manufacturer's name EPS-65-7.5
GTIN 4711287424965
Output voltage [V] 7,5
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...8
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mVp-p] 100
Data Sheet

Unit price

11,99 €

Volume discounts

Quantity Unit price
50 + 11,09 €

Stock: 0
Next incoming goods:
CW 49/2024
25 units

Further delivery:
CW 12/2025
