EPS-65-36-C

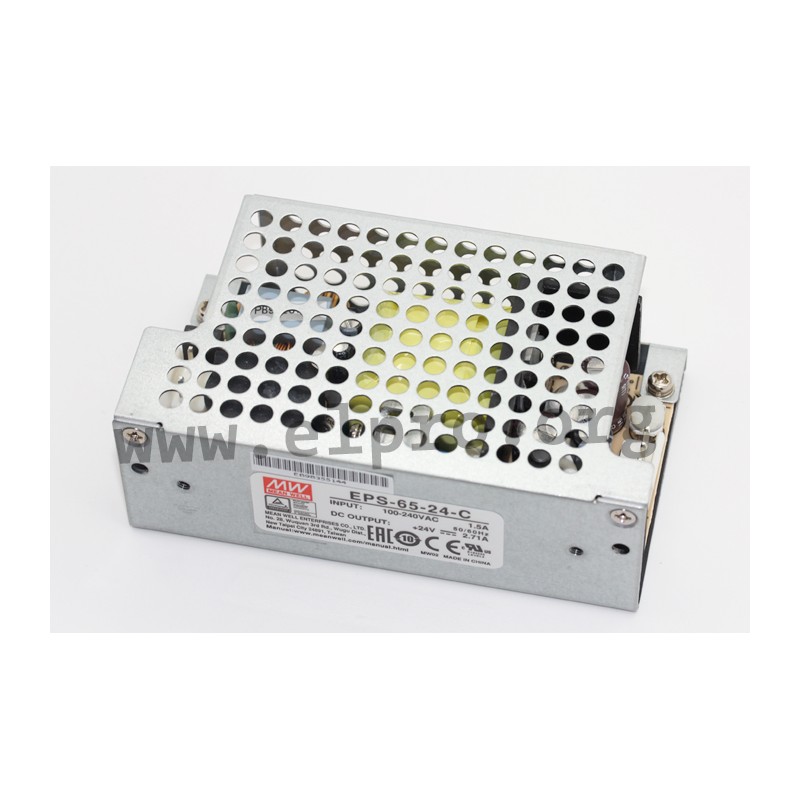

Mean Well power supply series EPS-65

Switching power supplies in a compact case (4"x2") with 65W, a low no load power consumption and a universal input. These devices are suitable for an operating altitude of up to 4000m and are protected against short circuit, overload (auto recovery) as well as overvoltage. They have a pin strip connection for nylon-crimp terminals and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: EPS-65-3.3-C, EPS-65-5-C, EPS-65-7.5-C, EPS-65-12-C, EPS-65-24-C, EPS-65-36-C and EPS-65-48-C.

  • single output
  • output: 36,3 to 65,28W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 2mA
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g

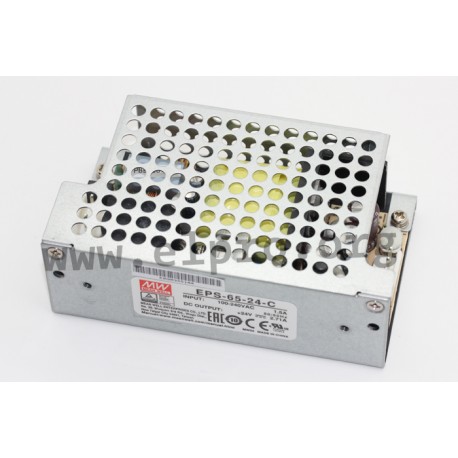

EPS-65-36-C, Mean Well switching power supplies, 65W, enclosed, EPS-65 series

EPS-65-36-C

123971 EPS-65-36-C EPS-65-36-C 4711287425023 Mean Well power supply series EPS-65. Switching power supplies in a compact case (4"x2") with 65W, a low no load power consumption and a universal input. These devices are suitable for an operating altitude of up to 4000m and are protected against short circuit, overload (auto recovery) as well as overvoltage. They have a pin strip connection for nylon-crimp terminals and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: EPS-65-3.3-C, EPS-65-5-C, EPS-65-7.5-C, EPS-65-12-C, EPS-65-24-C, EPS-65-36-C and EPS-65-48-C. single output output: 36,3 to 65,28W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A maximal leakage current: 2mA overload protection: 115 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name EPS-65-36-C
GTIN 4711287425023
Output voltage [V] 36
Efficiency [%] 89
Output current range [A] 0...1,81
Output voltage tolerance: [%] 1
Output power [W] 65,16
Ripple [mVp-p] 280
Data Sheet

Unit price

15,99 €

Volume discounts

Quantity Unit price
50 + 15,09 €

Stock: 43
Further delivery:
CW 09/2025
