EPS-45-15

Mean Well power supply series EPS-45

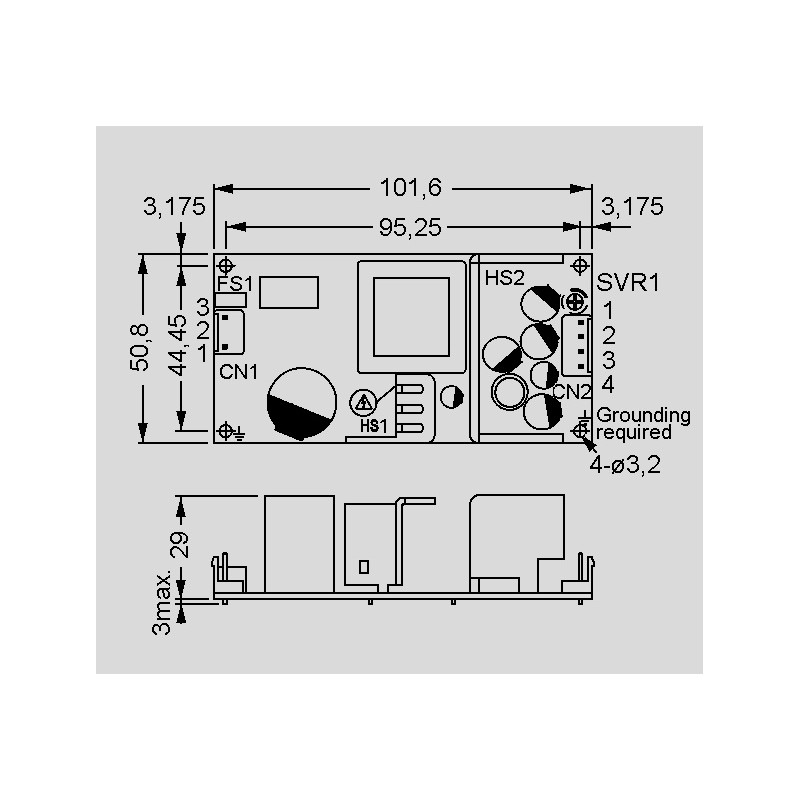

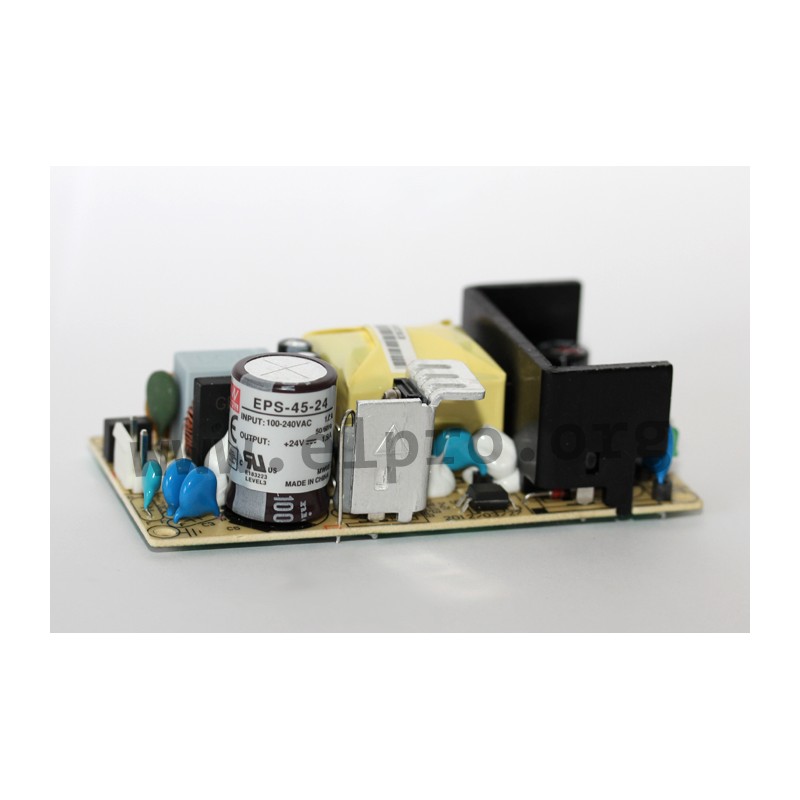

Switching power supplies in a compact housing (open frame, 4"x2") with 45W, a universal input and a low no-load power. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-45-3.3, EPS-45-5, EPS-45-7.5, EPS-45-12, EPS-45-15, EPS-45-24, EPS-45-36 and EPS-45-48.

  • single output
  • output: 26,4 to 48W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 140g
Meanwell EPS-45 series

EPS-45-15

37754 EPS-45-15 EPS-45-15 4711287424750 Mean Well power supply series EPS-45. Switching power supplies in a compact housing (open frame, 4"x2") with 45W, a universal input and a low no-load power. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 4000m and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-45-3.3, EPS-45-5, EPS-45-7.5, EPS-45-12, EPS-45-15, EPS-45-24, EPS-45-36 and EPS-45-48. single output output: 26,4 to 48W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;2mA overload protection: 115 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 140g

Specifications

manufacturer
Manufacturer's name EPS-45-15
GTIN 4711287424750
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...3
Output voltage tolerance: [%] 2
Output power [W] 45
Ripple [mVp-p] 150
Data Sheet

Unit price

11,69 €

Volume discounts

Quantity Unit price
50 + 10,99 €

Stock: 108
Further delivery:
CW 12/2025
