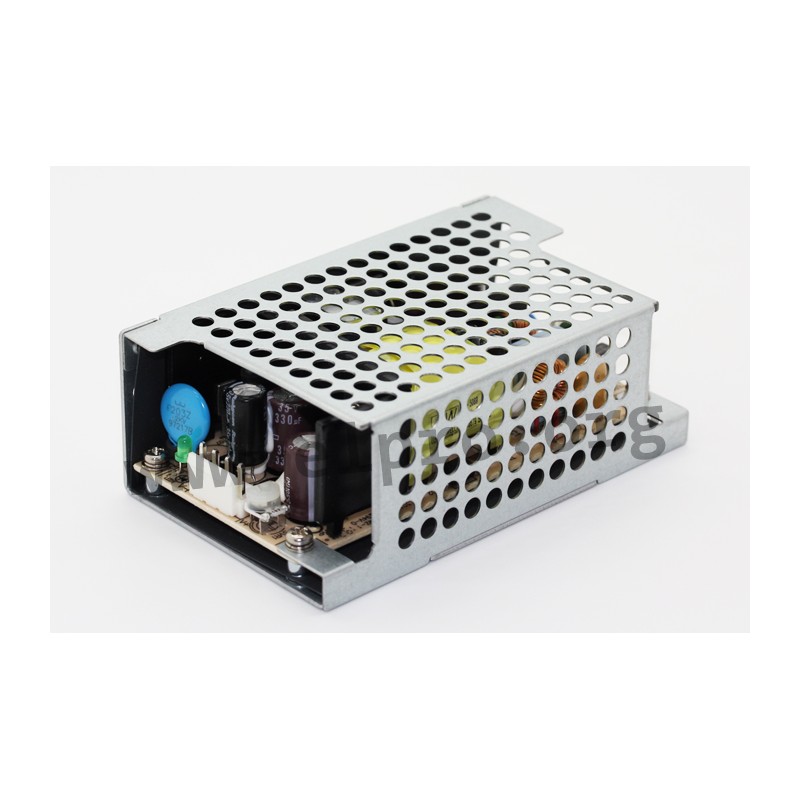

EPS-45-5-C

Mean Well power supply series EPS-45

Switching power supplies in a compact case (4"x2") with 45W, a universal input and a low no-load power consumption. These devices have a pin strip connection for nylon-crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: EPS-45-3.3-C, EPS-45-5-C, EPS-45-7.5-C, EPS-45-12-C, EPS-45-15-C, EPS-45-24-C, EPS-45-36-C and EPS-45-48-C.

  • single output
  • output: 26,4 to 48W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 2mA
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g
EPS-45-5-C, Mean Well switching power supplies enclosed, 45W, PCB type, EPS-45 series

EPS-45-5-C

123960 EPS-45-5-C EPS-45-5-C 4711287424811 Mean Well power supply series EPS-45. Switching power supplies in a compact case (4"x2") with 45W, a universal input and a low no-load power consumption. These devices have a pin strip connection for nylon-crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: EPS-45-3.3-C, EPS-45-5-C, EPS-45-7.5-C, EPS-45-12-C, EPS-45-15-C, EPS-45-24-C, EPS-45-36-C and EPS-45-48-C. single output output: 26,4 to 48W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A maximal leakage current: 2mA overload protection: 115 to 160% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name EPS-45-5-C
GTIN 4711287424811
Output voltage [V] 5
Efficiency [%] 82
Output current range [A] 0...8
Output voltage tolerance: [%] 2
Output power [W] 40
Ripple [mVp-p] 80
Data Sheet

Unit price

14,99 €

Volume discounts

Quantity Unit price
50 + 14,19 €

Stock: 17
Further delivery:
CW 17/2025
