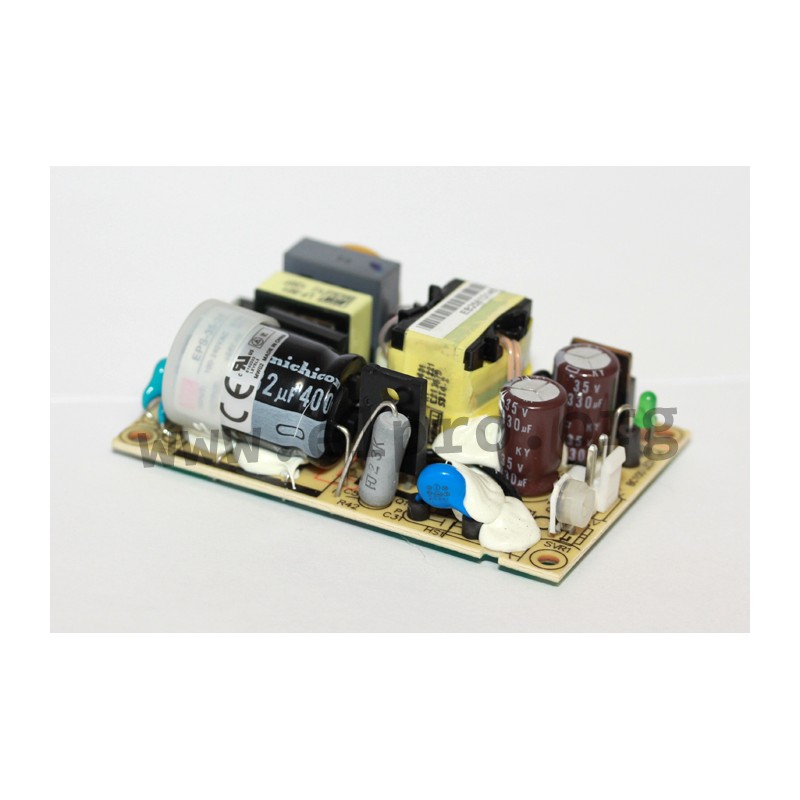

EPS-35-15

Mean Well power supply series EPS-35

Switching power supplies in a compact housing (open frame, 3"x2") with 35W, a universal input and a low no-load power. These devices have PC pins for nylon-crimp terminals and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-35-3.3, EPS-35-5, EPS-35-7.5, EPS-35-12, EPS-35-13.5, EPS-35-15, EPS-35-24, EPS-35-27, EPS-35-36 and EPS-35-48.

  • single output
  • output: 19,8 to 36W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1mA
  • overload protection: 115 to 170%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 85g

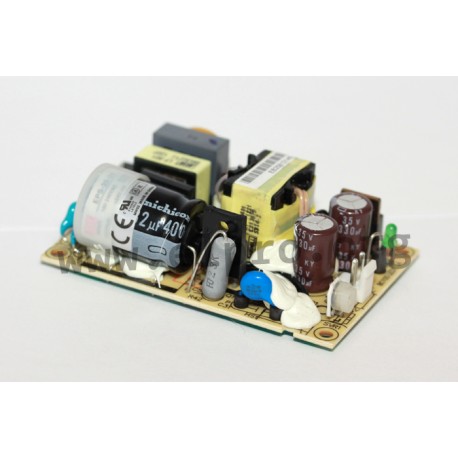

EPS-35-15

EPS-35-15

37745 EPS-35-15 EPS-35-15 4711287424477 Mean Well power supply series EPS-35. Switching power supplies in a compact housing (open frame, 3"x2") with 35W, a universal input and a low no-load power. These devices have PC pins for nylon-crimp terminals and are protected against overload (auto recovery), short circuit as well as&nbsp;overvoltage. They have a fanless design and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;EPS-35-3.3, EPS-35-5, EPS-35-7.5, EPS-35-12, EPS-35-13.5, EPS-35-15, EPS-35-24, EPS-35-27, EPS-35-36 and EPS-35-48. single output output: 19,8 to 36W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current: &lt;1mA overload protection: 115 to 170% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 85g

Specifications

manufacturer
Manufacturer's name EPS-35-15
GTIN 4711287424477
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 88
Output current range [A] 0...2,4
Output voltage tolerance: [%] 1
Output power [W] 36
Ripple [mVp-p] 100
Data Sheet

Unit price

10,89 €

Volume discounts

Quantity Unit price
50 + 10,19 €

Stock: 40
Further delivery:
CW 16/2025
