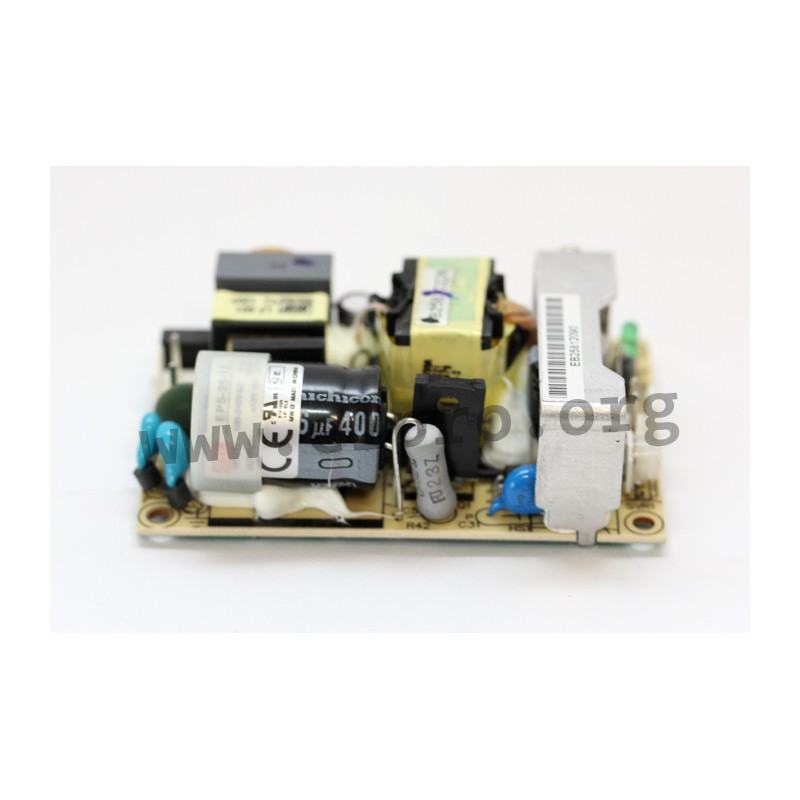

EPS-25-48

Mean Well power supply series EPS-25

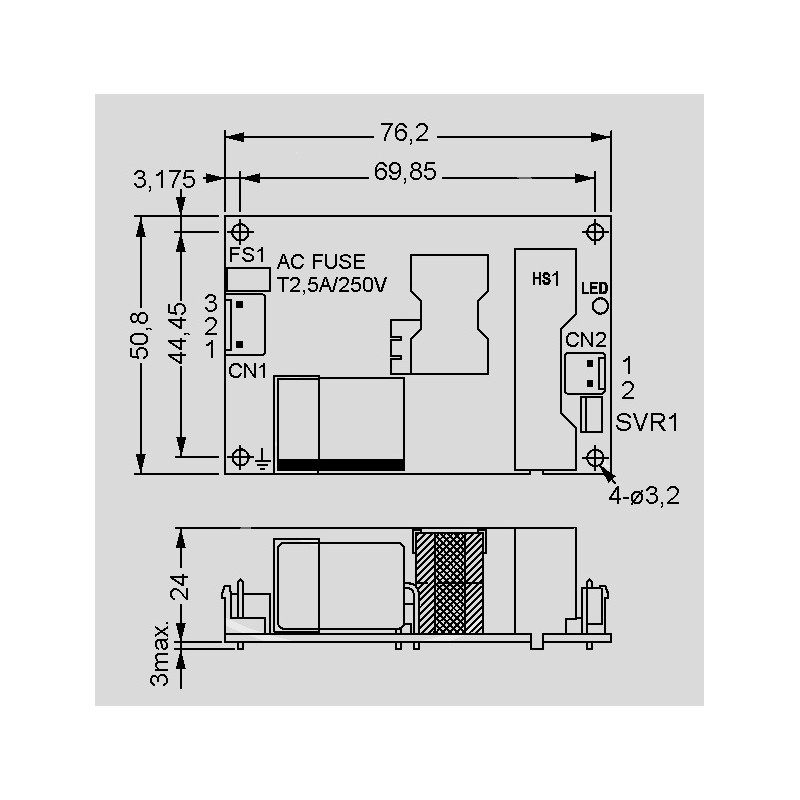

Switching power supplies in a compact housing (open frame, 3"x2") with 25W, a low no-load power and a universal input. These devices have a contact pin for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-25-3.3, EPS-25-5, EPS-25-7.5, EPS-25-12, EPS-25-15, EPS-25-24, EPS-25-27, EPS-25-36 and EPS-25-48.

  • single output
  • output: 16,5 to 25,65W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1mA
  • overload protection: 115 to 170%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 81g

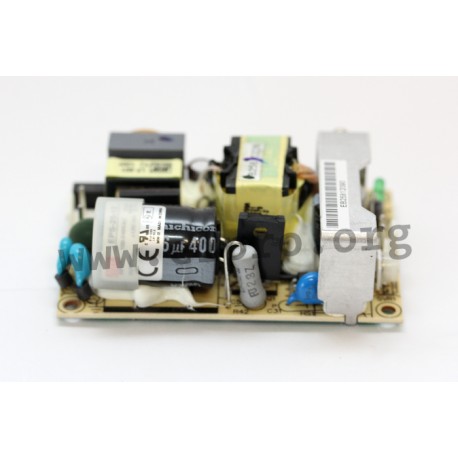

Meanwell EPS-25 series

EPS-25-48

37741 EPS-25-48 EPS-25-48 4711287424439 Mean Well power supply series EPS-25. Switching power supplies in a compact housing (open frame, 3"x2") with 25W, a low no-load power and a universal input. These devices have a contact pin for nylon-crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high efficiency and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-25-3.3, EPS-25-5, EPS-25-7.5, EPS-25-12, EPS-25-15, EPS-25-24, EPS-25-27, EPS-25-36 and EPS-25-48. single output output: 16,5 to 25,65W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 35A leakage current: &lt;1mA overload protection: 115 to 170% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 81g

Specifications

manufacturer
Manufacturer's name EPS-25-48
GTIN 4711287424439
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 90
Output current range [A] 0...0,53
Output voltage tolerance: [%] 1
Output power [W] 25,44
Ripple [mVp-p] 240
Data Sheet

Unit price

10,49 €

Volume discounts

Quantity Unit price
50 + 9,89 €

Stock: 29
Further delivery:
CW 12/2025
