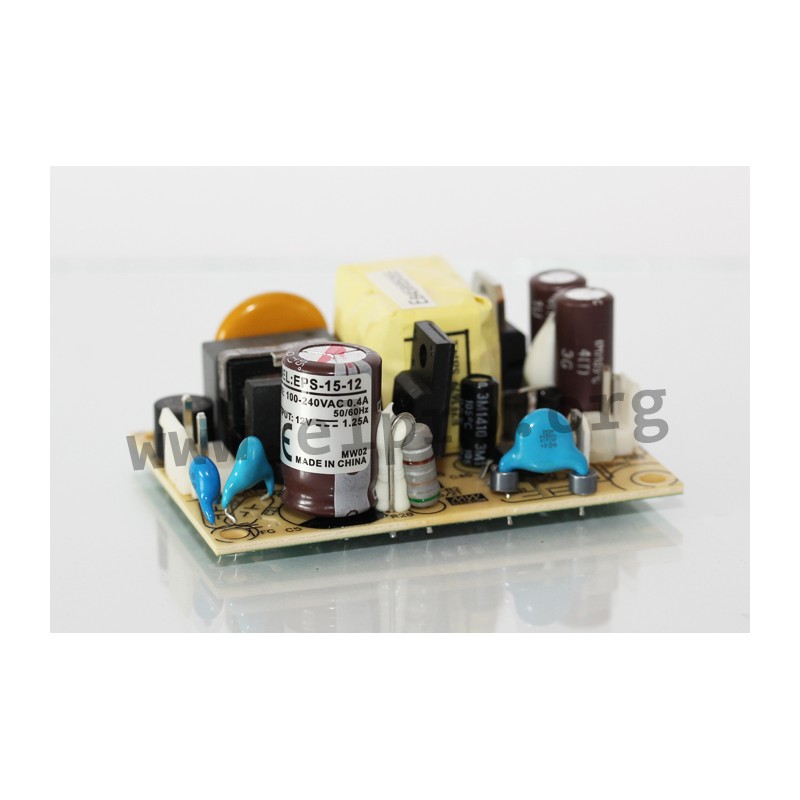

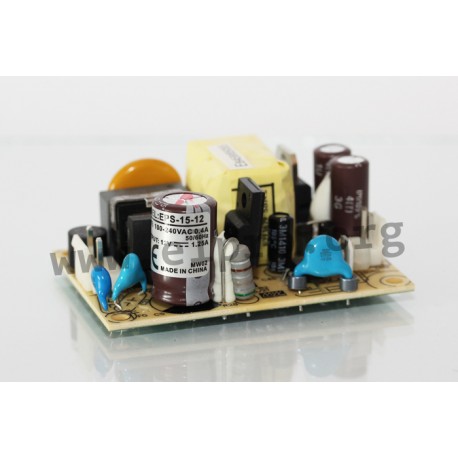

EPS-15-12

Mean Well power supply series ESP-15

Switching power supplies in a compact housing (open frame) with 15W, a universal input and a low no-load power. These devices have contact pins for nylon crimp terminals, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-15-3.3, EPS-15-5, EPS-15-7.5, EPS-15-12, EPS-15-15, EPS-15-24, EPS-15-27, EPS-15-36 and EPS-15-48.

  • single output
  • output: 9,9 to 15,12W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <1mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 57g
Meanwell EPS-15 series

EPS-15-12

41449 EPS-15-12 EPS-15-12 4711287424286 Mean Well power supply series ESP-15. Switching power supplies in a compact housing (open frame) with 15W, a universal input and a low no-load power. These devices have contact pins for nylon crimp terminals, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-15-3.3, EPS-15-5, EPS-15-7.5, EPS-15-12, EPS-15-15, EPS-15-24, EPS-15-27, EPS-15-36 and EPS-15-48. single output output: 9,9 to 15,12W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 45A leakage current: &lt;1mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 57g

Specifications

manufacturer
Manufacturer's name EPS-15-12
GTIN 4711287424286
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 82
Output current range [A] 0...1,38
Output voltage tolerance: [%] 1
Output power [W] 15
Ripple [mVp-p] 80
Data Sheet

Unit price

5,79 €

Volume discounts

Quantity Unit price
50 + 5,29 €

Stock: 924
Next incoming goods:
CW 05/2025
600 units

Further delivery:
CW 16/2025
