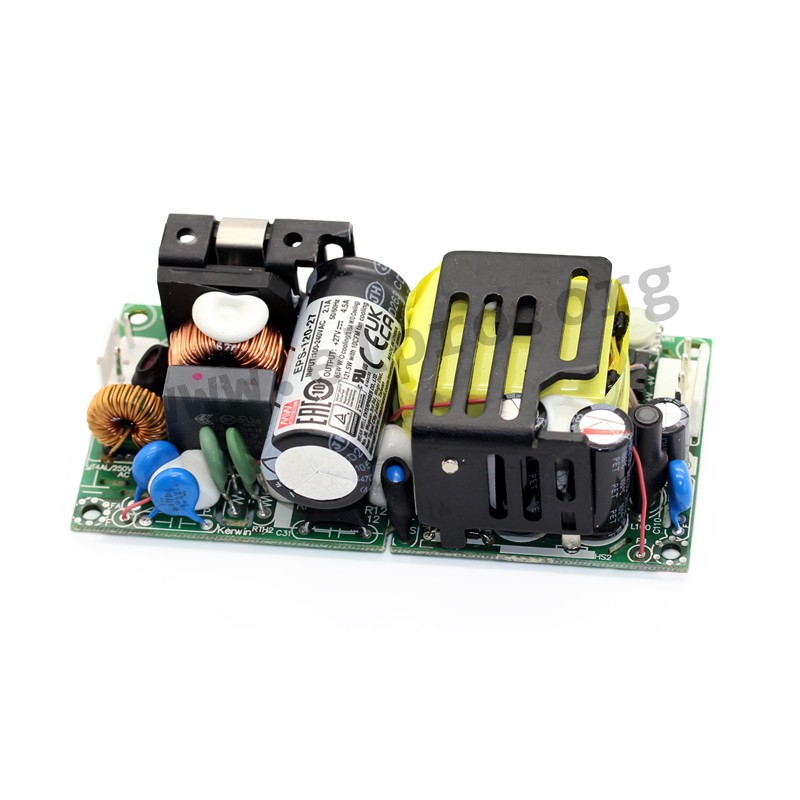

EPS-120-27

Mean Well power supply series EPS-120

Switching power supplies in a compact 4"x2" housing (open frame) with 120W (10cfm forced air), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (<0,3W) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-120-12, EPS-120-15, EPS-120-24, EPS-120-27 and EPS-120-48.

  • single output
  • output: 120 to 121,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 150g

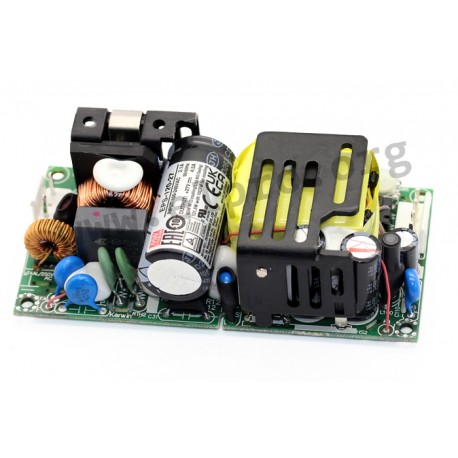

EPS-120-27, Mean Well switching power supplies, 120W, open frame (PCB), EPS-120 series

EPS-120-27

108329 EPS-120-27 EPS-120-27 4711287425085 Mean Well power supply series EPS-120. Switching power supplies in a compact 4"x2" housing (open frame) with 120W (10cfm forced air), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (&lt;0,3W) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-120-12, EPS-120-15, EPS-120-24, EPS-120-27 and EPS-120-48. single output output: 120 to 121,5W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 115 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 150g

Specifications

manufacturer
Manufacturer's name EPS-120-27
GTIN 4711287425085
Output voltage [V] 27
Efficiency [%] 90
Output current range [A] 4,5
Output voltage tolerance: [%] 1
Output power [W] 121,5
Ripple [mVp-p] 150
Data Sheet

Unit price

18,29 €

Volume discounts

Quantity Unit price
50 + 17,09 €

Stock: 14
