EPP-150-12

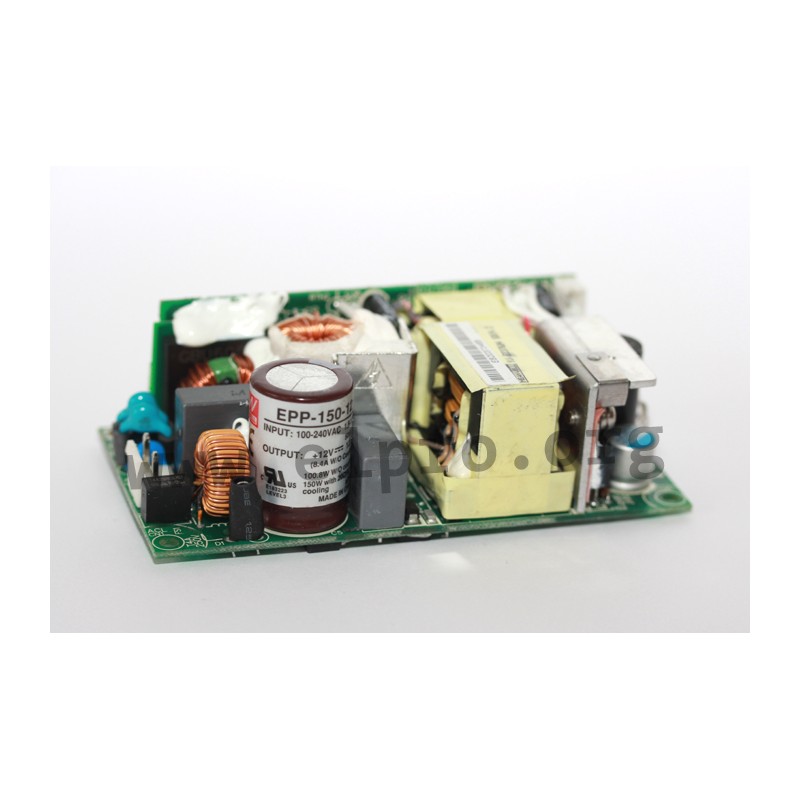

Mean Well power supply series EPP-150

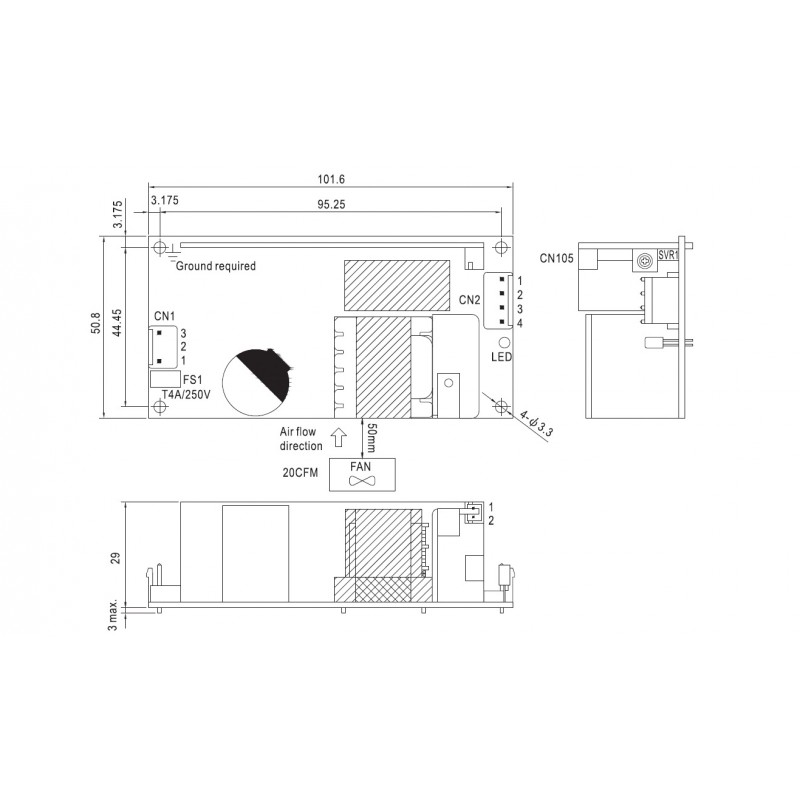

Switching power supplies in a 4"x2" housing (open frame) with 150W (20cfm forced air), a universal input, a built-in auxiliary output (12V/0,3A), a low no-load power (<0,5W) and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-150-12, EPP-150-15, EPP-150-24, EPP-150-27 and EPP-150-48.

  • single output
  • output: 150 to 150,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <2mA
  • overload protection: 105 to 145%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 200g

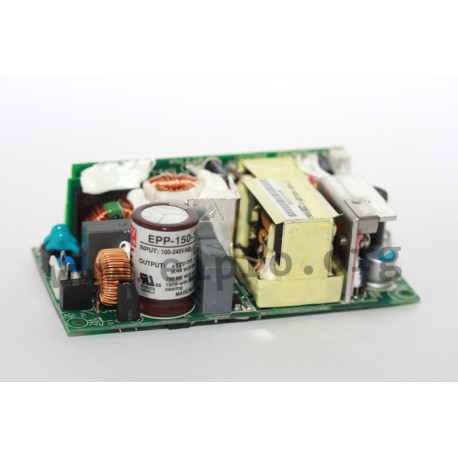

Meanwell EPP-150 series

EPP-150-12

37774 EPP-150-12 EPP-150-12 4711287425153 Mean Well power supply series EPP-150. Switching power supplies in a 4"x2" housing (open frame) with 150W (20cfm forced air), a universal input, a built-in auxiliary output (12V/0,3A), a low no-load power (&lt;0,5W) and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-150-12, EPP-150-15, EPP-150-24, EPP-150-27 and EPP-150-48. single output output: 150 to 150,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;2mA overload protection: 105 to 145% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 200g

Specifications

manufacturer
Manufacturer's name EPP-150-12
GTIN 4711287425153
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 91,5
Output current range [A] 0...8,4
Output voltage tolerance: [%] 2
Output power [W] 100,8
Ripple [mVp-p] 130
Data Sheet

Unit price

31,19 €

Volume discounts

Quantity Unit price
50 + 29,29 €

Stock: 0
Next incoming goods:
CW 06/2025
121 units

Further delivery:
CW 16/2025
