EPP-500-18

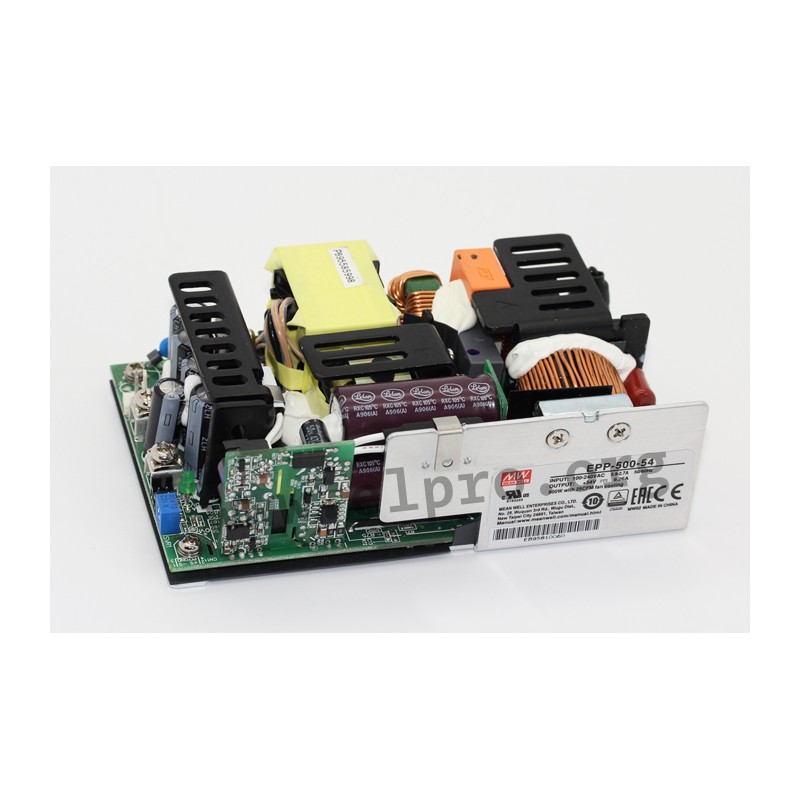

Mean Well power supply series EPP-500

Switching power supplies in a compact 5"x3" housing (open frame) with 320W (500W with 25cfm forced air), a built-in auxiliary power (12V/0,5A), an LED indicator for power on, a low no-load power (<0,5W), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN60335-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-500-12, EPP-500-15, EPP-500-18, EPP-500-24, EPP-500-27, EPP-500-36, EPP-500-48 and EPP-500-54.

  • single output
  • output: 499,2 to 500,4W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <0,75mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 460g

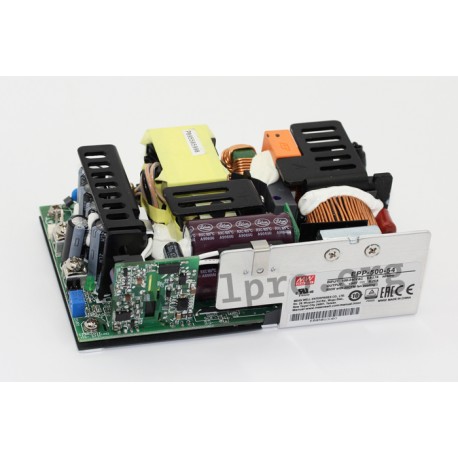

EPP-500-18, MeanWell, Mean Well switching power supplies open frame, 500W forced air, Green PCB type, EPP-500 series

EPP-500-18

113376 EPP-500-18 EPP-500-18 4711287425399 Mean Well power supply series EPP-500. Switching power supplies in a compact 5"x3" housing (open frame) with 320W (500W with 25cfm forced air), a built-in auxiliary power (12V/0,5A), an LED&nbsp;indicator for power on, a low no-load power (&lt;0,5W), a universal input and a pin strip connection for nylon crimp&nbsp;terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with&nbsp;UL/EN62368-1, EN60335-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;EPP-500-12, EPP-500-15, EPP-500-18, EPP-500-24, EPP-500-27, EPP-500-36, EPP-500-48 and&nbsp;EPP-500-54. single output output: 499,2 to 500,4W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;0,75mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 460g

Specifications

manufacturer
Manufacturer's name EPP-500-18
GTIN 4711287425399
Output voltage [V] 18
Efficiency [%] 92,5
Output current [A] 27,8
Output voltage tolerance: [%] 3
Output power [W] 500,4
Ripple [mVp-p] 200
Data Sheet

Unit price

75,79 €

Volume discounts

Quantity Unit price
50 + 74,19 €

Stock: 24
Further delivery:
CW 12/2025
