EPP-400-36

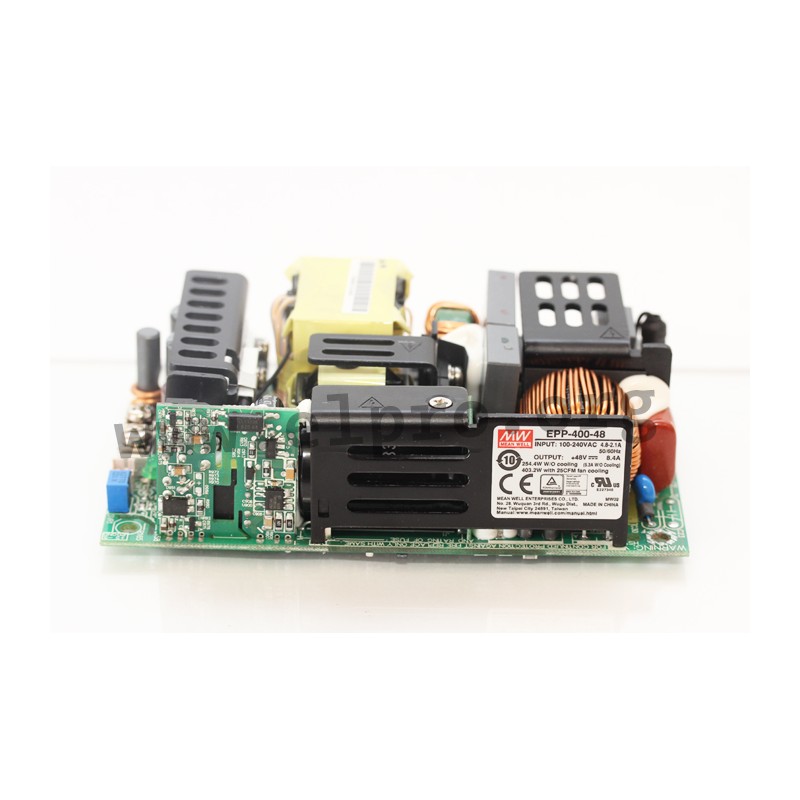

Mean Well power supply series EPP-400

Switching power supplies in a compact 5"x3" housing (open frame) with 250W (400W with 25cfm forced air), a low no-load power (<0,5W), a built-in auxiliary power (12V/0,5A), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-400-12, EPP-400-15, EPP-400-24, EPP-400-27, EPP-400-36 and EPP-400-48.

  • single output
  • output: 399,6 to 403,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <0,75mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 390g

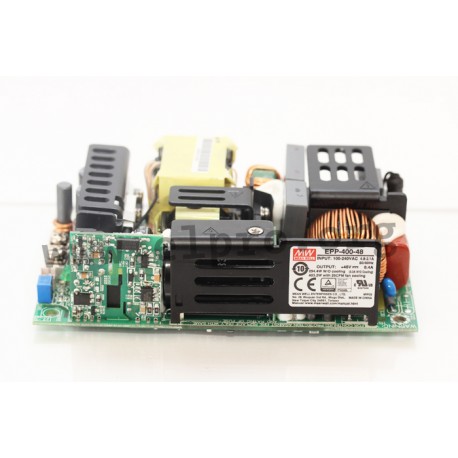

EPP-400 series

EPP-400-36

108340 EPP-400-36 EPP-400-36 4711287425351 Mean Well power supply series EPP-400. Switching power&nbsp;supplies in a compact 5"x3" housing (open frame) with 250W (400W with 25cfm forced air), a low no-load power (&lt;0,5W), a built-in auxiliary power (12V/0,5A), a universal input and a pin strip connection for nylon crimp terminals. These&nbsp;devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to&nbsp;5000m and comply with&nbsp;EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the&nbsp;following types of this Mean Well series:&nbsp;EPP-400-12, EPP-400-15, EPP-400-24, EPP-400-27, EPP-400-36 and EPP-400-48. single output output: 399,6 to 403,2W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A leakage current: &lt;0,75mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 390g

Specifications

manufacturer
Manufacturer's name EPP-400-36
GTIN 4711287425351
Output voltage [V] 36
Efficiency [%] 93
Output current range [A] 11,2
Output voltage tolerance: [%] 1
Output power [W] 403,2
Ripple [mVp-p] 250
Data Sheet

Unit price

59,79 €

Volume discounts

Quantity Unit price
50 + 57,79 €

Stock: 331
Further delivery:
CW 16/2025
