EPP-300-24

Mean Well power supply series EPP-300

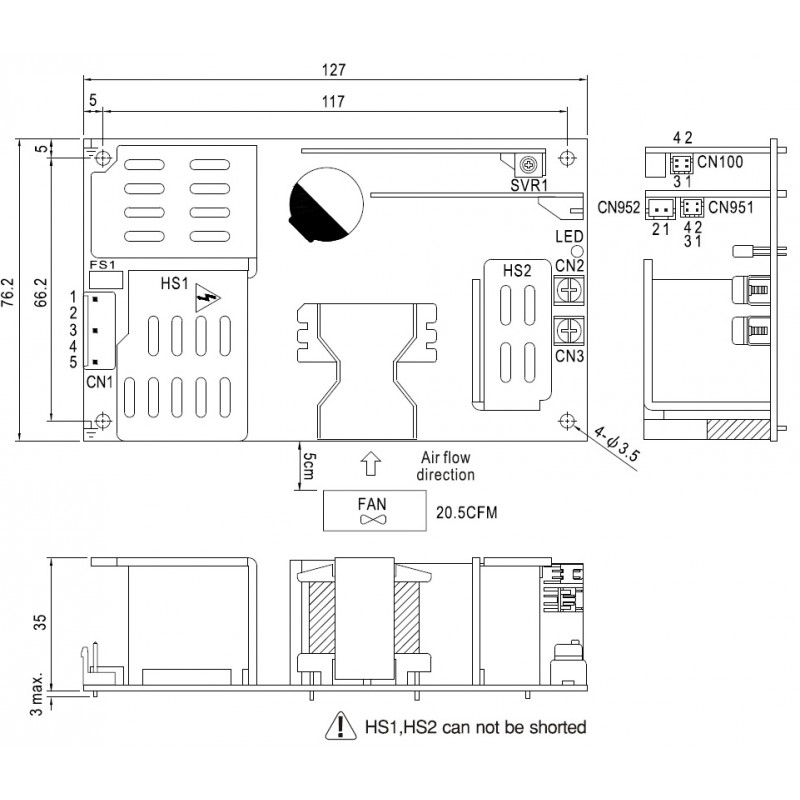

Switching power supplies in a 5"x3" housing (open frame) with 200W resp. 300W with forced air (20,5cfm), a built-in auxiliary output (12V/0,5A), a universal input and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-300-12, EPP-300-15, EPP-300-24, EPP-300-27 and EPP-300-48.

  • single output
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • leakage current: <2mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 370g

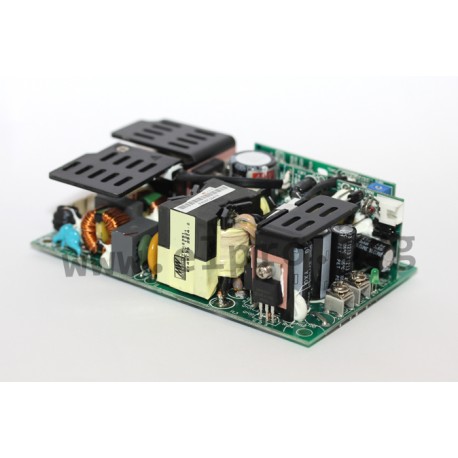

Meanwell EPP-300 series

EPP-300-24

37781 EPP-300-24 EPP-300-24 4711287425276 Mean Well power supply series EPP-300. Switching power supplies in a 5"x3" housing (open frame) with 200W resp. 300W with forced air (20,5cfm), a built-in auxiliary output (12V/0,5A), a universal input and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-300-12, EPP-300-15, EPP-300-24, EPP-300-27 and EPP-300-48. single output input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 80A leakage current: &lt;2mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 370g

Specifications

manufacturer
Manufacturer's name EPP-300-24
GTIN 4711287425276
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 92,5
Output current range [A] 0...8,33
Output voltage tolerance: [%] 2
Output power [W] 200
Ripple [mVp-p] 150
Data Sheet

Unit price

49,49 €

Volume discounts

Quantity Unit price
50 + 47,89 €

Stock: 23
Next incoming goods:
CW 05/2025
50 units

Further delivery:
CW 09/2025
