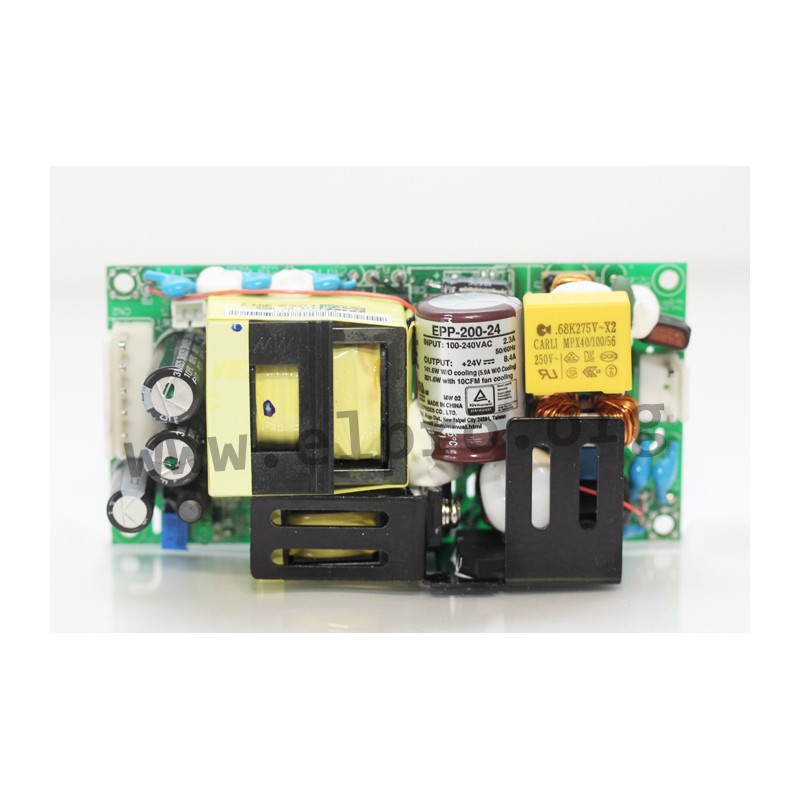

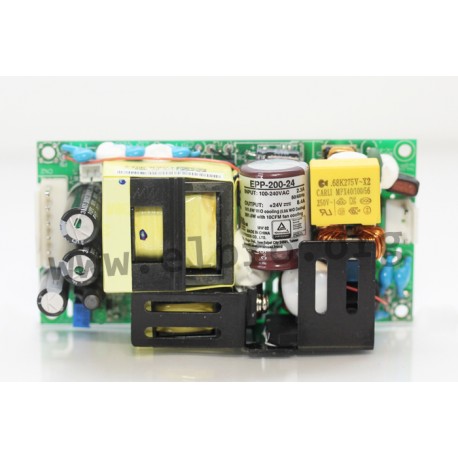

EPP-200-12

Mean Well power supply series EPP-200

Switching power supplies in a 4"x2" housing (open frame) with 140W resp. 200W with forced air (10cfm), a low no-load power (<0,5W), a built-in auxiliary output (12V/0,5A) and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: EPP-200-12, EPP-200-15, EPP-200-24, EPP-200-27 and EPP-200-48.

  • single output
  • output: 200,4 to 202,5W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 190g
EPP-200 series

EPP-200-12

108331 EPP-200-12 EPP-200-12 4711287425207 Mean Well power supply series EPP-200. Switching power supplies in a 4"x2" housing (open frame) with 140W resp. 200W with forced air (10cfm), a low no-load power (&lt;0,5W), a&nbsp;built-in auxiliary output (12V/0,5A) and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very&nbsp;efficient and comply with&nbsp;UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;EPP-200-12, EPP-200-15, EPP-200-24, EPP-200-27 and EPP-200-48. single output output: 200,4 to 202,5W input voltage:&nbsp;80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 190g

Specifications

manufacturer
Manufacturer's name EPP-200-12
GTIN 4711287425207
Output voltage [V] 12
Efficiency [%] 93
Output current range [A] 16,7
Output voltage tolerance: [%] 2
Output power [W] 200,4
Ripple [mVp-p] 100
Data Sheet

Unit price

35,09 €

Volume discounts

Quantity Unit price
50 + 33,89 €

Stock: 46
Next incoming goods:
CW 05/2025
72 units

Further delivery:
CW 09/2025
