> Power supplies>Power supplies>Switching power supplies, open frame>Mean Well switching power supplies, 120W, 3"x2", open frame (PCB), EPP-120S series>EPP-120S-27

Manufacturers

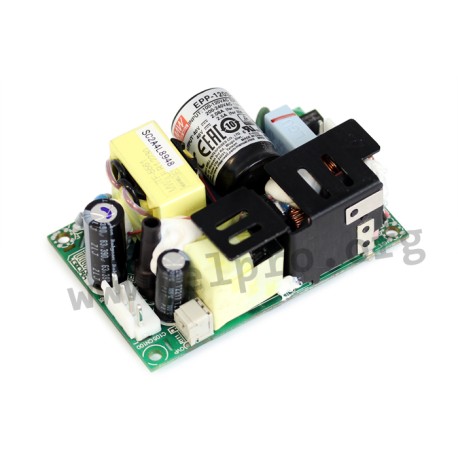

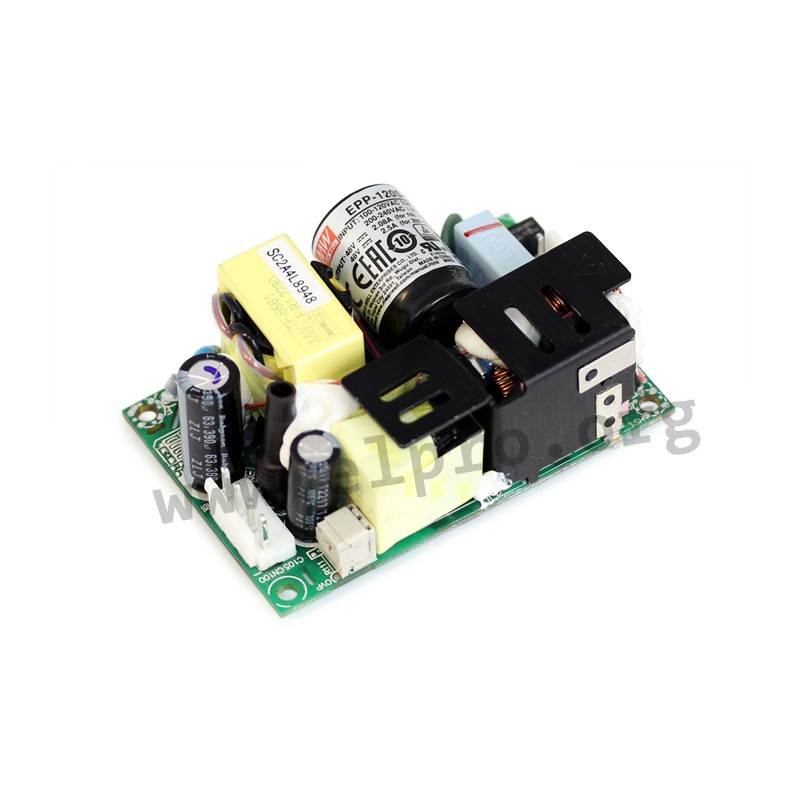

EPP-120S-27

Mean Well power supply series EPP-120S

Switching power supplies in an open frame type 3"x2" housing with 120W, a low no-load power (<0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high efficiency and comply with EN62368-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-120S-12, EPP-120S-15, EPP-120S-24, EPP-120S-27 and EPP-120S-48.

  • single output
  • output: 114 to 120W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 130 to 160%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +85°C
  • weight: 130g
EPP-120S-27, Mean Well switching power supplies, 120W, 3"x2", open frame (PCB), EPP-120S series

EPP-120S-27

114190 EPP-120S-27 EPP-120S-27 4711287424712 Mean Well power supply series EPP-120S. Switching power supplies in an open frame type 3"x2" housing with 120W, a low no-load power (&lt;0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a high efficiency and comply with EN62368-1, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-120S-12, EPP-120S-15, EPP-120S-24, EPP-120S-27 and EPP-120S-48. single output output: 114 to 120W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 130 to 160% withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +85°C weight: 130g

Specifications

manufacturer
Manufacturer's name EPP-120S-27
GTIN 4711287424712
Output voltage [V] 27
Efficiency [%] 94
Output current [A] 4,44
Output voltage tolerance: [%] 1
Output power [W] 119,9
Ripple [mVp-p] 150
Data Sheet

Unit price

25,99 €

Volume discounts

Quantity Unit price
50 + 24,49 €

Stock: 6
Further delivery:
CW 09/2025
