EPP-100-27

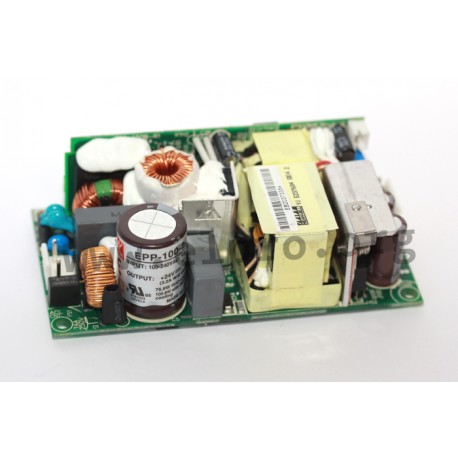

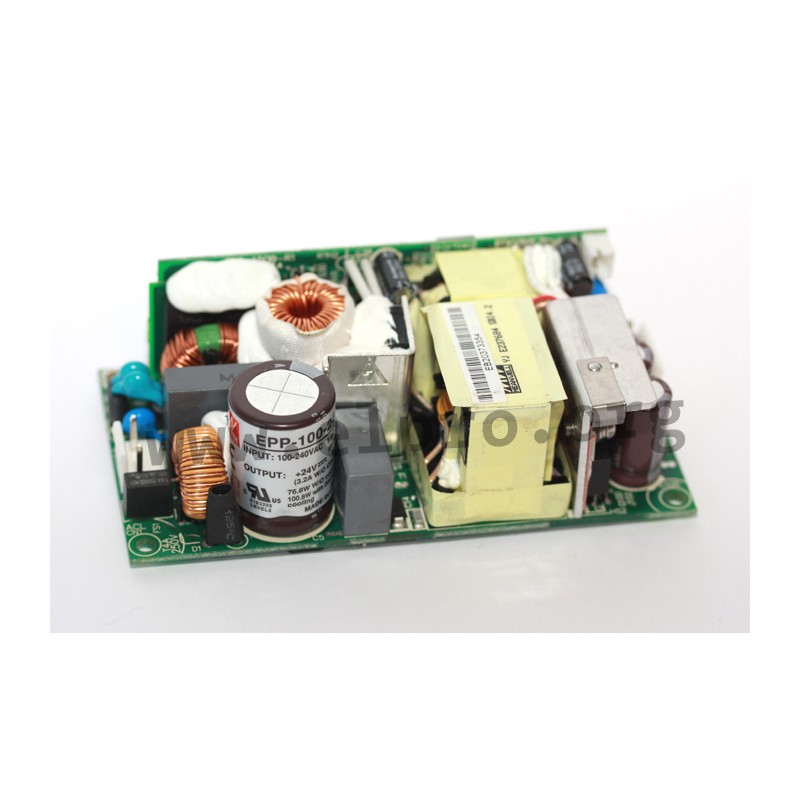

Mean Well power supply series EPP-100

Switching power supplies in a 4"x2" housing (open frame) with 100W (with 20cfm forced air), a low no-load power, a built-in auxiliary output (12V/0,3A), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-100-12, EPP-100-15, EPP-100-24, EPP-100-27 and EPP-100-48.

  • single output
  • output: 75 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <2mA
  • overload protection: 105 to 145%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 200g

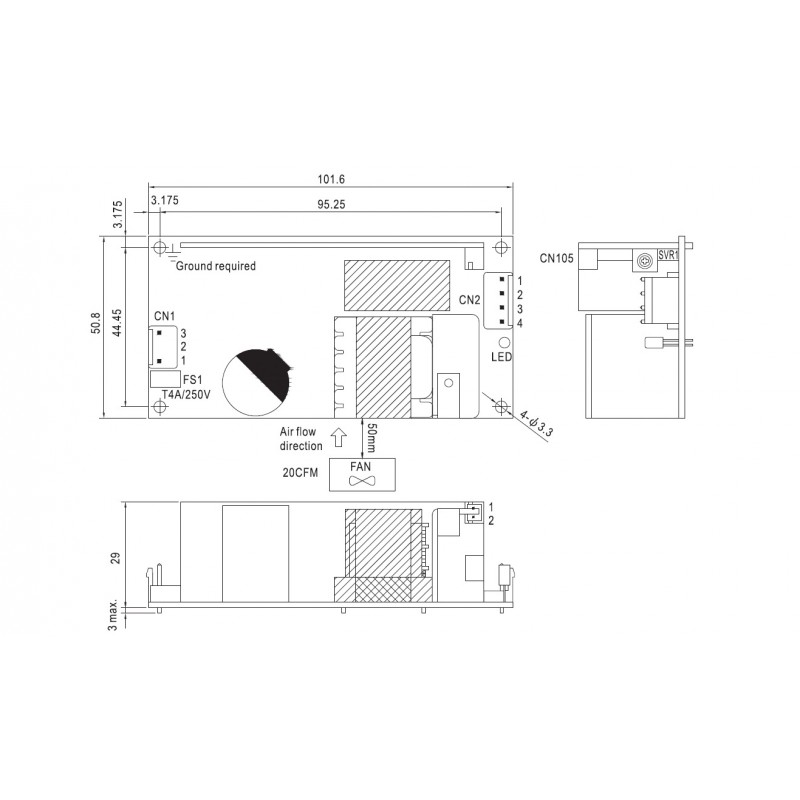

dimensions and terminal pin assignment EPP-100

EPP-100-27

37772 EPP-100-27 EPP-100-27 4711287425139 Mean Well power supply series EPP-100. Switching power supplies in a 4"x2" housing (open frame) with 100W (with 20cfm forced air), a low no-load power, a built-in auxiliary output (12V/0,3A), a universal input and a pin strip connection for nylon&nbsp;crimp terminals. These devices&nbsp;have a built-in active PFC function and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. They are very&nbsp;efficient and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types&nbsp;of this Mean Well series:&nbsp;EPP-100-12, EPP-100-15, EPP-100-24, EPP-100-27 and EPP-100-48. single output output: 75 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;2mA overload protection: 105 to 145% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 200g

Specifications

manufacturer
Manufacturer's name EPP-100-27
GTIN 4711287425139
Output voltage [V] 27
Phase 2 phase
Efficiency [%] 92,5
Output current range [A] 0...2,8
Output voltage tolerance: [%] 1
Output power [W] 75,6
Ripple [mVp-p] 240
Data Sheet

Unit price

33,59 €

Volume discounts

Quantity Unit price
50 + 31,59 €

Stock: 36
Further delivery:
CW 09/2025
