EPP-100-24

Mean Well power supply series EPP-100

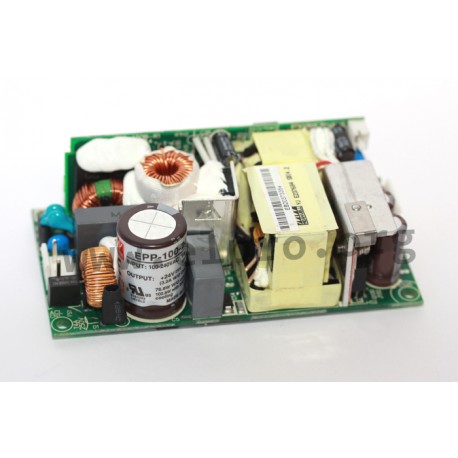

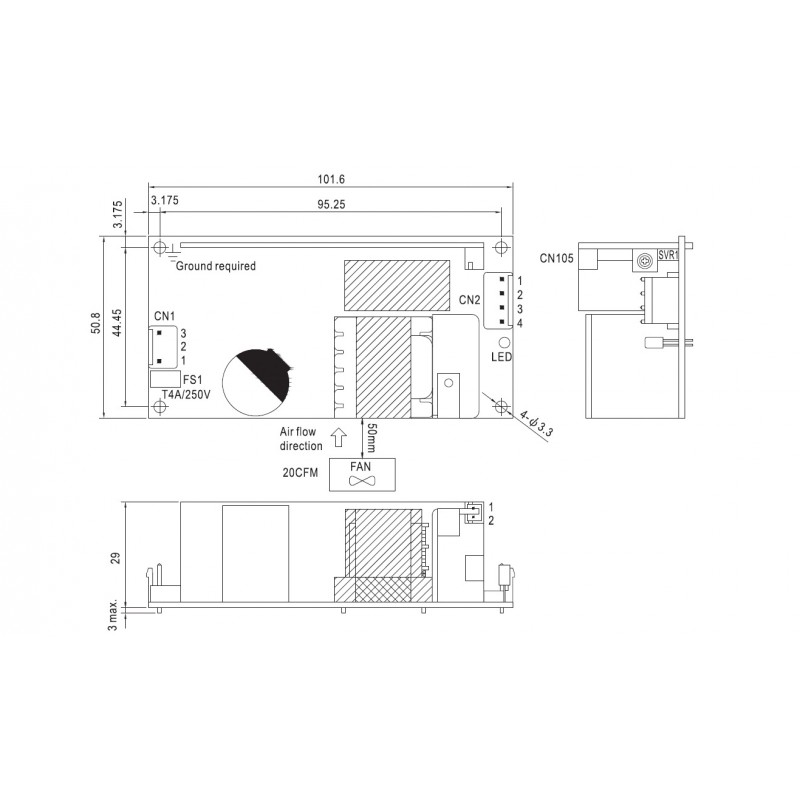

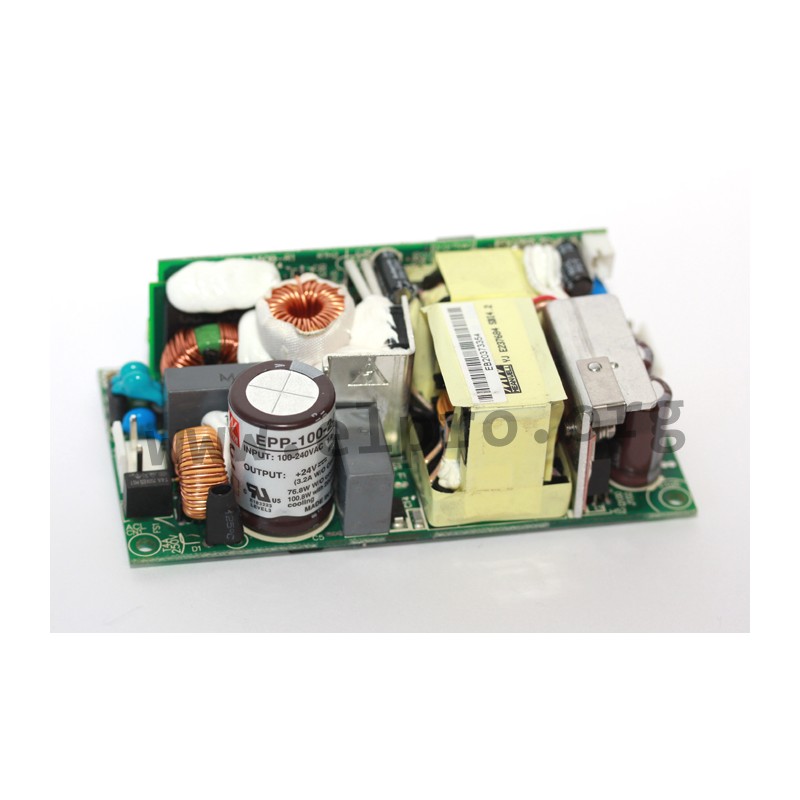

Switching power supplies in a 4"x2" housing (open frame) with 100W (with 20cfm forced air), a low no-load power, a built-in auxiliary output (12V/0,3A), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-100-12, EPP-100-15, EPP-100-24, EPP-100-27 and EPP-100-48.

  • single output
  • output: 75 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <2mA
  • overload protection: 105 to 145%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 200g
Meanwell EPP-100 series

EPP-100-24

37771 EPP-100-24 EPP-100-24 4711287425122 Mean Well power supply series EPP-100. Switching power supplies in a 4"x2" housing (open frame) with 100W (with 20cfm forced air), a low no-load power, a built-in auxiliary output (12V/0,3A), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-100-12, EPP-100-15, EPP-100-24, EPP-100-27 and EPP-100-48. single output output: 75 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;2mA overload protection: 105 to 145% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 200g

Specifications

manufacturer
Manufacturer's name EPP-100-24
GTIN 4711287425122
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 92
Output current range [A] 0...3,2
Output voltage tolerance: [%] 1
Output power [W] 76,8
Ripple [mVp-p] 240
Data Sheet

Unit price

29,59 €

Volume discounts

Quantity Unit price
50 + 27,79 €

Stock: 171
Further delivery:
CW 16/2025
