ENP-360-48

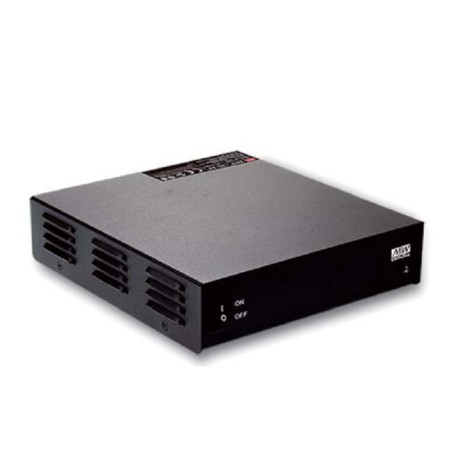

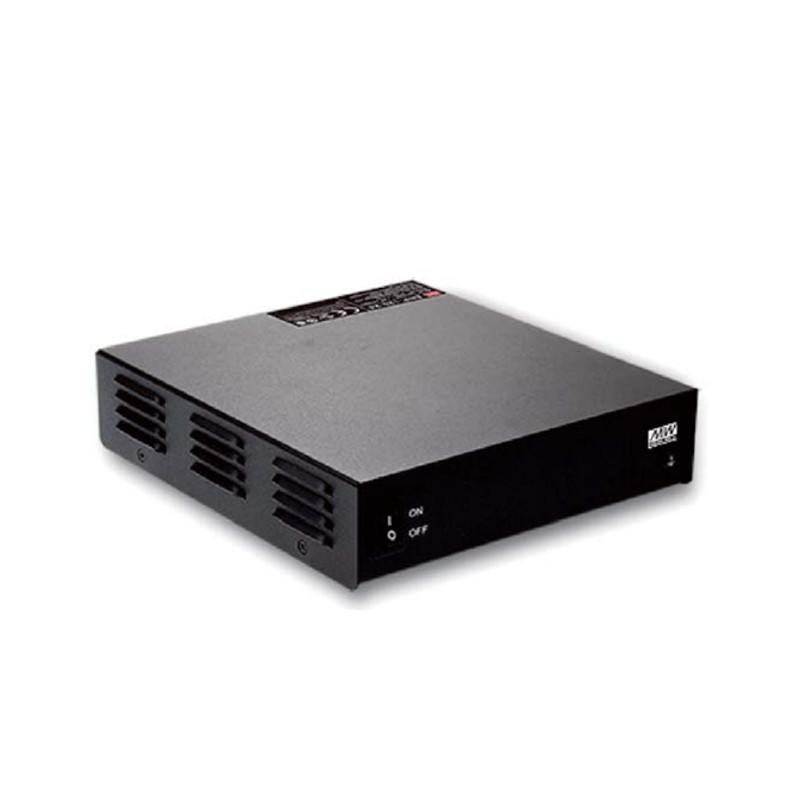

Mean Well charger series ENP-360

Desktop switching power supplies in a compact housing (7" width) with 360W, a universal input, energy efficiency Level VI and a very low no load power. These devices have a built-in active PFc function and comply with EN62368-1 as well as EN55032 class B. They have a fanless design, a peak load capability of up to 125% and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ENP-360-12, ENP-360-24 and ENP-360-48.

  • single output
  • output: 359W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • leakage current: <3,5mA
  • overload protection: 110 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1500g
ENP-360-48, Mean Well desktop battery chargers, 360W, energy efficiency Level VI, ENP-360 series

ENP-360-48

245003 ENP-360-48 ENP-360-48 4711287420912 Mean Well charger series ENP-360. Desktop switching power supplies in a compact housing (7" width) with 360W, a universal input, energy efficiency Level VI and a very low no load power. These devices have a built-in active PFc function and comply with EN62368-1 as well as EN55032 class B. They have a fanless design, a peak load capability of up to 125% and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ENP-360-12, ENP-360-24 and ENP-360-48. single output output: 359W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A no-load power: &lt;0,5W leakage current: &lt;3,5mA overload protection: 110 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 1500g

Specifications

manufacturer
Manufacturer's name ENP-360-48
GTIN 4711287420912
Output voltage [V] 55,2
Efficiency [%] 94
Output current [A] 6,5
Output voltage tolerance: [%] 1
Output power [W] 359
Ripple [mVp-p] 350
Data Sheet

Unit price

84,39 €

Stock: 0
Further delivery:
CW 17/2025
