ENP-240-24

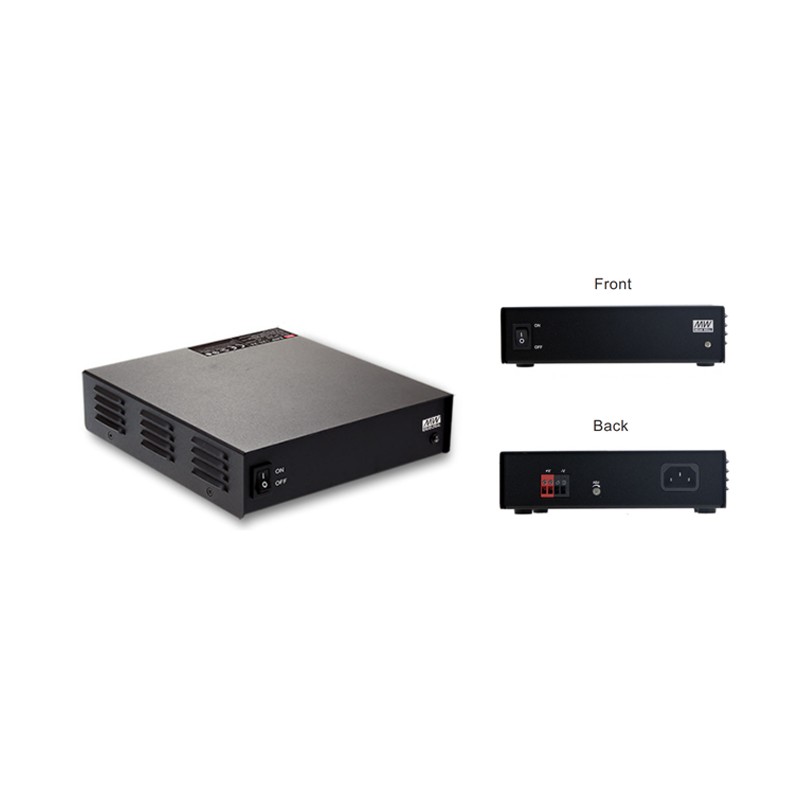

Mean Well charger series ENP-240

Desktop switching power supplies in a compact 7" housing with 240W, a universal input, energy efficiency Level VI and a very low no-load power consumption. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They have a peak load capability of up to 125% and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ENP-240-12, ENP-240-24 and ENP-240-48.

  • single output
  • output: 240,1 to 243W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • no-load power: <0,15W
  • leakage current: <3,5mA
  • overload protection: 110 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1230g

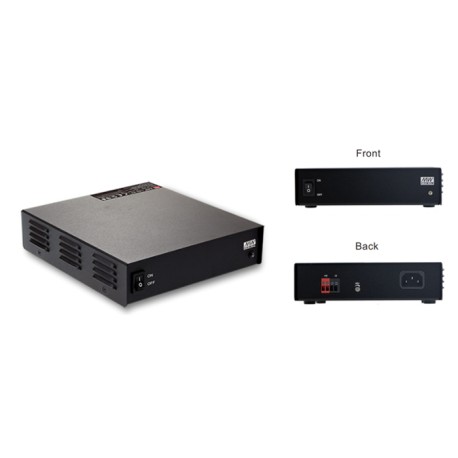

ENP-240-24, Mean Well desktop battery chargers, 240W, energy efficiency Level VI, ENP-240 series

ENP-240-24

244999 ENP-240-24 ENP-240-24 4711287420875 Mean Well charger series ENP-240. Desktop switching power supplies in a compact 7" housing with 240W, a universal input, energy efficiency Level VI and a very low no-load power consumption. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They have a peak load capability of up to 125% and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ENP-240-12, ENP-240-24 and ENP-240-48. single output output: 240,1 to 243W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 75A no-load power: &lt;0,15W leakage current: &lt;3,5mA overload protection: 110 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 1230g

Specifications

manufacturer
Manufacturer's name ENP-240-24
GTIN 4711287420875
Output voltage [V] 27,6
Efficiency [%] 93,5
Output current [A] 8,7
Output voltage tolerance: [%] 1
Output power [W] 240,1
Ripple [mVp-p] 150
Data Sheet

Unit price

68,99 €

Stock: 0
Further delivery:
CW 12/2025
