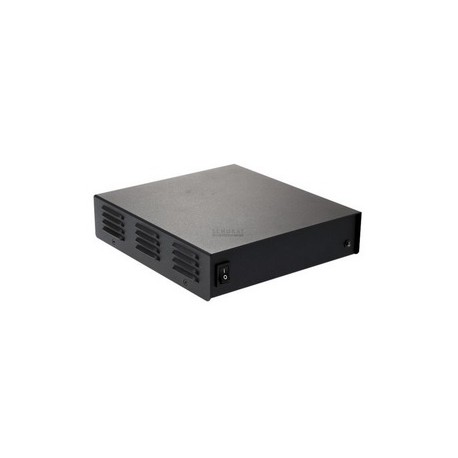

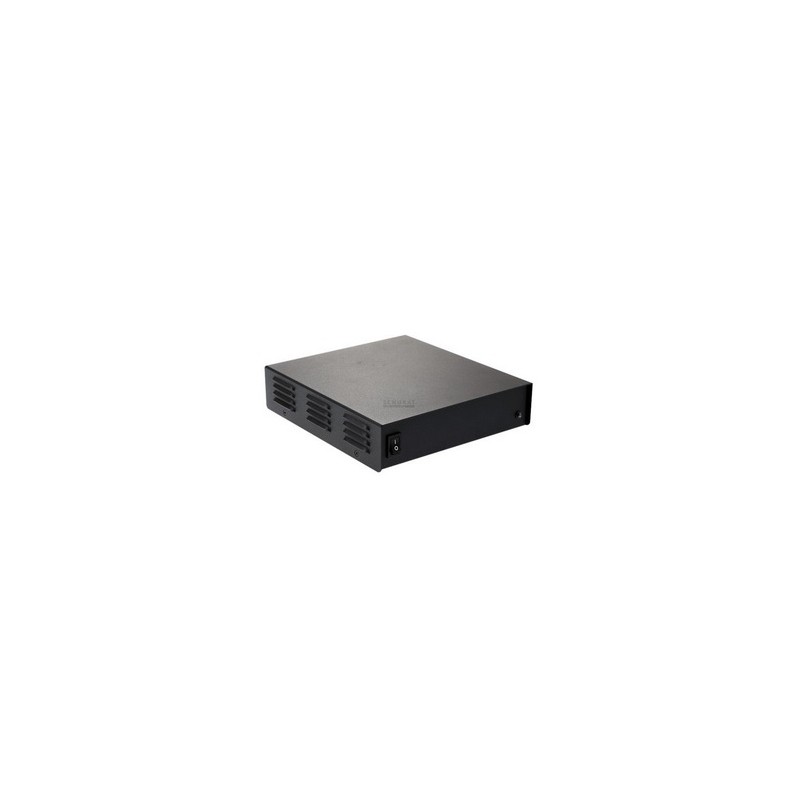

ENP-120-48

Mean Well charger series ENP-120

Desktop type battery chargers in a compact housing (7" width) with 120W, a universal input, energy efficiency Level VI and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: ENP-120-12, ENP-120-24 and ENP-120-48.

  • single output
  • output: 119 to 121W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 65A
  • no-load power: <0,15W
  • leakage current: <3,5mA
  • overload protection: 110 to 125%
  • withstand voltage  I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 980g
ENP-120-series

ENP-120-48

108676 ENP-120-48 ENP-120-48 4711287420707 Mean Well charger series ENP-120. Desktop type battery chargers in a compact housing (7" width) with 120W, a universal input, energy efficiency Level VI and a low no-load power. These devices have a built-in active PFC function and are protected against overload,&nbsp;overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;UL/EN62368-1,&nbsp;EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the&nbsp;following types of this Mean Well series:&nbsp;ENP-120-12, ENP-120-24 and ENP-120-48. single output output: 119 to 121W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 65A no-load power: &lt;0,15W leakage current: &lt;3,5mA overload protection: 110 to 125% withstand voltage&nbsp;&nbsp;I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 980g

Specifications

manufacturer
Manufacturer's name ENP-120-48
GTIN 4711287420707
Output voltage [V] 55,2
Efficiency [%] 91,5
Output current range [A] 0...2,2
Output voltage tolerance: [%] 1
Output power [W] 121
Ripple [mVp-p] 350
Data Sheet

Unit price

51,09 €

Volume discounts

Quantity Unit price
50 + 49,99 €

Stock: 7
Further delivery:
CW 17/2025
